Babycare TENS Elle TENS - Manual (Page 9)

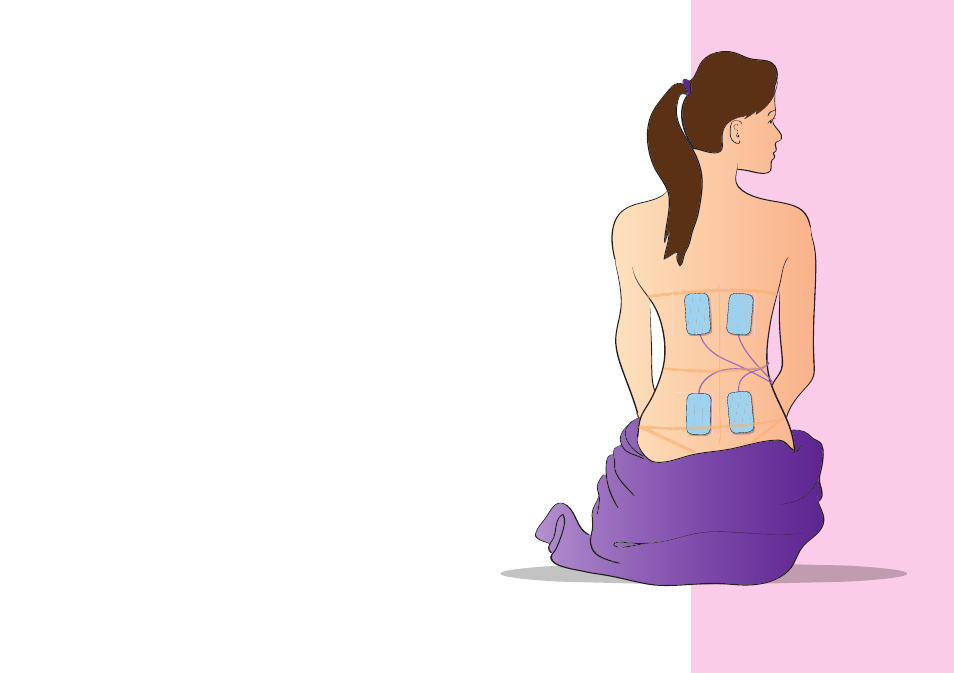

Suggested electrode placement diagram
9
The sticky electrode pads need to be placed in the correct position for
maximum pain relief. It is preferable to obtain assistance from either your
birthing partner or medical adviser when positioning the pads.
Please read the following instructions carefully:
1. Clean the skin thoroughly and allow skin to dry before applying the pads.
2. Carefully peel the pads from the plastic backing using your forefinger and
thumb. Do not pull on the lead wires. Retain plastic backing and pouch for
storage after use.
3. Position the top two pads (connected to the left socket CH1) approximately
4cm either side of the spine and 4-5cm above the imaginary navel line as
seen in the diagram.
4. Position the bottom two pads (connected to the right socket CH2)
approximately 4cm either side of the spine and 4-5cm below
the imaginary navel line as seen in the diagram.
Reference: Cluett E. (1994) SRN RM ADM PGCEA. Analgesia in Labour: A review of the TENS method. Professional Care of Mother and Child. Mar;4 (2): 50-2.
Bra line CH1 CH1
CH2 CH2
Naval line
Panty line
