581396-1.2.doc

SNAP 500 Short Feed Addendum

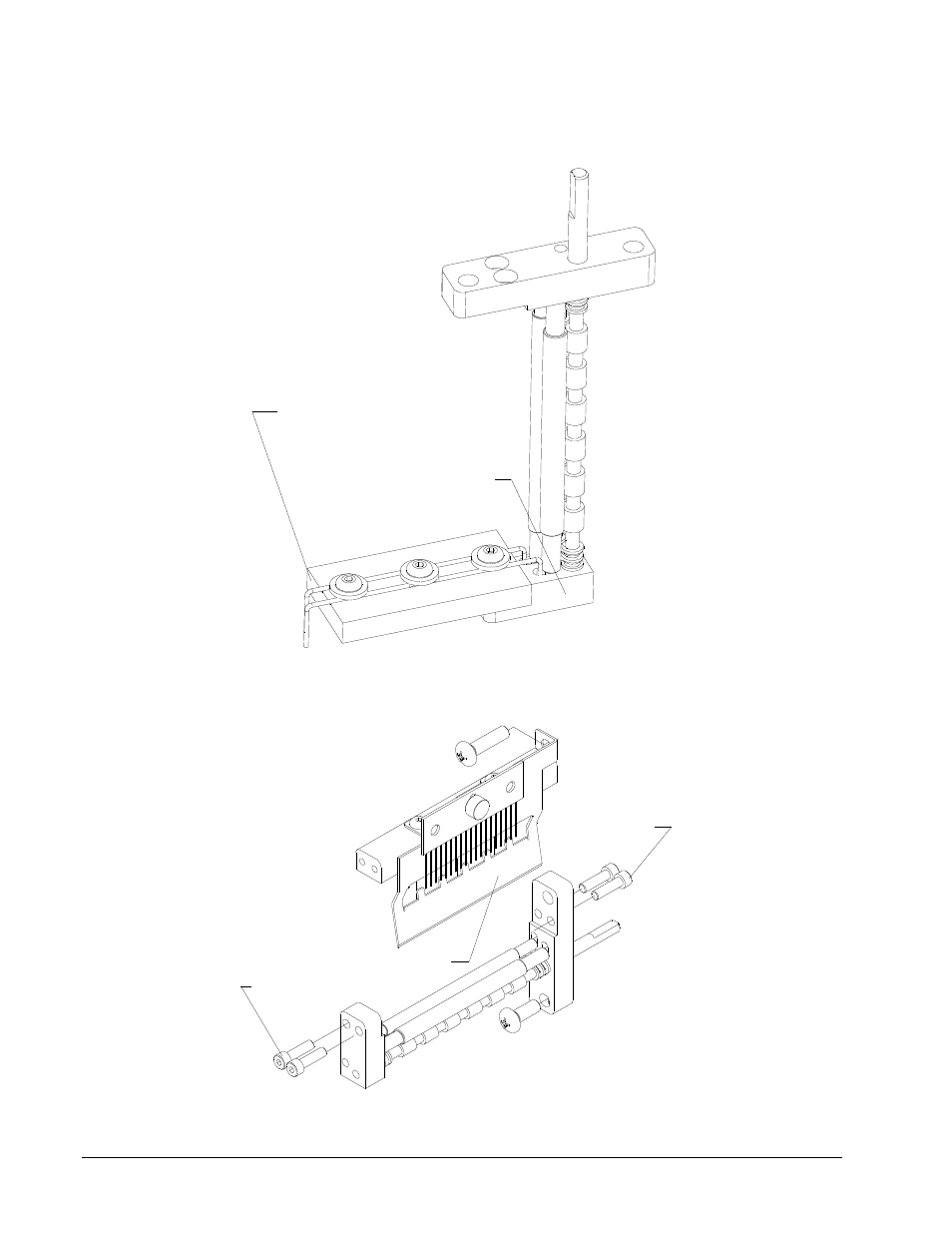

7. Assemble both inner and outer roller brackets with rollers by seating all (4) rollers into the outer roller bracket.
Once seated, remove the spring holder tool.

OUTER ROLLER
BRACKET

SPRING HOLDER
TOOL

8. Re-assemble short feed nip roller assembly. Make sure inner and outer roller brackets are square with respect to
each other (not twisted).

6-32 SHCS

GUARD ASSEMBLY
