SNAP 500 Short Feed Addendum

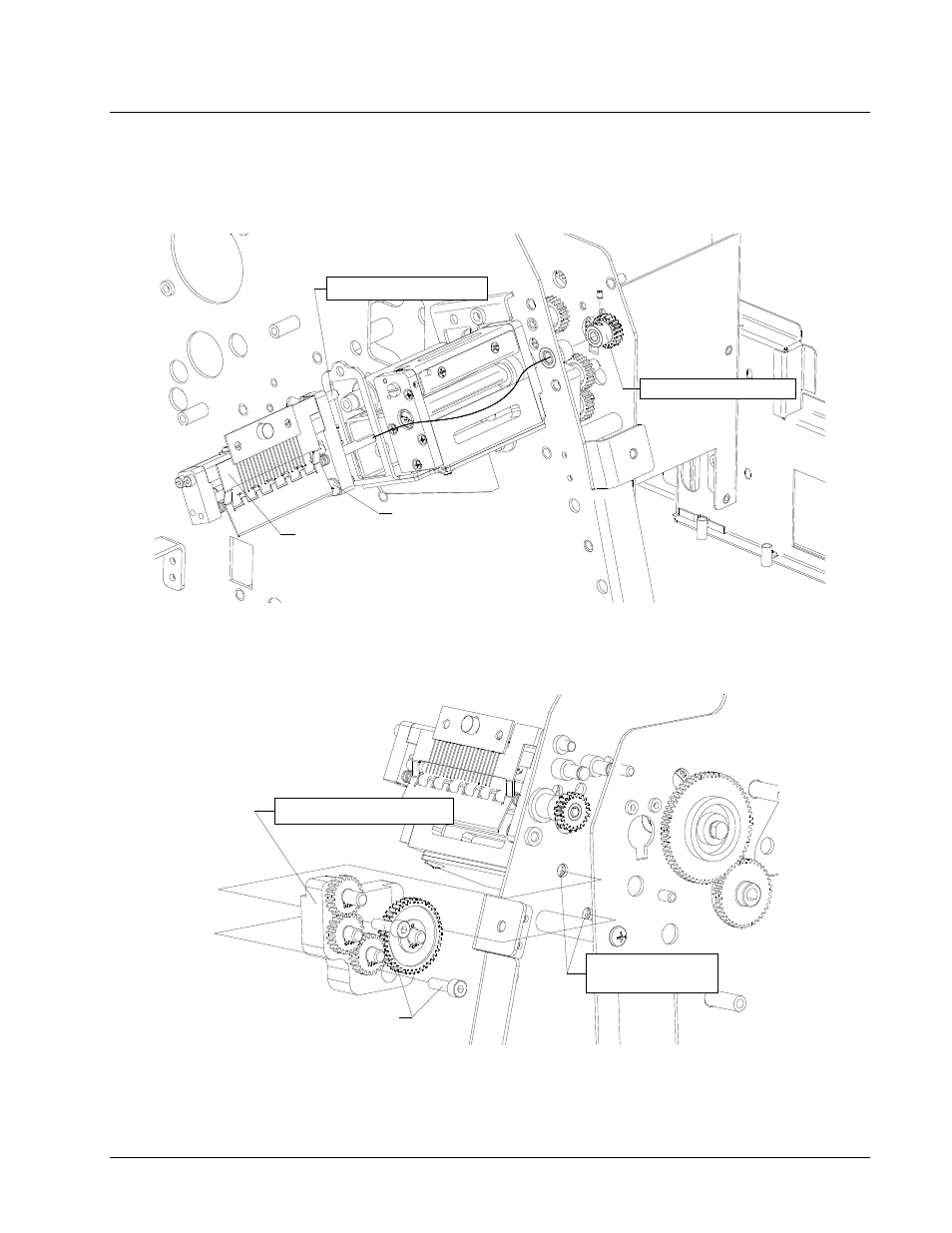

Install Short Feed Nip Assembly

1. Install new nip assembly and secure with new, provided mount screws. Make sure short mount screw is installed on
the bottom of the assembly. This is to clear the new nip gear drive train. Install new 20T nip drive gear.

NEW NIP ASSEMBLY

LONG MOUNT SCREW

SHORT MOUNT SCREW

NEW 20T DRIVE GEAR

2. Install new nip gear drive train as shown below using the (2) kit provided 10-32 mount screws. Use existing knife
mount holes in frame to mount gear chain.

NEW NIP GEAR TRAIN

10-32 MOUNT SCREWS

EXISTING KNIFE
MOUNT HOLES
