Avalon Firestyles Berk and TOL GS Blower - Manual (Page 3)

Fan, DVS F/S GS
Installation Instructions
(sku 99000159)
Page 3 of 6 17601574 - 9/6/13 © Travis Industries, Inc.
2 Remove the cover plate behind the gas control valve used to conceal the hole for the snap disc (see Figure
3). Attach the included snap disc in this location(see Figure 4).

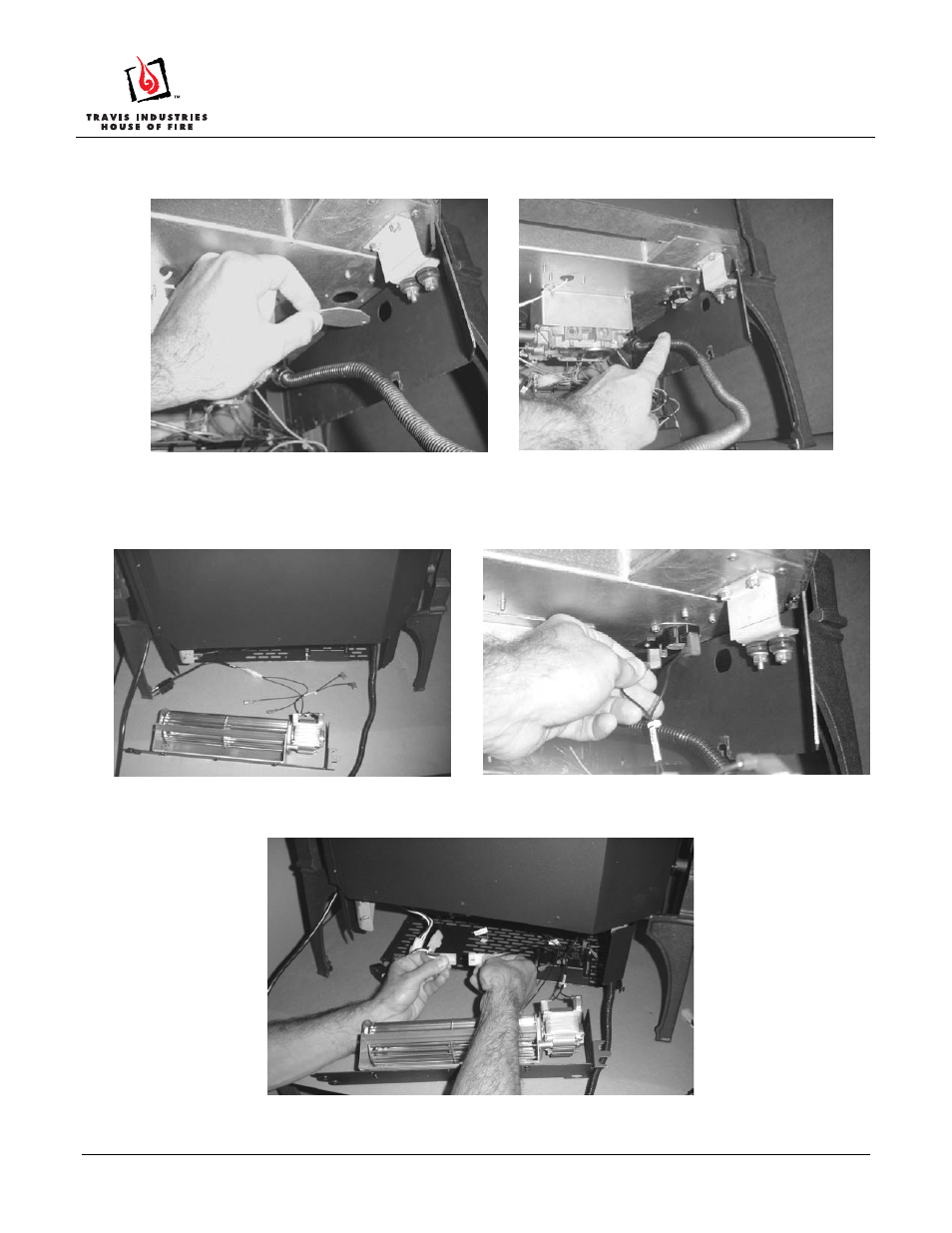

Figure 3 Figure 4
3 Place the blower near the back of the stove and attach the two wires on the wiring harness labeled
“BLOWER” to the blower (orientation does not matter – see Figure 5). Attach the two wires labeled “SNAP
DISC” to the snap disc (orientation does not matter – see Figure 6).
Figure 5 Figure 6
4 Plug the power cord on the wiring harness into the receptacle on the stove (see Figure 7).
Figure 7
