864 HO NB Diamond-Fyre Burner
Installation Instructions
(sku: 96900142)
Page 8 of 13
17601700 — 2/27/14
© Travis Industries, Inc.

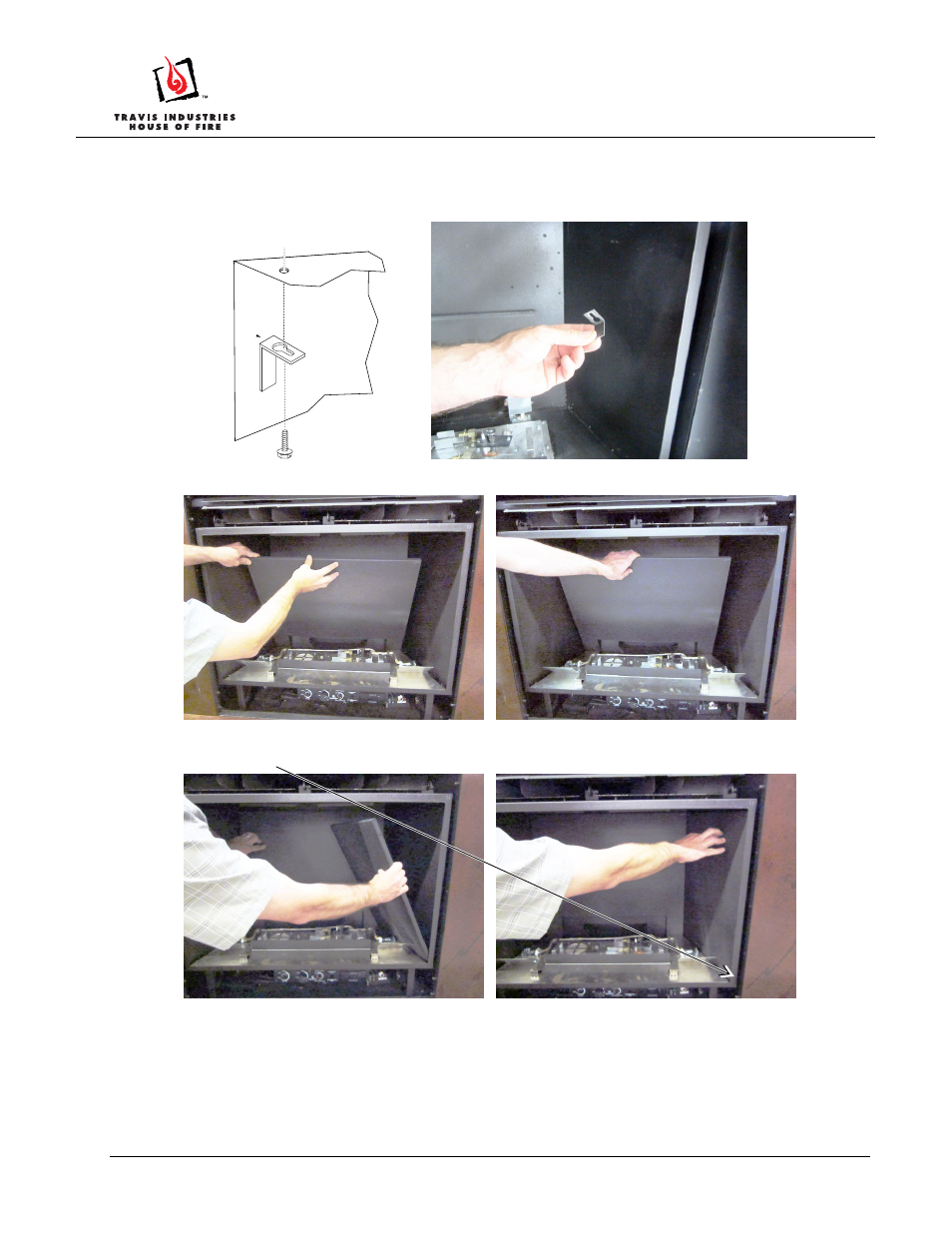

18. Install the firebacks as shown below.
a) Remove the side fireback clips from the firebox ceiling near the front (both sides). The side fireback
clips have a keyhole slot and can be removed by loosening the screw and sliding the clip out.
b) Install the rear fireback.
c) While holding the rear fireback in place, install the side firebacks (both sides).
NOTE: The notch on the side fireback is on the bottom side, facing forward.
d) Replace the clips removed in step (a) to secure the firebacks.
