Avalon Firestyles 864 HO NB Diamond-Fyre Burner User Manual
Page 3
864 HO NB Diamond-Fyre Burner
Installation Instructions
(sku: 96900142)
Page 3 of 13
17601700 — 2/27/14
© Travis Industries, Inc.

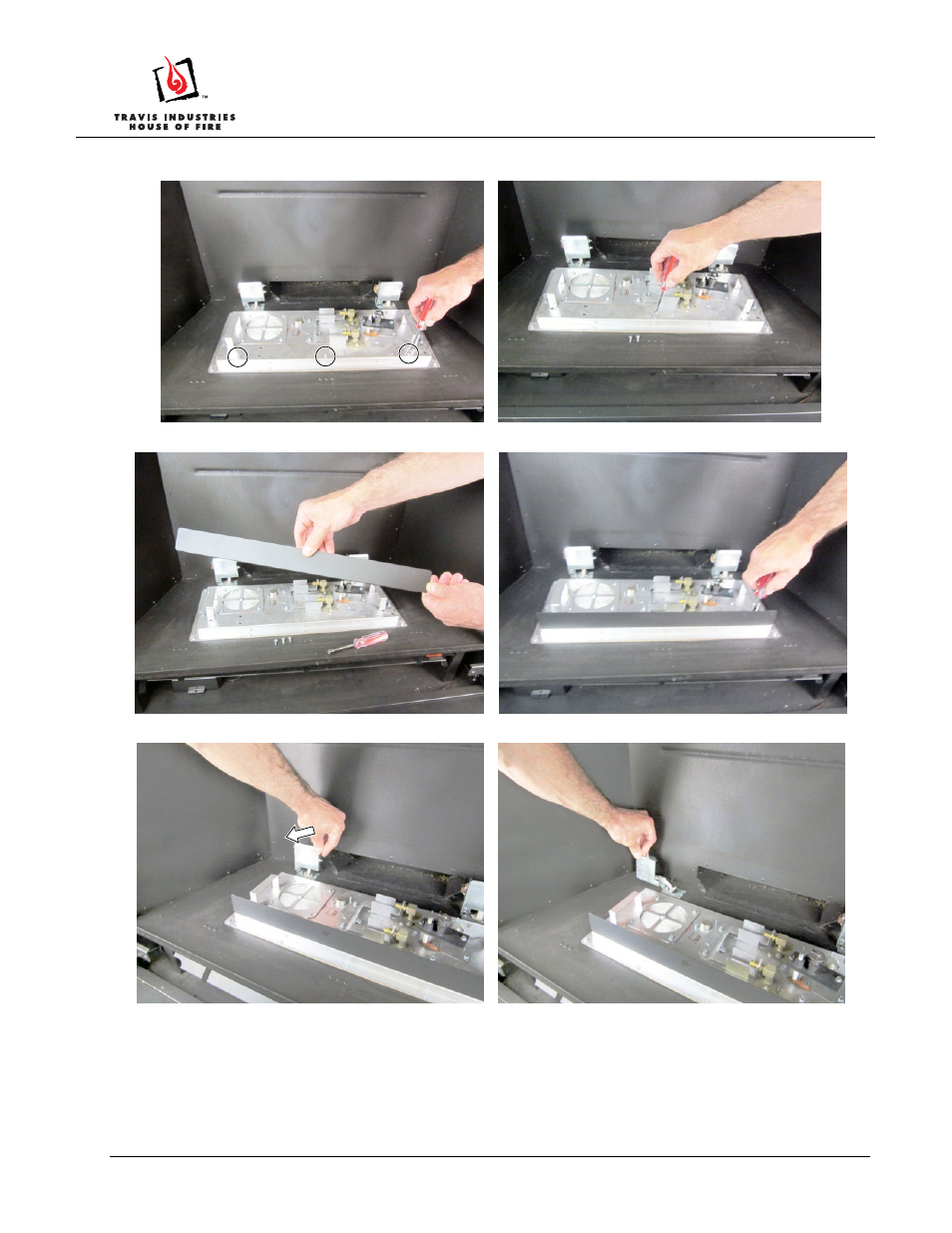

1. Remove the 3 screws from the burner tray (if not already removed – see previous page).
2. Install the burner skirt included with this kit using the 3 screws removed earlier.
3. Bend the left side accent light to the side.
