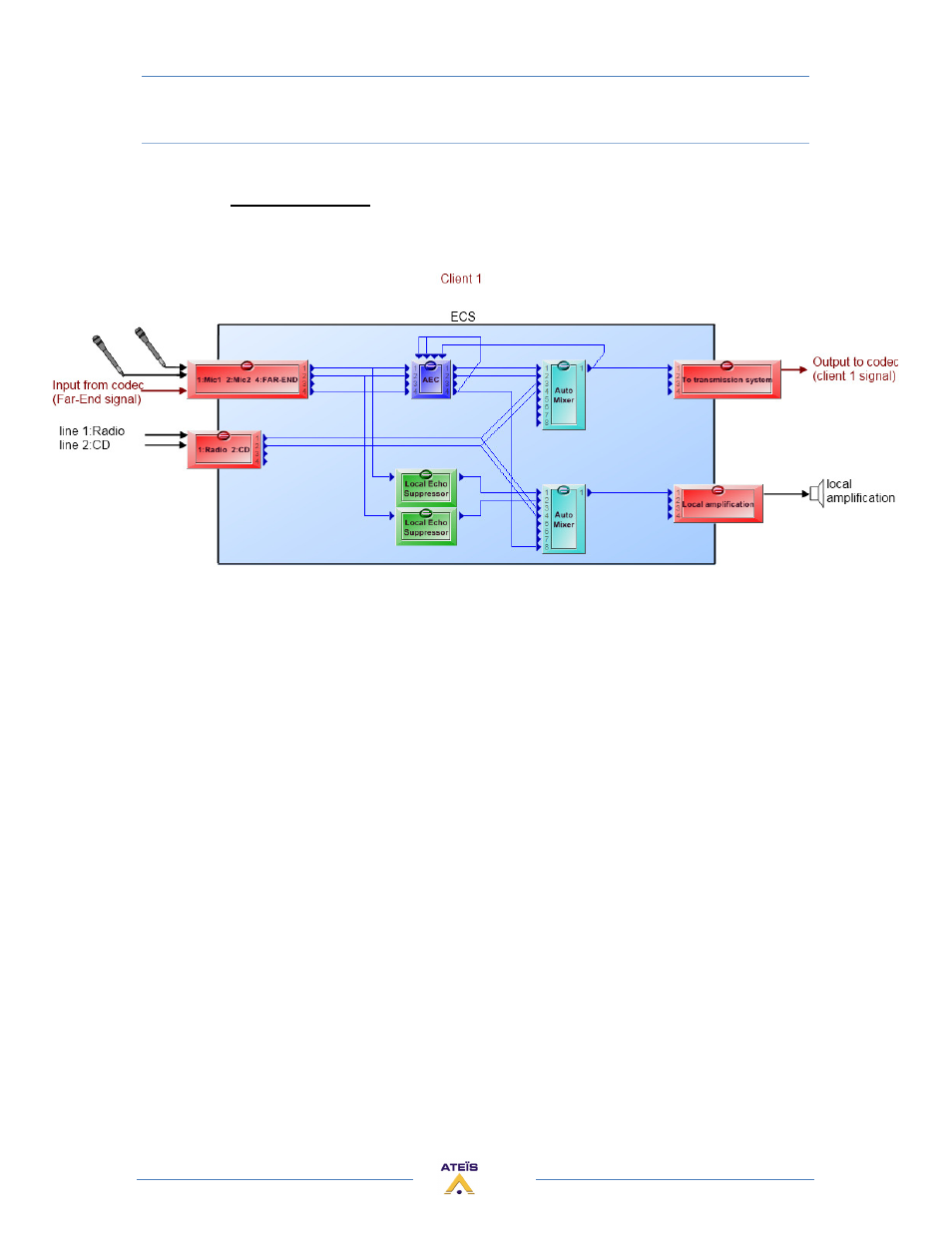

Design in the ECS:
Regarding the complete schematic above, here is the corresponding design which must be
created with Ateïs Studio software.
The AEC component provides four independent channels. As we need one channel for each
microphones signal and one for the far-end signal, the using of one AEC component is enough.
