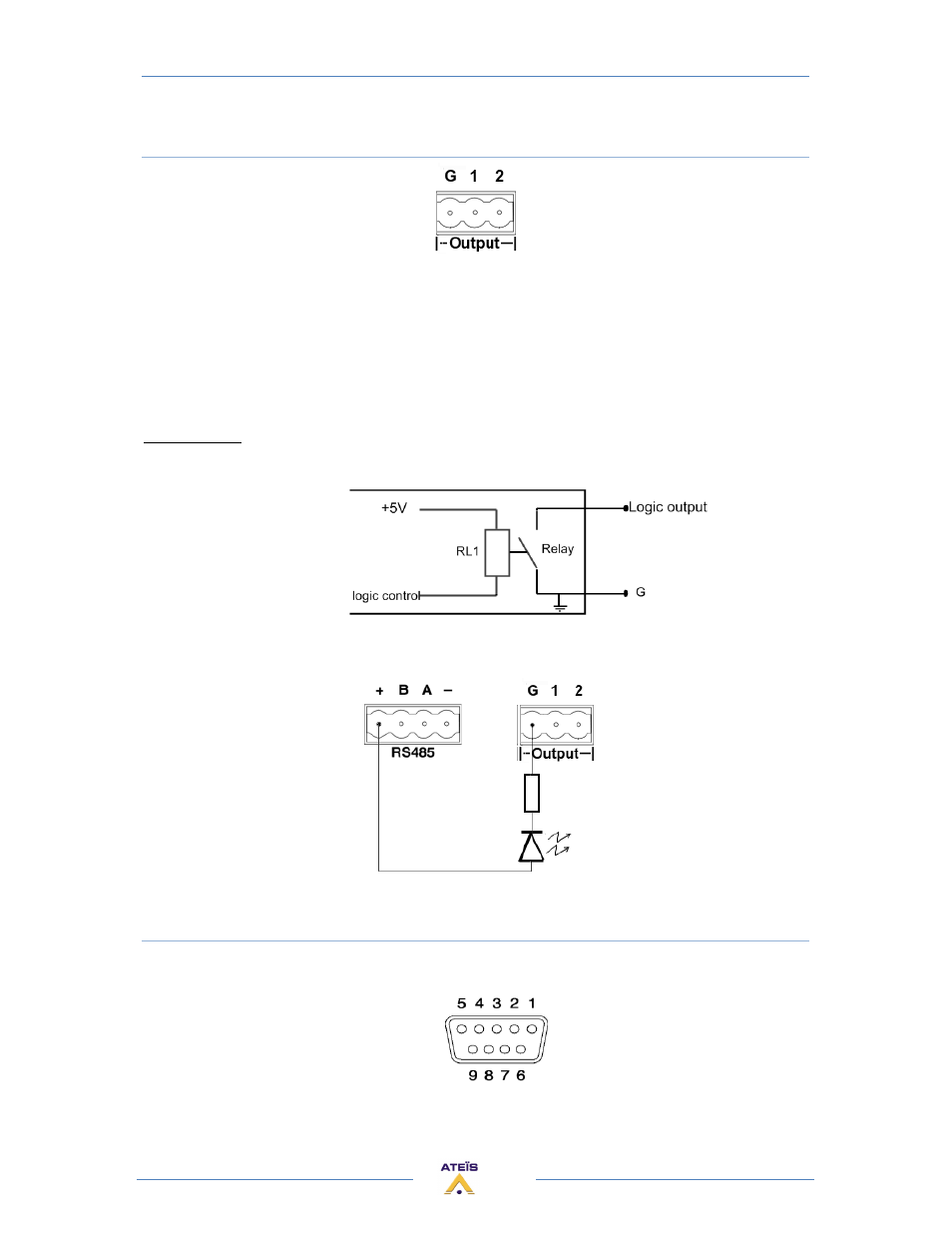

5) LOGIC OUTPUTS CONNECTORS
The Contact closes when the Logic Output is active.
The logic outputs are simple dry contact or relay contact, with a common rail.
The common rail is linked to the ground.
Caution: Do not connect voltage (24V) to the common rail.
No voltage is provided.
Contact rating: (relays EGE type EDR201A0500)
Maximum voltage 100 VDC, Maximum switching current 0.5 amps, Maximum switching power 10VA
If the RS485 bus is unused, then you can easily use the 24V DC output of the ECS to feed 8 LEDS that
each have a 2k2 current limiting resistor.
6) RS232 CONNECTOR
Connect third party device (Crestron, AMX, VITY) to pilot some desired features of your ECS system
by using the Ateïs Third party protocol.
