HARDWARE DESCRIPTION

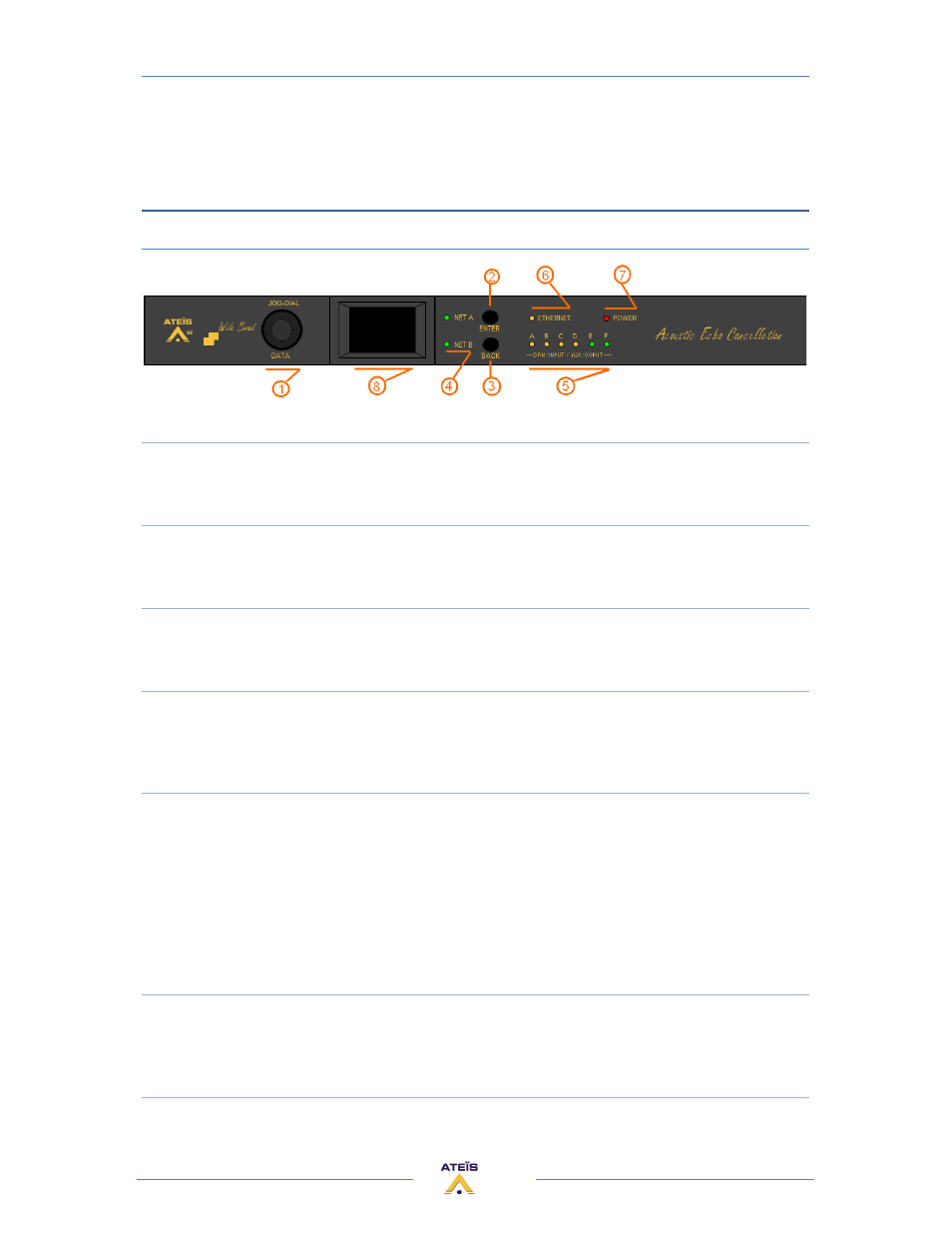

FRONT PANEL
1) JOG-DIAL / DATA
The jog-dial allows navigation in the menu of the ECS screen.
2) ENTER BUTTON
This button is used to enter in a menu or to validate a parameter in the ECS screen.
3) BACK BUTTON
This button is used to go out of a menu or out of a parameter in the ECS screen.
4) NET A / NET B LED
These independent led Light when data are received or sent on the port.
5) CONFIGURABLE AUDIO I/O
Inside the ECS you have 6 audio slots (named A, B, C, D, E and F). Each of these audios slots receives
either 4 audio inputs channels or 4 audio outputs channels. When you switch on the ECS you can see
which kind of audio card is fitted in each slots:
• Green LEDs mean INPUTs
• Yellow LEDs mean OUTPUTs
When a signal passes through an input or an output the corresponding LED will blink.
6) ETHERNET LED
Light when the ECS is connected (on-line) to TCP/IP network.
7) POWER LED
