DI-1162/DI-1162M Remote Access Router
29

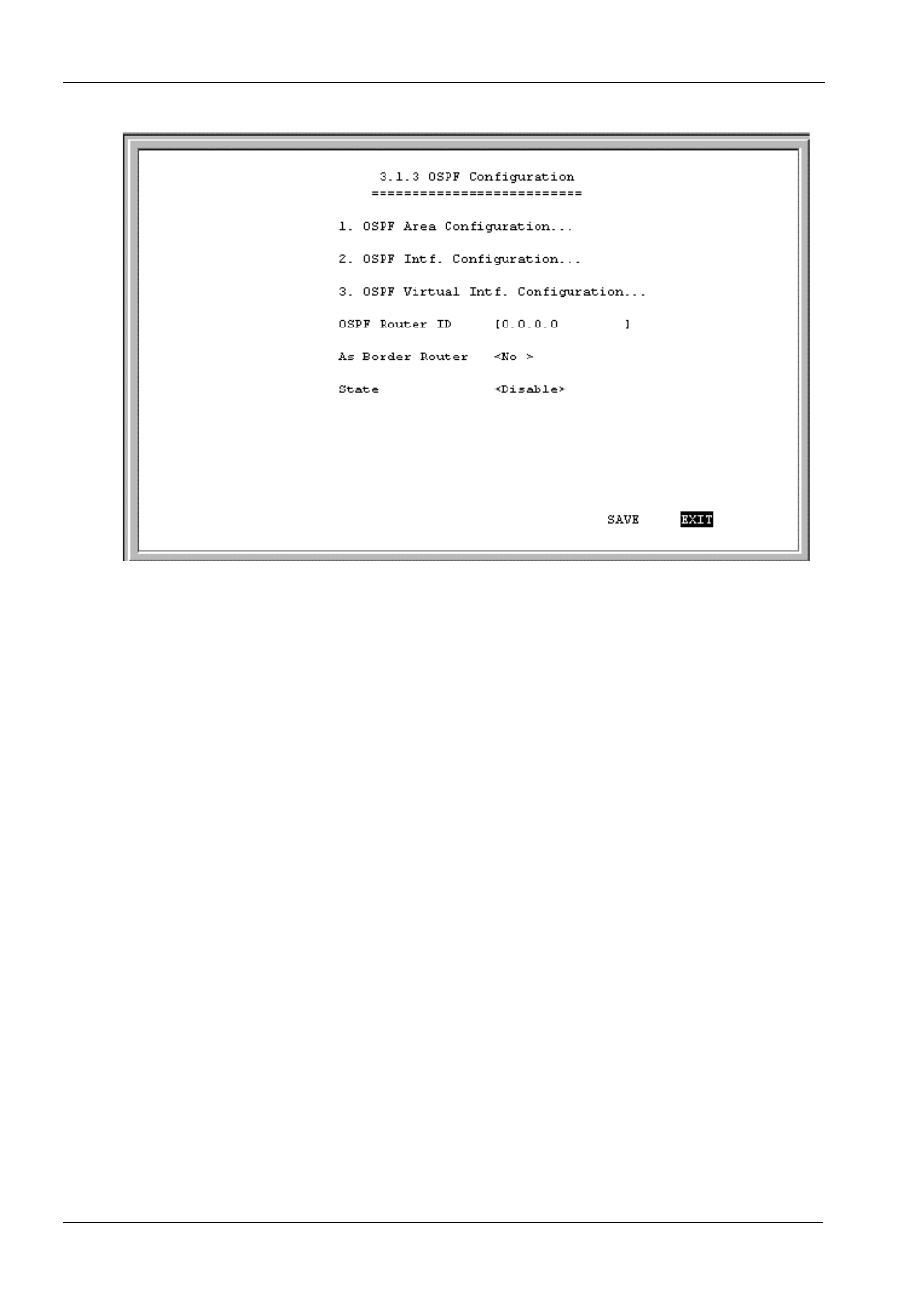

The parameters are described below:
♦
OSPF Router ID – This is a 32-bit number that uniquely identifies the router in the Autonomous System. If
the OSPF Router ID is not configured, the router will automatically choose LAN 1’s IP as the OSPF Router
ID.
♦
AS Border Router – Setting to allow DI-1162/DI-1162M to act as Autonomous System Border Router. As an
AS Border Router, the router can import and export routing information of other Autonomous Systems, such as
RIP.
♦
State – Toggle between Enable and Disable.
OSPF Area Configuration
Select the desired OSPF Router ID to either make changes to or configure for the first time on the OSPF Area
Configuration screen (in which case, the five entries will be blank and all you need to do is press .
