5.2.3. Quick Launch Buttons – Port A, Port B, Port AB
Reconnect
The Port A, Port B, and Port AB buttons on the Quick Launch Buttons allow you
to make configurations for NuTEA-551’s Port A, Port B, and both Port A & B.
Configuration options contain here include the following categories:
¾ Impairment Parameters: You can set NuTEA-551’s impairment parameters
here.
¾ Max Impairment Limit: This configuration option allows you to set
impairment parameters’ limit.
¾ Network Media Setting: You can set both Port A and Port B’s media type
(Half/Full) here.
¾ Filter Setting: The Filter Setting configuration option allows you to set
SDFR and Session filters.
¾ PHY OSC Clock: NuTEA-551 is embedded with Voltage-Controlled Crystal
Oscillator (VCXO), allowing users to adjust to match/jitter its PHY chip’s
frequency within the range of ±100 ppm.

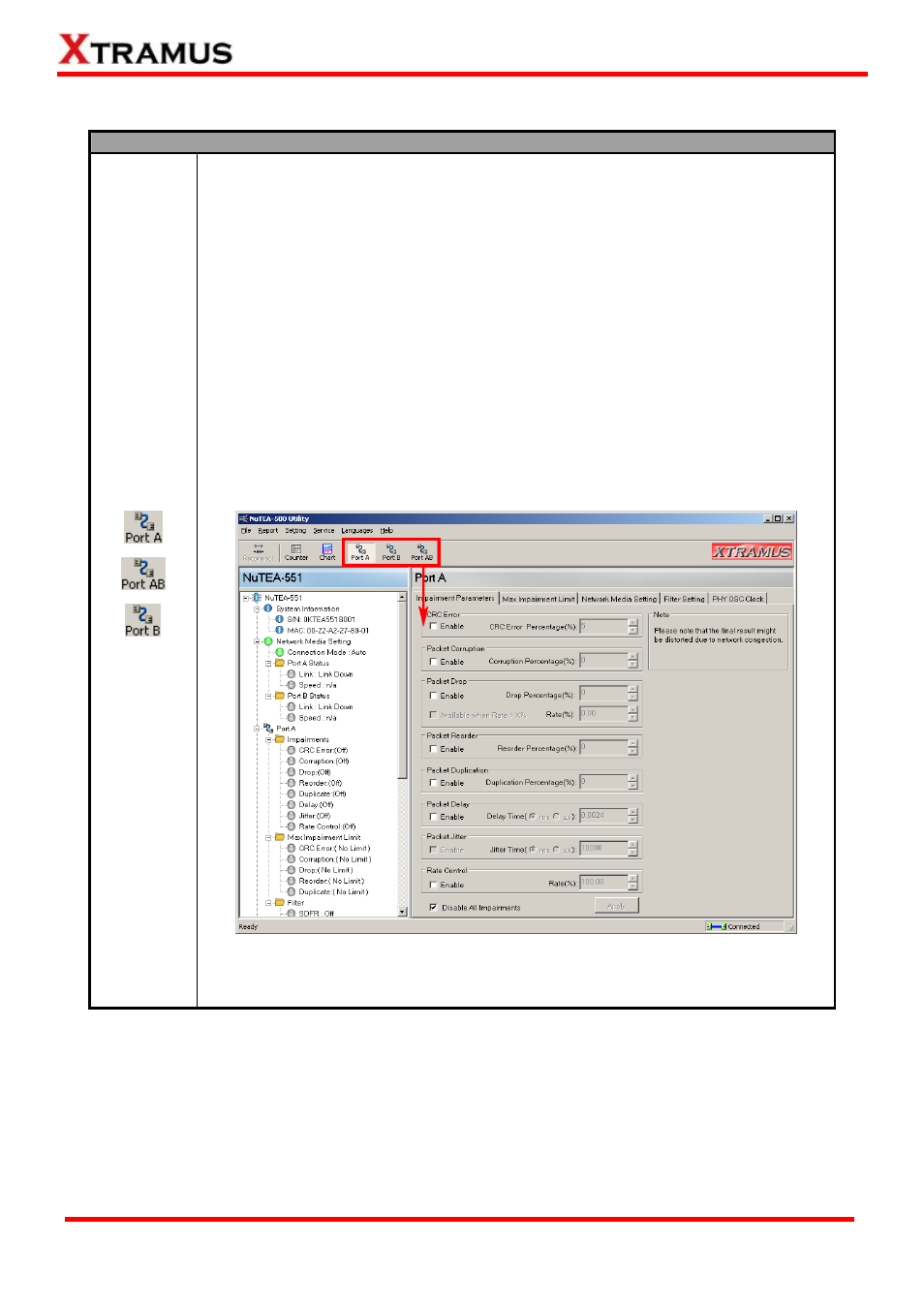

All the configuration options can be viewed and adjusted on NuTEA-551 utility
software’s Main Display Window, as shown in the figure down below.
For more detailed information regarding to setting Port A, Port B, and Port A & B’s
configuration settings and parameters, please refer to 5.4. NuTEA-551 Parameter
Settings.
