Chapter 5: System Setup

VTC 1010 User Manual

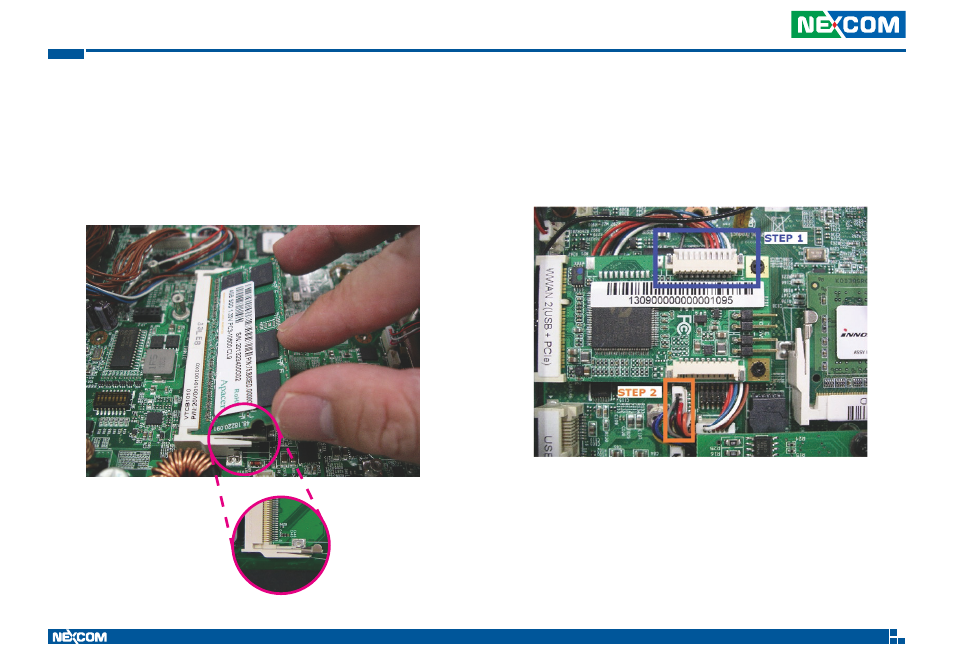

Installing a SO-DIMM

1. Push the ejector tabs which are at the ends of the socket outward. Then

insert the module into the socket at an approximately 30 degrees angle.

Apply firm even pressure to each end of the module until it slips down
into the socket. The contact fingers on the edge of the module will
almost completely disappear inside the socket.

Ejector tab

Installing a Capture Card

Model: Yuan SC330 N4

1. Connect capture card cable onto the capture card.

2. Connect capture card cable to the J5 connector on VTC 1010.
