Chapter 3: Jumpers and Switches
VTC 1010 User Manual

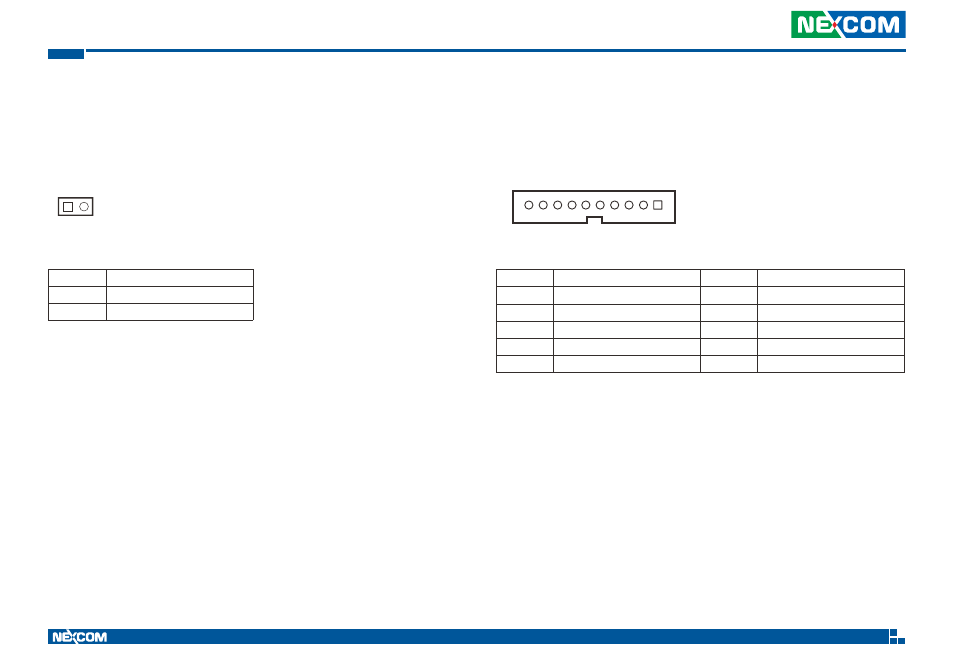

External Thermal Sensor Module
Connector size: 1 x 2 = 2-pin header
Connector location: JP7
Pin Definition
1 Sensor
2 Sensor
1 2 1 10
Debug 80 Port Connector
Connector size: 1 x 10 = 10-pin header (1.0mm)
Connector location: J15
Pin Definition Pin Definition
1 GND 2 PCIRST#
3 33M_CLK 4 LPC_FRAME#
5 LPC_AD3 6 LPC_AD2
7 LPC_AD1 8 LPC_AD0
9 VCC3 10 VCC3
