Chapter 3: Jumpers and Switches
VTC 1010 User Manual

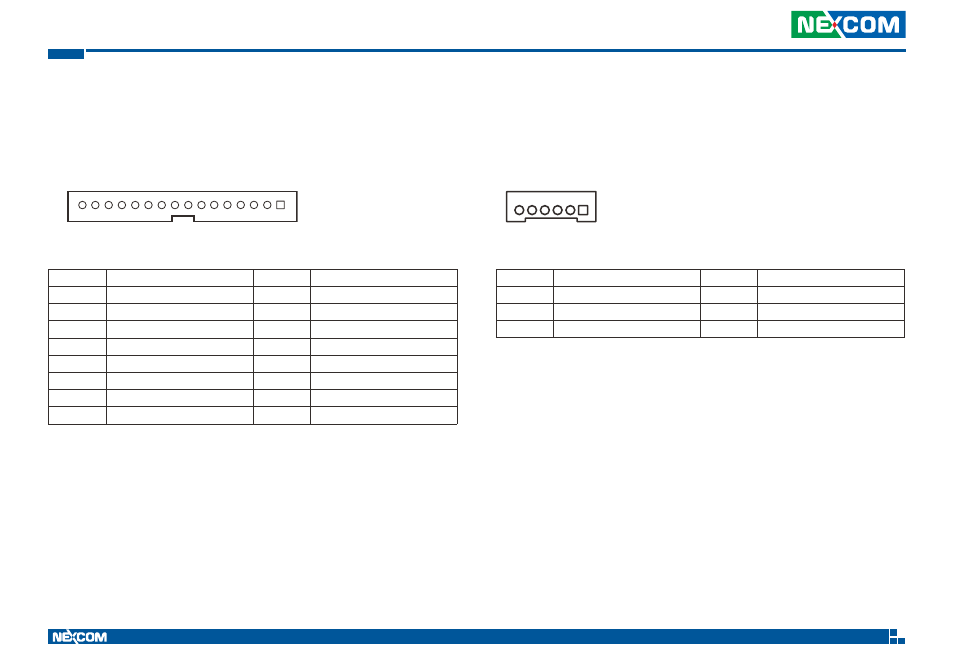

PCIe Connector
Connector size: 1 x 16 = 16-pin header
Connector location: J19
Pin
Definition
Pin
Definition
1
GND
2
PCIE_CLKN
3
PCIE_CLKP
4
GND
5
PCIE_RXN
6
PCIE_RXP
7
GND
8
PCIE_TXN
9
PCIE_TXP
10
GND
11
USBHUB_3N
12
USBHUB_3P
13
GND
14
PLTRST
15
EXP_Disable
16
GND
1
16
Expand Connector
Connector size: 1 x 6 = 6-pin header
Connector location: J20
Pin
Definition
Pin
Definition
1
GND
2
GND
3
GND
4
12VSB
5
12VSB
6
12VSB
1
6
