step 5
Parking light flash
There are several different types of parking light circuits. The
following description is for a standard positive-triggered parking
light circuit, only. If the web vehicle information suggests a (-)
parking light circuit, the fusible jumper (under the sliding door
on the control module) must be moved to the opposite position.
The default position for this jumper is for a positive parking
light. Refer to the LED test probe procedures if you have a negative
parking light circuit.
note: When parking lights are connected, they will flash
for the whole time that remote start is active.
➜

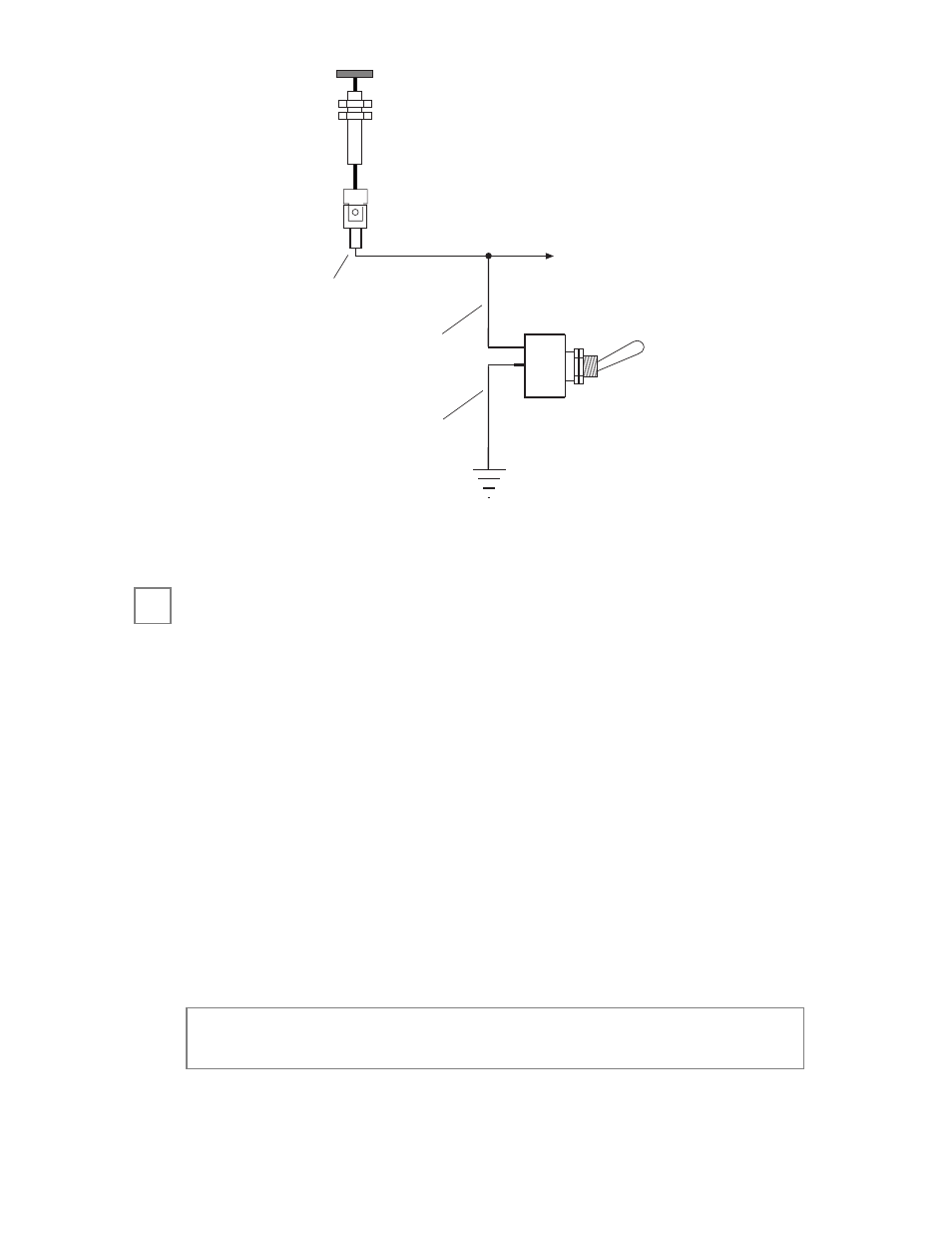

BYPASSED WHEN CLOSED
BYPASS
TOGGLE
SWITCH
TO GRAY (H1/5) WIRE
ON
CONTROL MODULE
HOOD PIN SWITCH -
OPEN WHEN HOOD IS CLOSED
HOOD PIN SWITCH -
CONNECTOR
GRAY WIRE
BLACK WIRE
