step 1
Ground Wire
The BLACK (H1/5) wire on the main 8-pin harness is ground.
First strip back a ¾-inch section of the insulation off the BLACK
wire and crimp a ring terminal (not provided) to that wire.
Locate a clean, paint-free metal surface in the drivers kick panel.
Using a self-tapping screw, drill the screw with the ring terminal
to the metal area. Once screwed down, pull on the wire to ensure
a good connection.

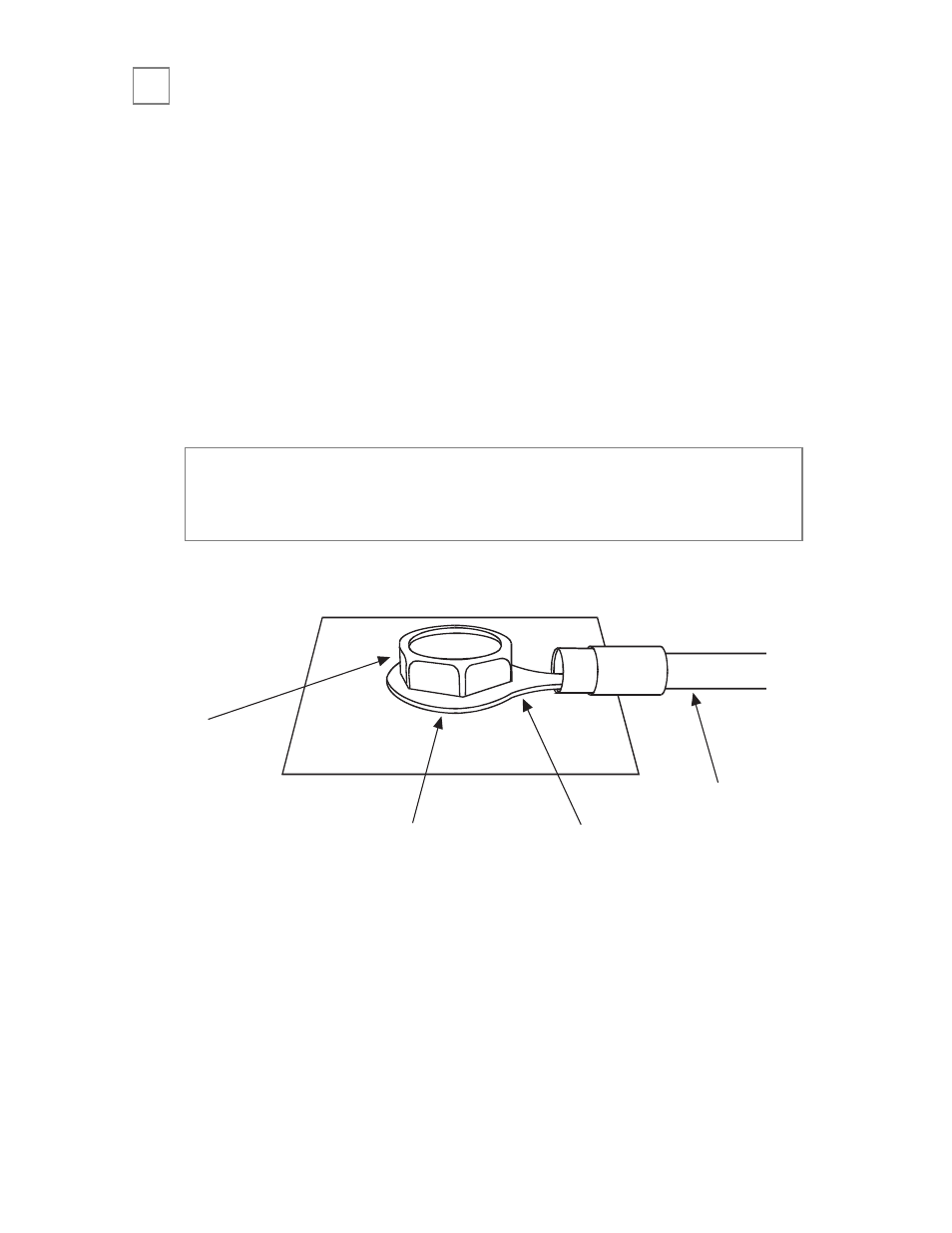

SELF-TAPPING
BOLT OR SCREW
RING
TERMINAL
GROUND
WIRE
NOTE: REMOVE ANY PAINT
BELOW RING CONNECTOR
DIA-591
note: More problems are attributed to poor ground con-
nections than any other cause. Take extra care to ensure
the ground is a clean metal-to-metal contact and secure.
➜
