Altera USB-Blaster II User Manual
Page 7
Chapter 1: Setting Up the USB-Blaster II Download Cable
1–3
Installing the USB-Blaster II Driver on Windows 7/8 Systems
October 2014
Altera Corporation
USB-Blaster II Download Cable
User Guide
Installing the USB-Blaster II Driver on Windows 7/8 Systems
You must have system administration (administrator) privileges to install the
USB-Blaster II download cable drivers.
The download cable drivers are included in the Quartus II software installation.
Before you begin the installation, verify that the USB-Blaster II driver is located in
your directory: \
1. Connect the download cable to your computer’s USB port.
When plugged in for the first time, a message appears stating Device driver
software was not successfully installed
.

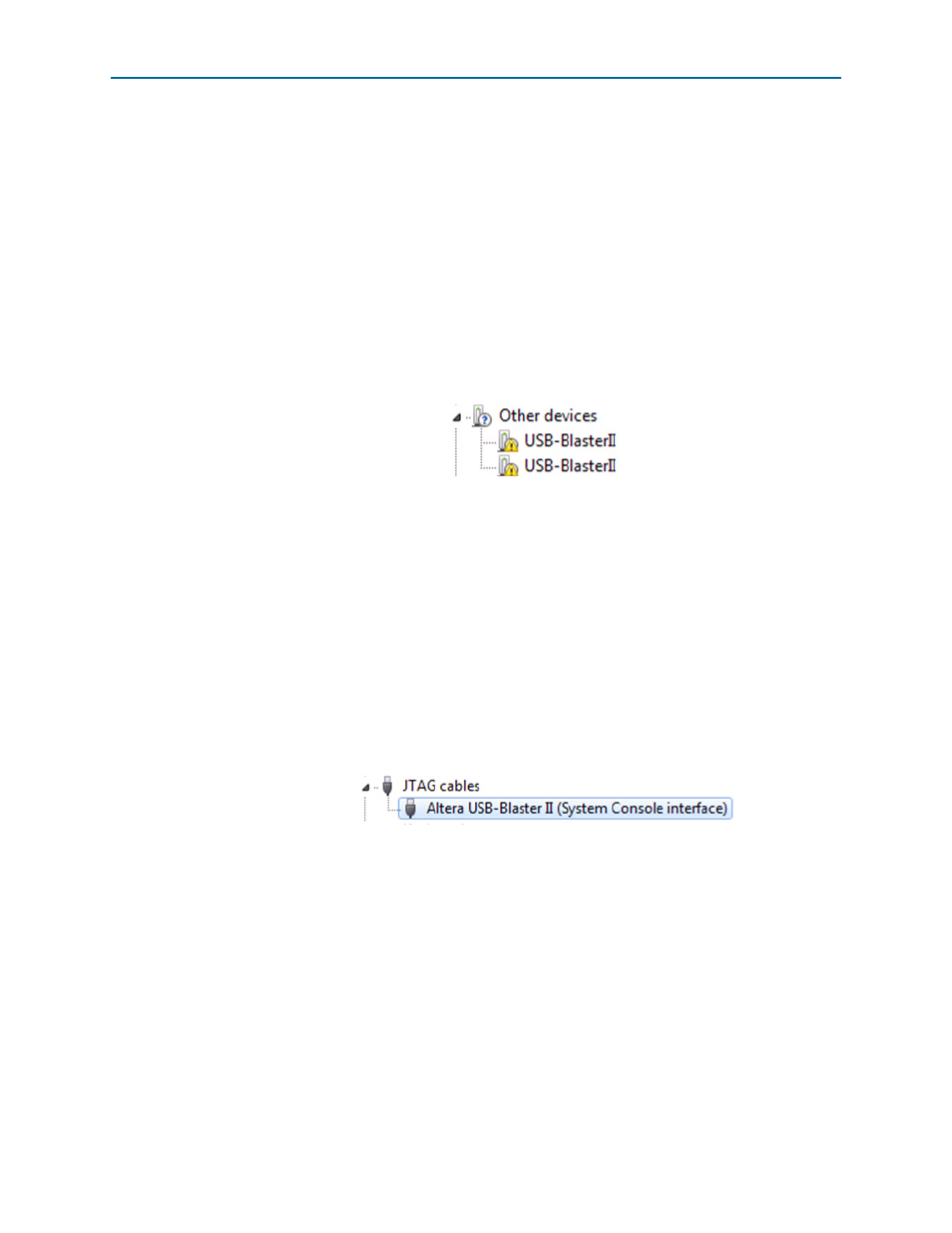

2. From the Windows Device Manager, locate Other devices and right-click the top
USB-BlasterII
.
You need to install drivers for each interface: one for the JTAG interface and one
for the System Console interface.
3. On the right-click menu, click Update Driver Software. The Update Driver
Software - USB BlasterII
dialog appears.
4. Click Browse my computer for driver software to continue.
5. Click Browse… and browse to the location of the driver on your system:
\
6. Click Next to install the driver.
7. Click Install when asked if you want to install.
You should now have a JTAG cable showing in the Device Manager.
8. Now, install the driver for the other interface. Go back to step 2 and repeat the
process for the other USB-BlasterII device.
When you are finished, you will have added Altera USB-Blast II (JTAG interface)
under JTAG cables.
Installing the USB-Blaster II Driver on Linux Systems
For Linux, the USB-Blaster II download cable supports Red Hat Enterprise 5 and
above.
