4
ENGLISH

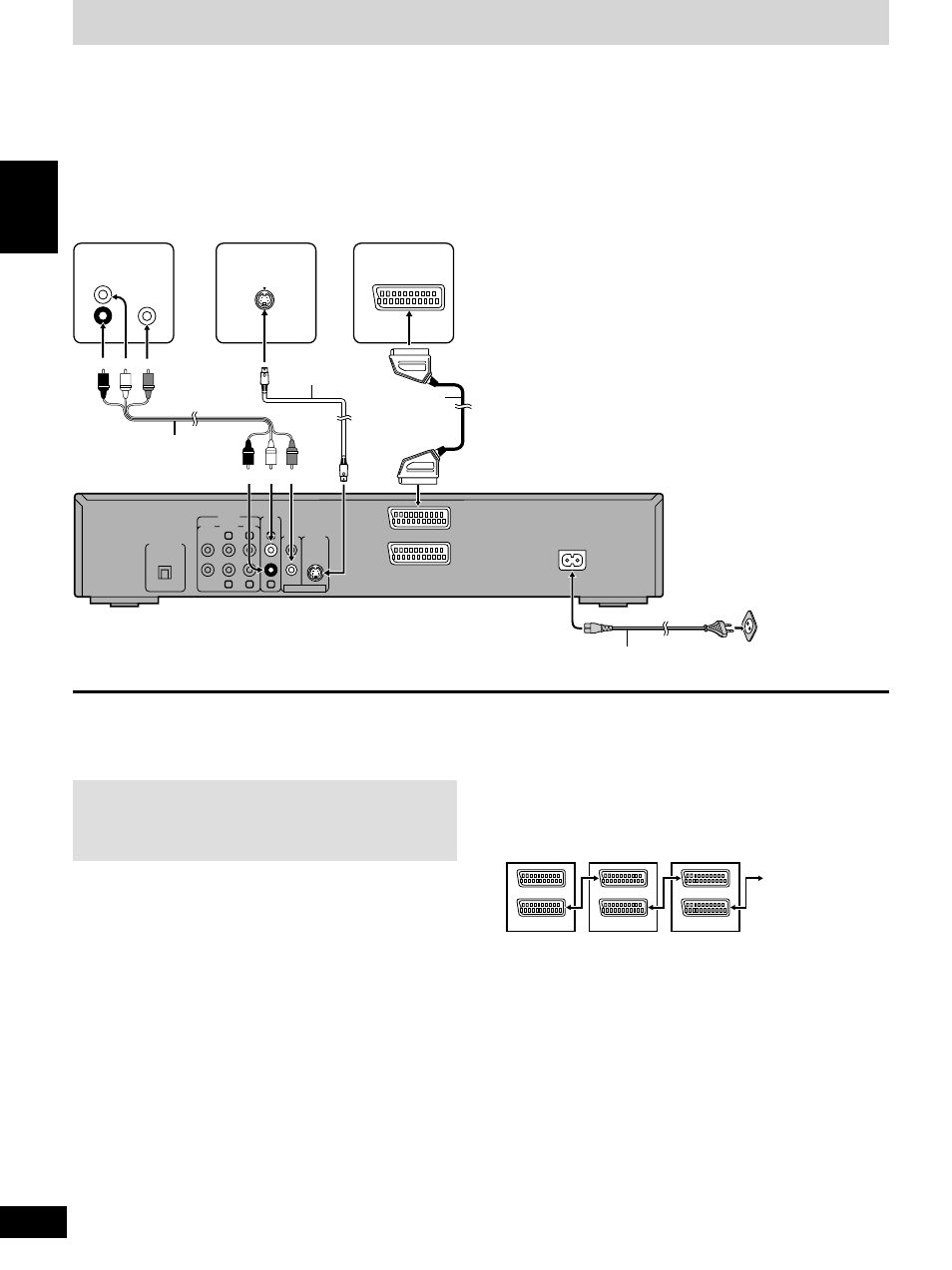

Connection to a television
Although the audio on most DVDs is designed to be played through six speakers and this unit’s factory settings assume this setup, the following
describes connections that allow you to enjoy sound through your television’s speakers. To get the full benefit from the powerful 5.1-channel audio
found on DVDs, you should connect an amplifier and six speakers (
➡ page 16).
Before connection
≥ Disconnect the AC mains lead.
≥ Refer to the television’s operating instructions.
SCART terminal
≥ To improve picture quality, you can change the video signal output
from the AV1 terminal from “Video” to either “S-Video” or “RGB” to
suit the type of television you are using (
➡ page 18, Video—AV1
Output).
≥ You can also connect other equipment to AV2.
S VIDEO OUT terminal
The S-video terminal achieves a more vivid picture than the VIDEO
OUT terminal by separating the chrominance (C) and luminance (Y)
signals. (Actual results depend on the television.)
Connect Your Unit Directly To Your Television.
Do not connect the unit through your video cassette recorder
when setting up your home entertainment system, because
the picture may not be played correctly due to the copy guard.
AV2
AV1
AV2
AV1
TV
VCR
This unit
Video
cassette
recorder
SCART terminal
of television
Satellite receiver
or decoder
DIGITAL OUT
(PCM/BITSTREAM) AC IN
OPTICAL
5.1ch
AUDIO OUT
L
2ch
AUDIO OUT
VIDEO
OUT
S-VIDEO
OUT
CENTER
SUB-
WOOFER
FRONT SURROUND
AV1
AV2
L L
R R R
AUDIO
IN
L
R
VIDEO
IN VCR
SCART
IN
S VIDEO
Audio/video cable (included)
AC mains lead (included)
red white yellow
Connection to AUDIO IN
also necessary (see left)
21-pin SCART
cable
(not included)
S video cable
(not included) red white yellow
