Vortech 1997-2001 5.2L/5.9L Durango/Dakota - Manual (Page 26)

P/N: 4CE020-010
© 2000 Vortech Engineering, Inc.
All Rights Reserved, Intl. Copr. Secured
18AUG00 V 2.1
(Dodge 5.9L Durango/Dak-2)
16
H. From the engine compartment, remove
(pull out) the grommet in the firewall that
surrounds the transmission gear select
cable. Use a razor blade to carefully slit the
grommet and temporarily remove it from
the cable.
I. Cut the center of the grommet out to make
room for the vacuum line and harness that
must attach to the Vortech SFIC which will
be located under the dash (see
Figure
13B-d ).
J. Remove the panel covering the steering
column. Drill two 1/4” holes as shown in
photo. Mount the Vortech SFIC and se-
cure with the supplied 1/4” bolts and nyloc
nuts. (See
Figure 13B-c .)
K. Using the supplied 5/32" TEE, tap into the
previously installed ignition vacuum line.
Connect the wires and vacuum line for the
SFIC. Attach the black wire to ground.
Connect the red wire to the interior fuse
panel cavity #3 (ABS) with the special mini
fuse tap and female connector provided.
Route the brown wire, two injector har-
nesses and vacuum line out into the en-
gine compartment. Connect the brown wire
to the negative wire going to the coil
(white wire to the Crane ignition box).
Attach the two injector harnesses to the
supplementary injectors (plugs are inter-
changeable and reversible). Connect the
vacuum line to the manifold (TEE into the
bypass valve hose).

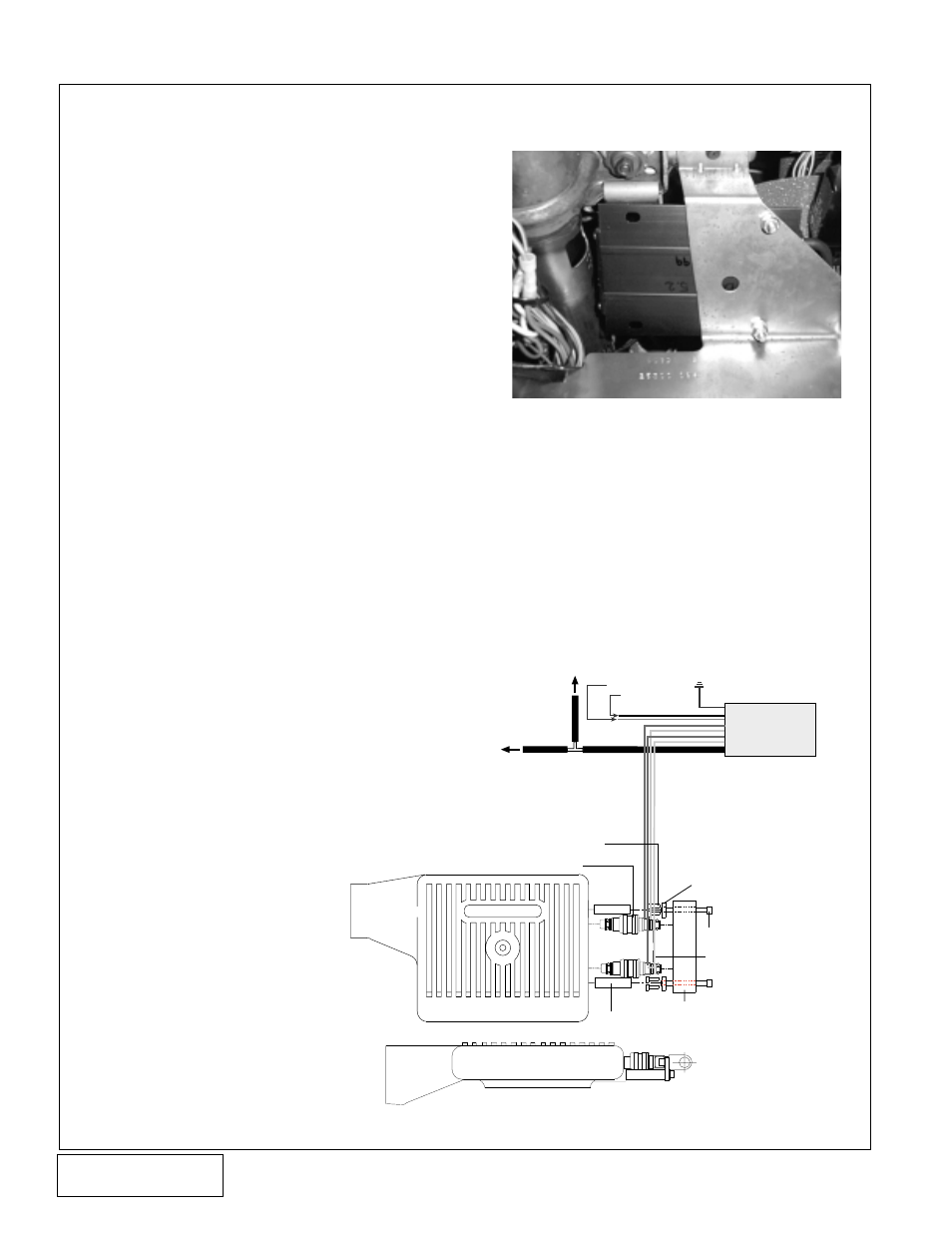

13B. SUPPLEMENTARY FUEL INJECTION COMPUTER (SFIC) AND RELATED
SYSTEM, cont'd. (1996 Dakota/1996-99 Ram only)
Figure: 13B-c
Figure: 13B-d
VORTECH
TOP VIEW (EXPLODED)
(2) SUPPLEMENTARY
FUEL INJECTORS
(4) #8 X 1/2 SCREW
(2) 1/4 X 2-3/8
BOLTS
(1) SUPPLEMENTARY
FUEL RAIL
(2) FUEL RAIL
MOUNTING TABS
(2) INJECTOR
RETAINERS
(2) FUEL RAIL
SPACERS
FRONT VIEW (ASSEMBLED)
BYPASS VALVE
MANIFOLD
VACUUM
SFIC
RED TO
FUSE BOX
BROWN TO
WHITE WIRE
ON CRANE BOX
