Vortech 1997-2001 5.2L/5.9L Durango/Dakota User Manual

Page 15

P/N: 4CE020-010

18AUG00 V 2.1

(Dodge 5.9L Durango/Dak-2)

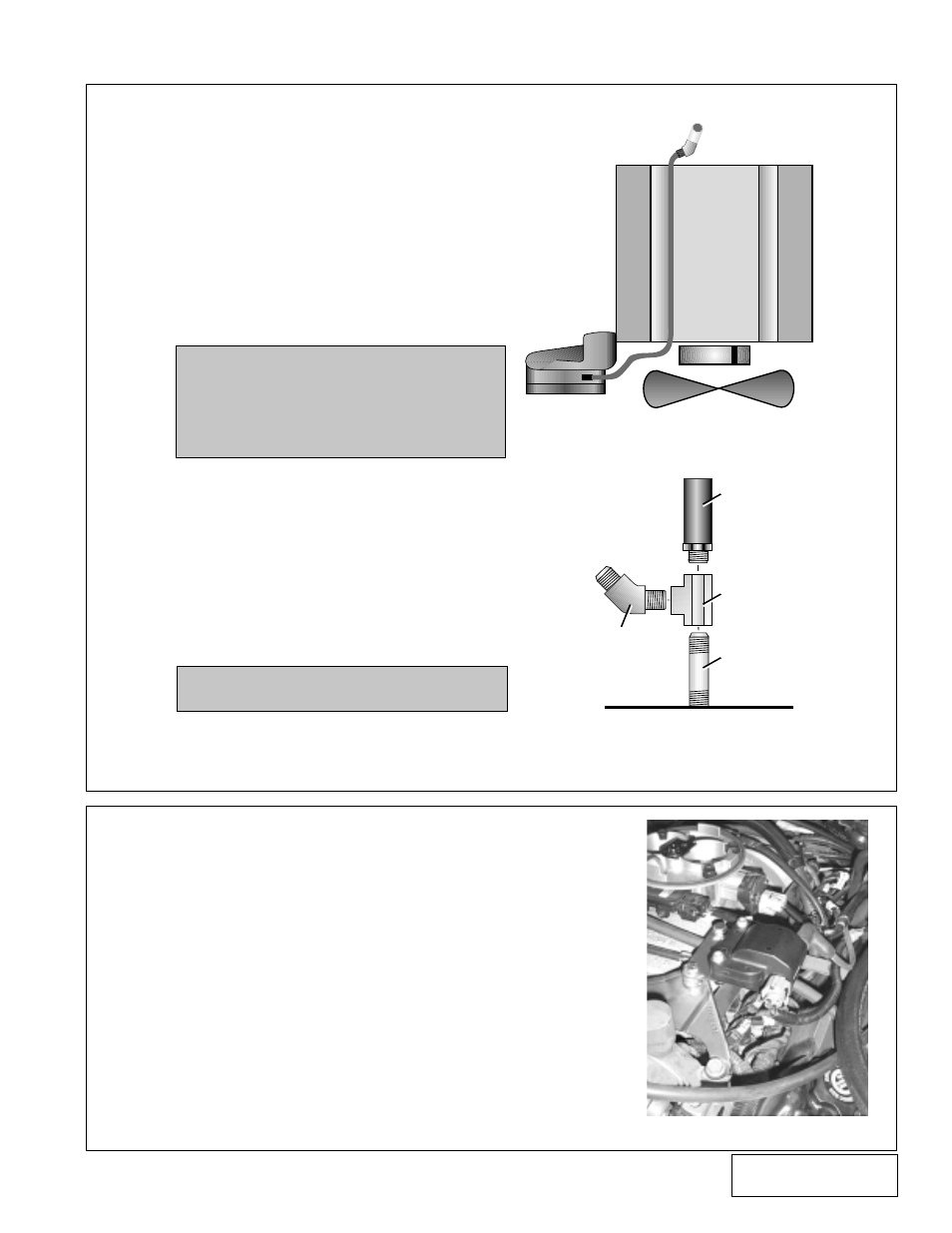

5. OIL FEED LINE

A. Disconnect and remove the oil pressure

sender from the engine. The sender is
found at the rear of the intake manifold to
the right side of the distributor.

B. Install the supplied nipple and tee fitting

into the block and place the sending unit in
the upper end. Install the 45

fitting in the

side port and orient the assembly so that
it points forward and slightly outward to-
wards the passenger's side (see

Figure

5-a

). Reconnect the pressure sender con-

nector.

C. Attach the preassembled oil hose onto the

fitting. Route the hose forward along the
inside of the right valve cover. Be careful
not to rest the oil hose or ignition wires on
the EGR tube at the rear of the head.

D. Before connecting the other end of the

hose to the supercharger, briefly crank
over the engine in order to purge the line
with oil and remove any contaminants
from the line. Use a drain pan or coffee can
to catch the oil.

E. Place the 45

union fitting into the super-

charger fitting. Connect the hose to the
45

fitting.

OIL SENDING UNIT
45

x 1/8" FITTING

ENGINE BLOCK

1/8" NPT
NIPPLE

STOCK OIL
PRESSURE
SENDING
UNIT

x 1/8"

FITTING

6. IGNITION COIL RELOCATION

A. Remove the ignition coil from its original mounting

bracket.

B. Locate the two 5/16" threaded bosses on the intake

manifold between the throttle body and rear of the air
conditioning unit.

C. Attach the supplied coil bracket and 1/4-20 hardware to

the ignition coil. Secure the coil assembly to the intake
manifold using the supplied spacer, 5/16" bolts and
washers. The distributor lead must point toward the rear
of the vehicle.

NOTE: Supercharger drive belt must

not be attached at this step.

Figure: 5-a

Figure: 5-b

Figure: 6-a

NOTE: It is essential that the super-

charger oiling orifice not be
plugged. Therefore, do not use
Teflon tape or other sealant that
could possibly cause blockage.
Use engine oil.
