4. MAIN MOUNTING BRACKET AND PLATE

WIRING HARNESS

A. It is necessary to provide clear-

ance between the dipstick and
accessory drive belt. Remove the
bolt holding the dipstick tube. Hold
the tube approximately two inches
from the top and gently bend rear-
ward and inward about one inch.
Resecure with the existing fas-
tener after the bracket installa-
tion.

B. Mount the cast aluminum main

mounting bracket onto the front of
the engine right cylinder head us-
ing the fasteners provided, as
shown in the graphic on the next
page.

C. Please note that the 3-3/4" bolt

also holds the supercharger
mounting plate. This fastener

must

be threaded into its hole loosely
as a pilot while securing the cast
bracket with the other two, then
removed for installation of the su-
percharger mounting plate.

D. Slide the 3/8" x 3-3/4" bolt into the

proper hole in the supercharger
mounting plate. Attach the stock
belt tensioner to the front of the
supercharger mounting plate. See
graphic on the next page. Make
sure the indexing tab is engaged
in the slot. The factory stud on the
on the tensioner may need to be
shortened for proper bracket clear-
ance. Test fit the plate assembly
to the bracket before tightening
any bolts.

NOTE: Before mounting the

main bracket, the ve-
hicle wiring harness
may need to be shifted
so that it rests in be-
tween the timing chain
cover and the super-
charger mounting
bracket for exhaust
clearance.

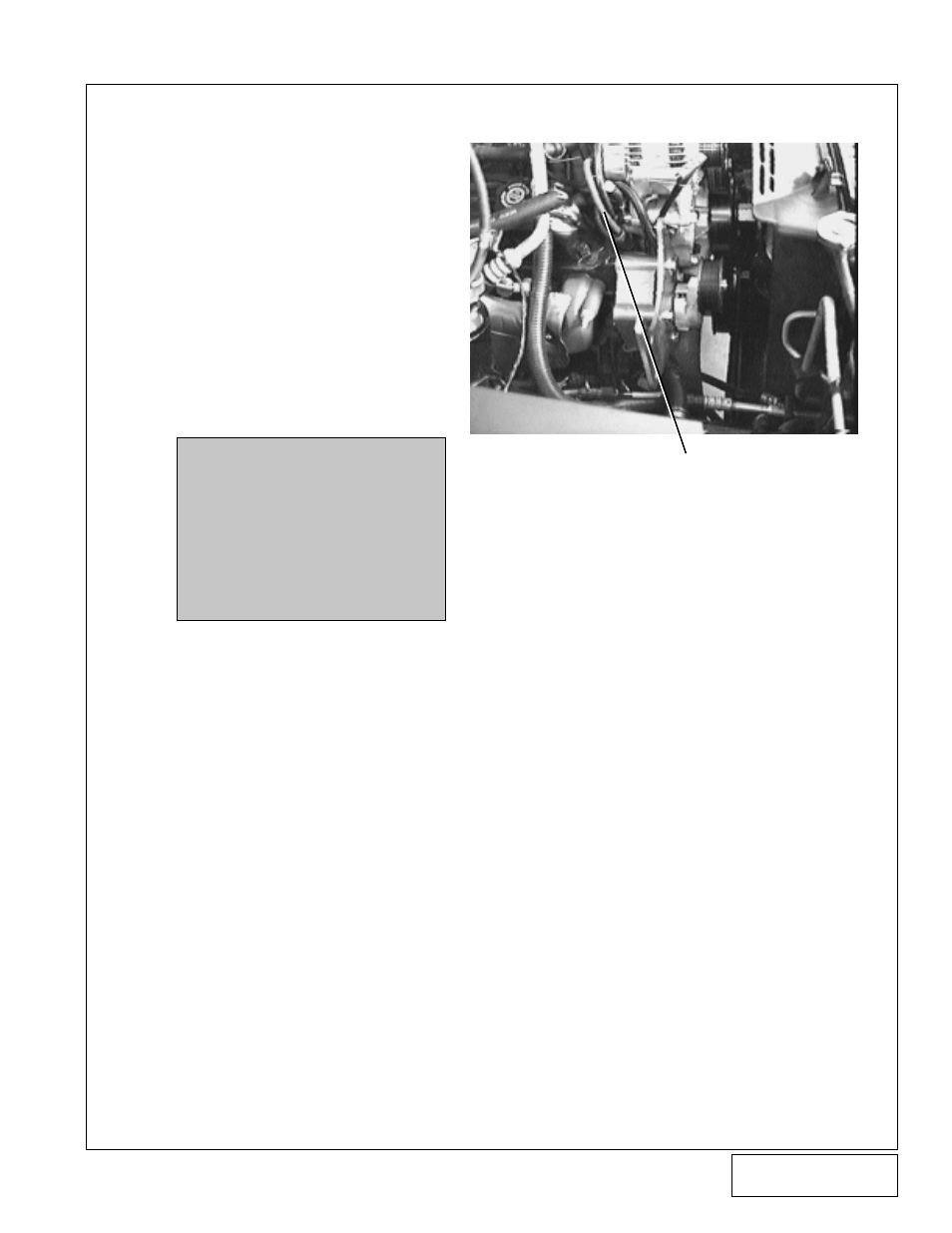

Figure: 4-a
