Vortech 1997-2001 5.2L/5.9L Durango/Dakota - Manual (Page 22)

P/N: 4CE020-010
© 2000 Vortech Engineering, Inc.
All Rights Reserved, Intl. Copr. Secured
18AUG00 V 2.1
(Dodge 5.9L Durango/Dak-2)
11B. SUPERCHARGER AIR INLET DUCT (1996 Dakota/1997-99 Ram only)
A. Slide the supplied 3-1/2" silicone sleeve
and two #56 clamps onto the supercharger
inlet. Insert the short leg of the supplied
aluminum air inlet duct into the silicone
sleeve.
B. Attach the supplied 5/8" hose to the barb
on the air inlet duct and route over to the
left side valve cover breather location.
Attach the 5/8" hose to the breather fitting
and secure with the supplied #8 clamp
(trim hose length if necessary).
C. Attach the supplied air filter to the alumi-
num air inlet using the supplied #52
clamps. (See
Figure 11B-a .)
D. Align inlet assembly and tighten all
clamps.
12

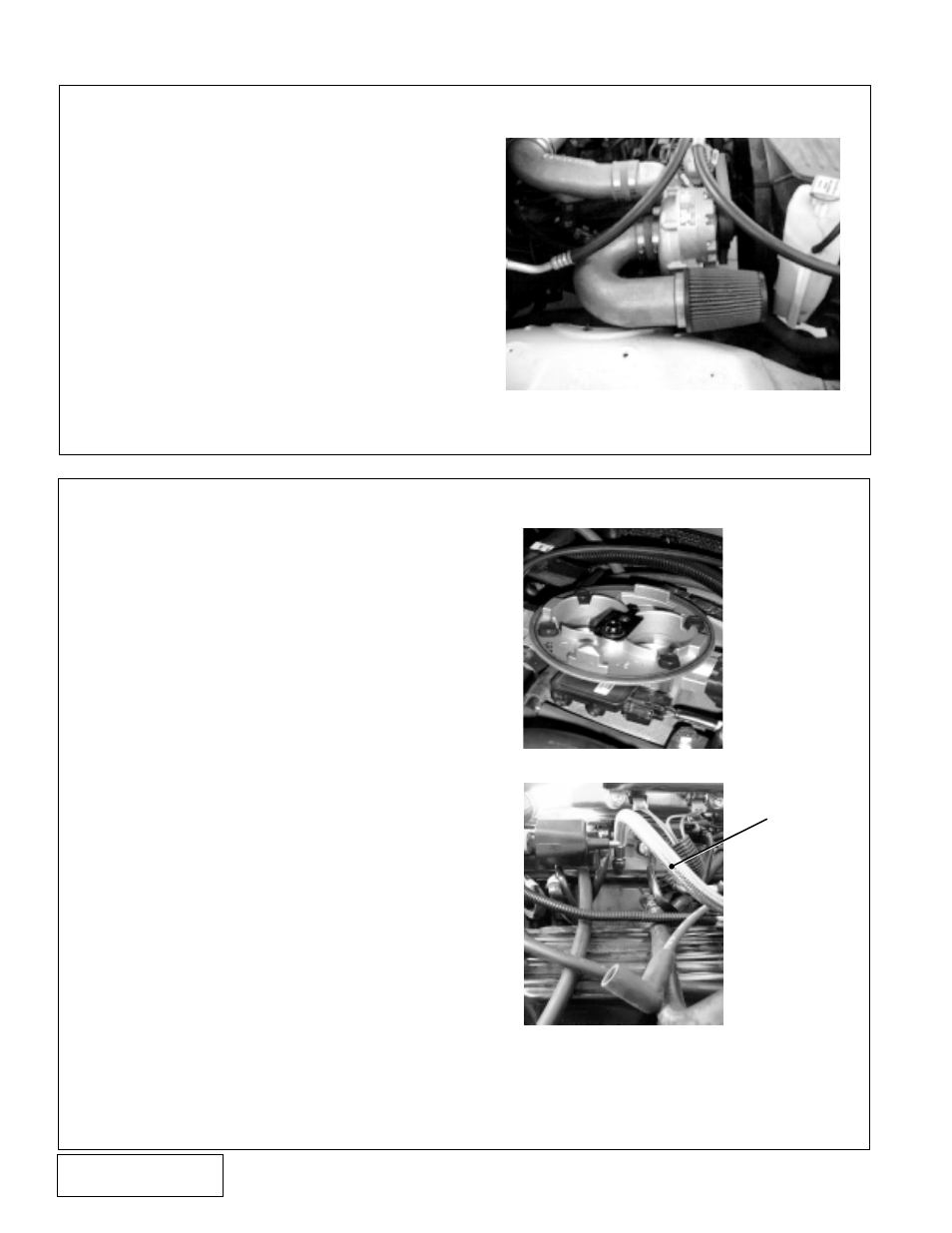

Figure: 11B-a
Figure: 12-b
SUPPLIED
FUEL LINE
(1997-99 Dakota/
Durango only)
Figure: 12-c
12. PLENUM AND DISCHARGE INSTALLATION
A. Remove the tab holding down the factory
air cleaner mounting stud. Reattach the
supplied tab to the throttle body. (See
Figure 12-b .).
B. (1997-99 Dakota/Durango only)
Remove the cap covering the pressure
test port on the intake manifold fuel rail.
Carefully release the fuel rail pressure
by slowly depressing the schrader valve.
Remove the schrader valve from inside of
the port. Install the supplied braided fuel
line onto the fuel rail. (See
Figure 12-c .)
C. Place the gasket and plenum onto the
throttle body. Secure with the supplied
1/4" x 1-3/4" bolt and 1/4" gasket washer.
(See
Figure 12-d .)
D. Fit the 3" x 2" silicone sleeve onto the
plenum and slide on the two #48 clamps.
E. Slide the 2-3/4" x 2" sleeve onto the
supercharger discharge. Secure with #44
clamps.
F. Install the discharge tube between the
plenum and supercharger.
G. Slide the two 1" x 2-1/2" hoses onto the
discharge duct and supercharger air inlet
duct. Secure with #16 hose clamps. (See
Figure 12-e .)
