Vortech 1997-2001 5.2L/5.9L Durango/Dakota - Manual (Page 16)

P/N: 4CE020-010
© 2000 Vortech Engineering, Inc.
All Rights Reserved, Intl. Copr. Secured
18AUG00 V 2.1
(Dodge 5.9L Durango/Dak-2)
6
7. SUPERCHARGER MOUNTING
A. Attach the oil drain hose to the drain
fitting on the bottom of the super-
charger and secure with the clamp
provided. Make sure to position the
clamp housing to the side so that it
does not interfere with the mounting
plate.
B. Set the supercharger in place on the
plate and secure with the five 3/8-16 x
1" bolts and washers.
C. Attach the plastic idler pulley (follow
the arrow in Figure 7-a ) to the inner
most threaded boss on the super-
charger. Use the supplied large
washer as a spacer in between the
pulley and the supercharger.
D. Route the supercharger drain hose
downward toward the drain fitting in
the pan. Trim hose if necessary and
secure to the fitting with the supplied
#8 hose clamp.
8. SUPERCHARGER/ACCESSORY DRIVE BELT
S/C DRIVE
PULLEY
ALT
A/C
CRANK
WATER
PUMP
P/S
PULLEY
A. The new, longer accessory
drive belt is routed the same
as the original belt except
for accommodation of the
supercharger and a idler
pulley.
B. Route the belt around the
outside of the supercharger
drive pulley then around the
inside of the idler (see
Fig-
ure 8-a ).
C. The stock tensioner is used
as originally intended in its
relocated position.
NOTE: The forward A/C line re-
quires slight bending for
supercharger pulley clear-
ance.
NOTE: Drain hose must be routed
downhill with no kinks or
sharp turns. Supercharger
life will be affected by an
improperly routed drain
hose.

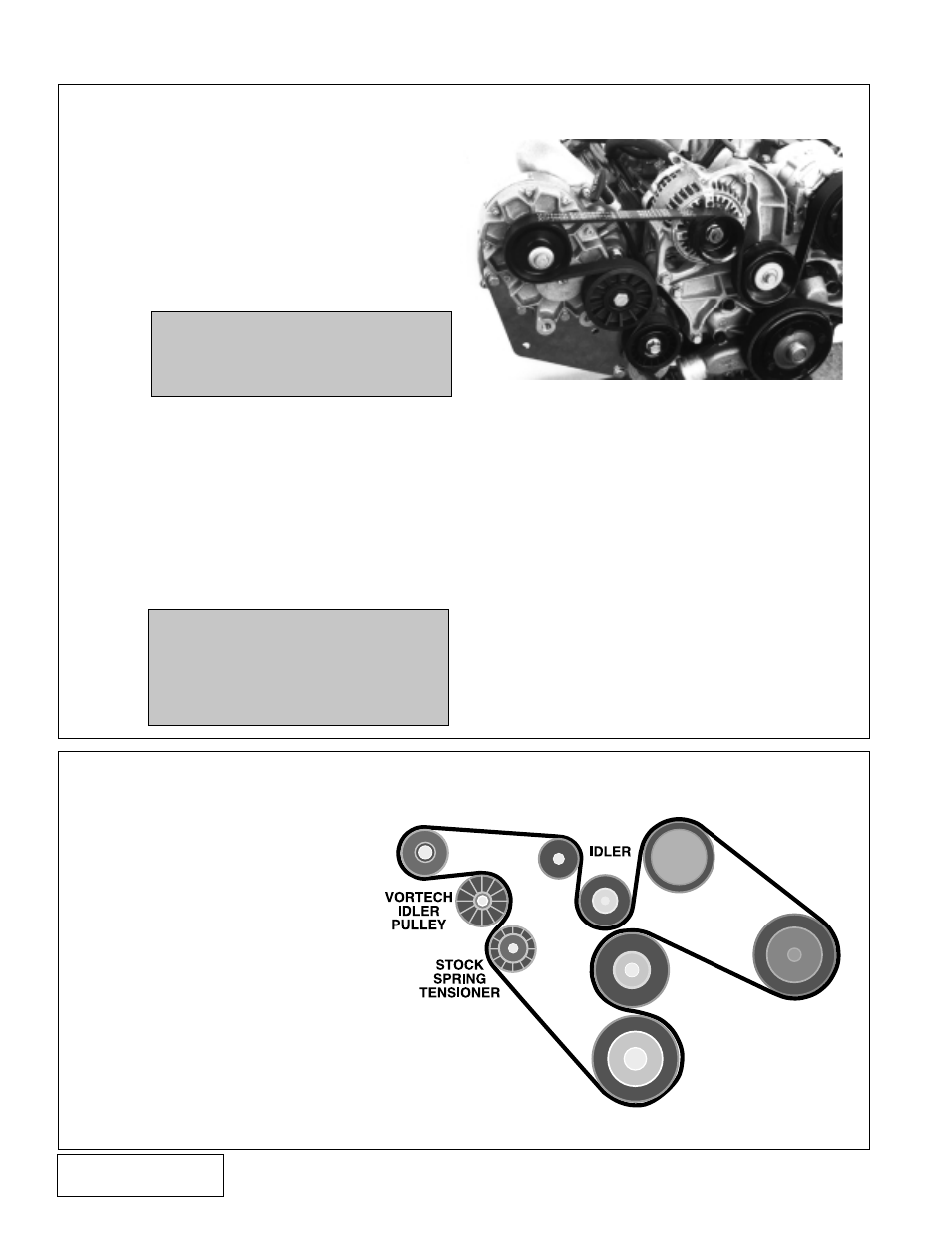

Figure: 7-a - Idler Pulley
Figure: 8-a
➔
