CHaRGE aIR COOLER/DISCHaRGE aSSEMbLY INSTaLLaTION, CONT’D

(See “Discharge Tube Identification” below).

Locate discharge tube B & install the supplied

silicone sleeve onto the shorter leg of the tube

with the 45º bends. Place hose clamps hand tight

onto the sleeve but do not tighten all the way.

I. On the shorter leg of discharge tube B, position the

hose clamps so they are pushed slightly towards

the back. This is in preparation for a later step.

(See Fig. 8-f)

J. Slide a silicone coupler onto the long leg of

discharge tube B, then slide the tube onto the

charge air cooler. Make sure discharge tube B is

resting on the discharge tube support bracket on

the passenger side. This will leave the other end

of the tube near the back of the engine, close to

the firewall.

K. Locate discharge tube C & install the factory IAT

sensor using the supplied rubber grommet. (See

Fig. 8-g)

L. Install the supplied 90 degree silicone elbow onto

the throttle body.

M. Locate discharge tube C & place the tube so that

the section with the two bends are near the back

of the engine, close to the firewall. Slide discharge

tube C into the silicone coupler previously installed

onto discharge tube B (See Fig. 8-h). Insert the

other end of discharge tube C into the 90º silicone

elbow previously installed on the throttle body.

N. Locate the supplied 1” silicone coupler & cut it so

it can be placed around discharge tube C. Place

the cut coupler around discharge tube C & posi-

tion it in a way to trap the drivers side discharge

tube support bracket between the coupler & dis-

charge tube C. Place supplied hose clamp over

the coupler. (See Fig. 8-i)

NOTE: As tube adjustment will be necessary, leave

all hose clamps loose until Step R.

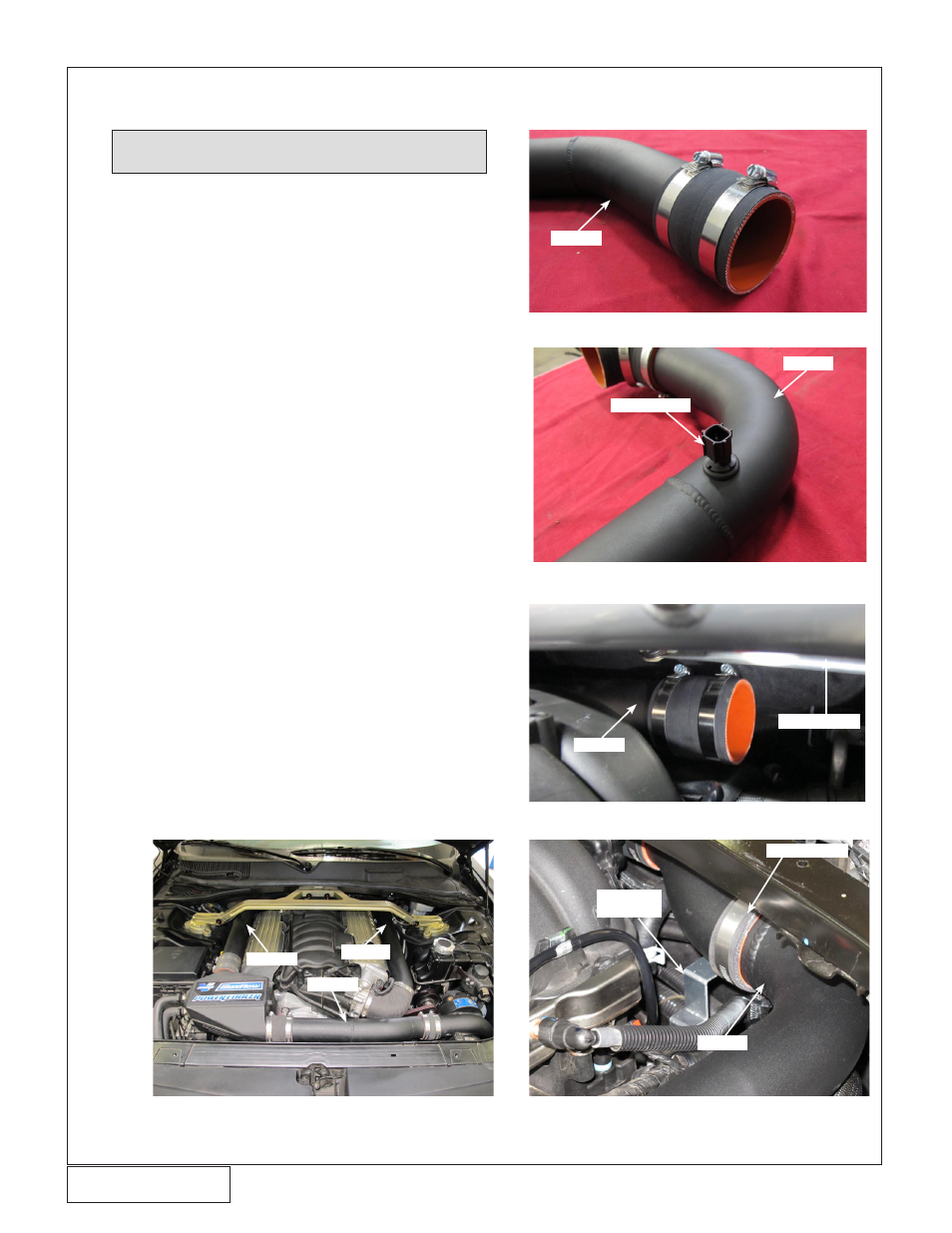

Fig. 8-f (Tube B)

Fig. 8-g (Tube C)

Fig. 8-h

Fig. 8-i

Discharge Tube Identification

TUBE B

WIPER ARM

TUBE C

TUBE B

TUBE A

SUPPORT

BRACKET

1” COUPLER

TUBE C

IAT SENSOR

TUBE B

TUBE C
