36 Chapter 4 Cartridges & CEW Operation

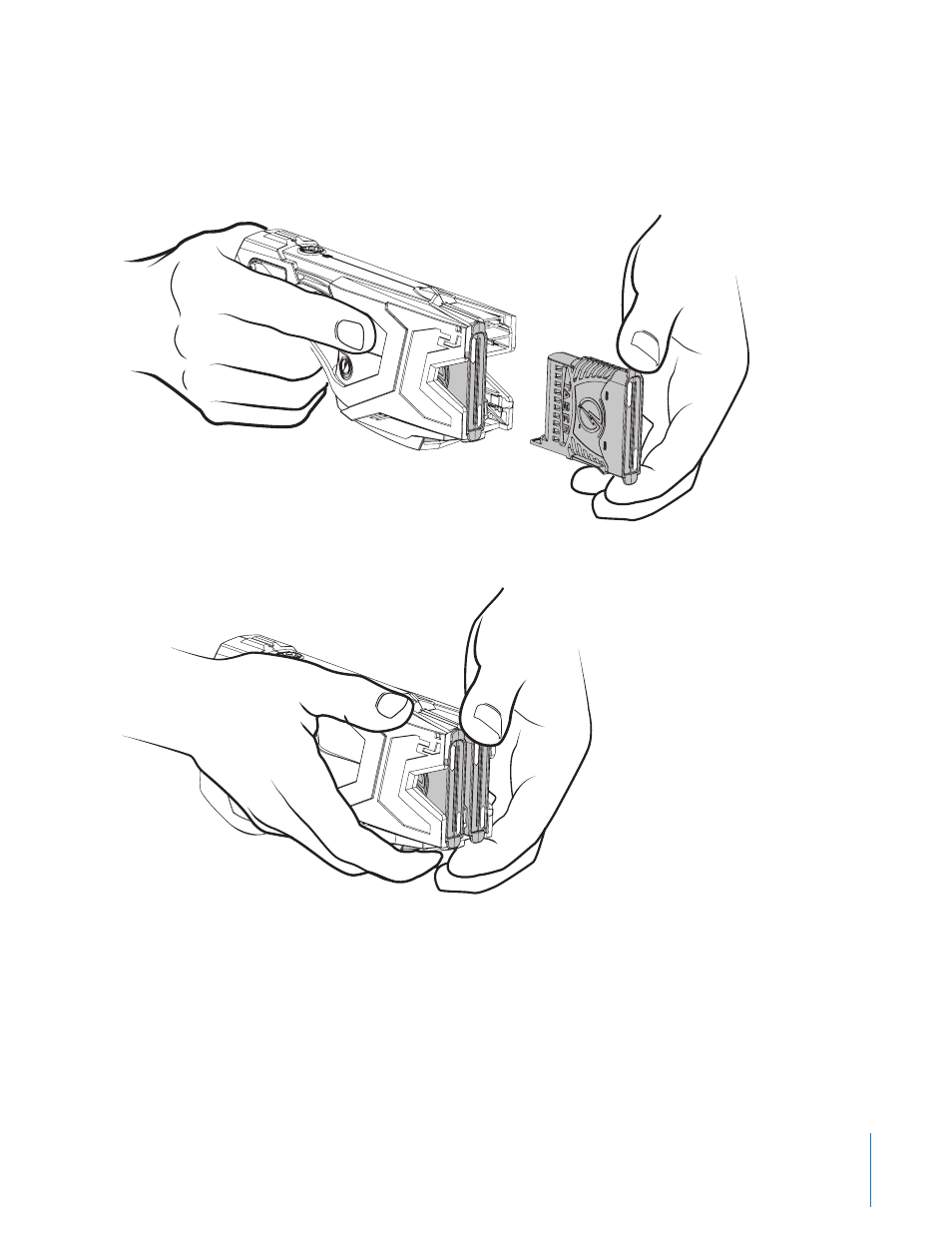

4 Keeping your hand away from the blast doors, gently push the Smart cartridge into the cartridge bay until
an audible click is heard.
Note the position of the tab on the bottom of the cartridge; this side of the cartridge goes in the bottom of the
X2 cartridge bay.
5 Verify that the cartridge is secure by pulling on the tabs on the lower and upper part of the cartridge.
By loading from the right cartridge bay to the left bay (or left to right if the right hand is used), it is less likely the
operator will place fingers in front of the blast doors of loaded cartridges.
Cartridge Release Button
Smart cartridges are held in the X2 CEW after they are loaded. Press the cartridge release button to release the
cartridges before attempting to remove them from the CEW. For further instructions, see the Unloading section
in this manual.
