33 Chapter 4 Cartridges & CEW Operation

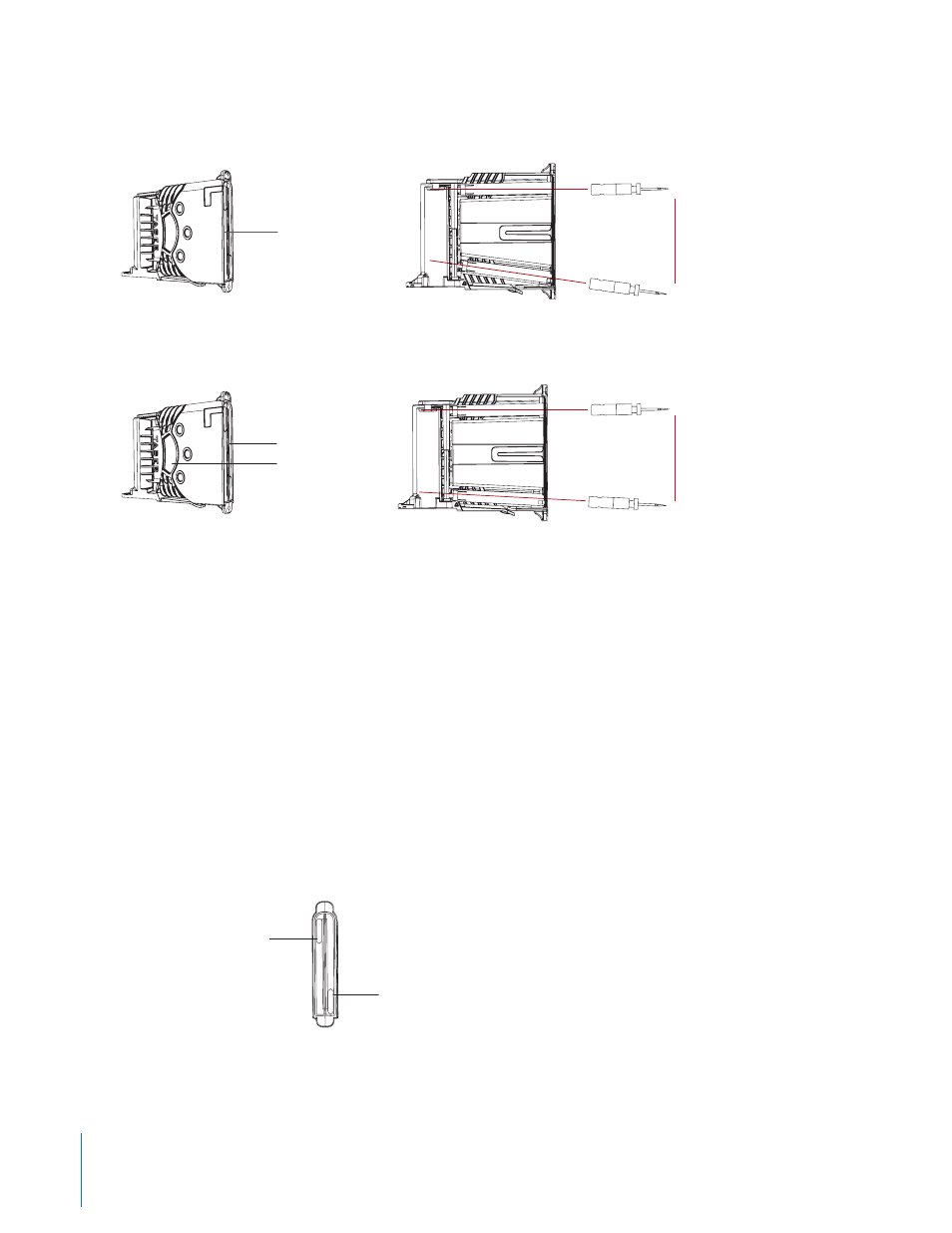

Standard-Range (15 ft/4.6 m and 25 ft/7.6 m) Smart Cartridges
A 15-foot cartridge is identified by yellow blast doors. A 25-foot cartridge has black blast doors.
Blast Doors
TOP PROBE POINTS 0°
BOTTOM PROBE POINTS 7° DOWN
Long-Range (35 ft/10.7 m) Smart Cartridges
A 35-foot cartridge is identified by a raised arch on the side. A 35-foot cartridge has black blast doors.
Blast Doors
Arch
TOP PROBE POINTS 1° UP
BOTTOM PROBE POINTS 3° DOWN
When using the 35-foot Smart cartridge, be aware that the top probe may hit above the LASER. Adjust
your aim to avoid hitting sensitive areas.
Smart Cartridges General Instructions
Never attempt to open or modify a Smart cartridge. Tampering with a Smart cartridge could cause it to fire
or malfunction (which may result in serious injury).
Remove the Smart cartridge from the X2 CEW before inspection.
Before installing and using a Smart cartridge, inspect the blast doors for cracks. The inspection should include
checking the break seam running down the center and both sides of the front of the blast door. If the blast doors
are cracked, remove the Smart cartridge from service.
Also, inspect the Arc deflector metalized labels. Over time, the labels may show signs of wear. This is normal. If
the labels have worn away completely or fallen off, remove the Smart cartridge from service.
Arc Deflector Metalized Label
Arc Deflector Metalized Label
The X2 CEW can determine whether the Smart cartridges loaded in the cartridge bays have been expended or
