SOR Thermal Differential Flow Switch User Manual
Page 3
Form 1024 (08.13) ©SOR Inc.
3/12

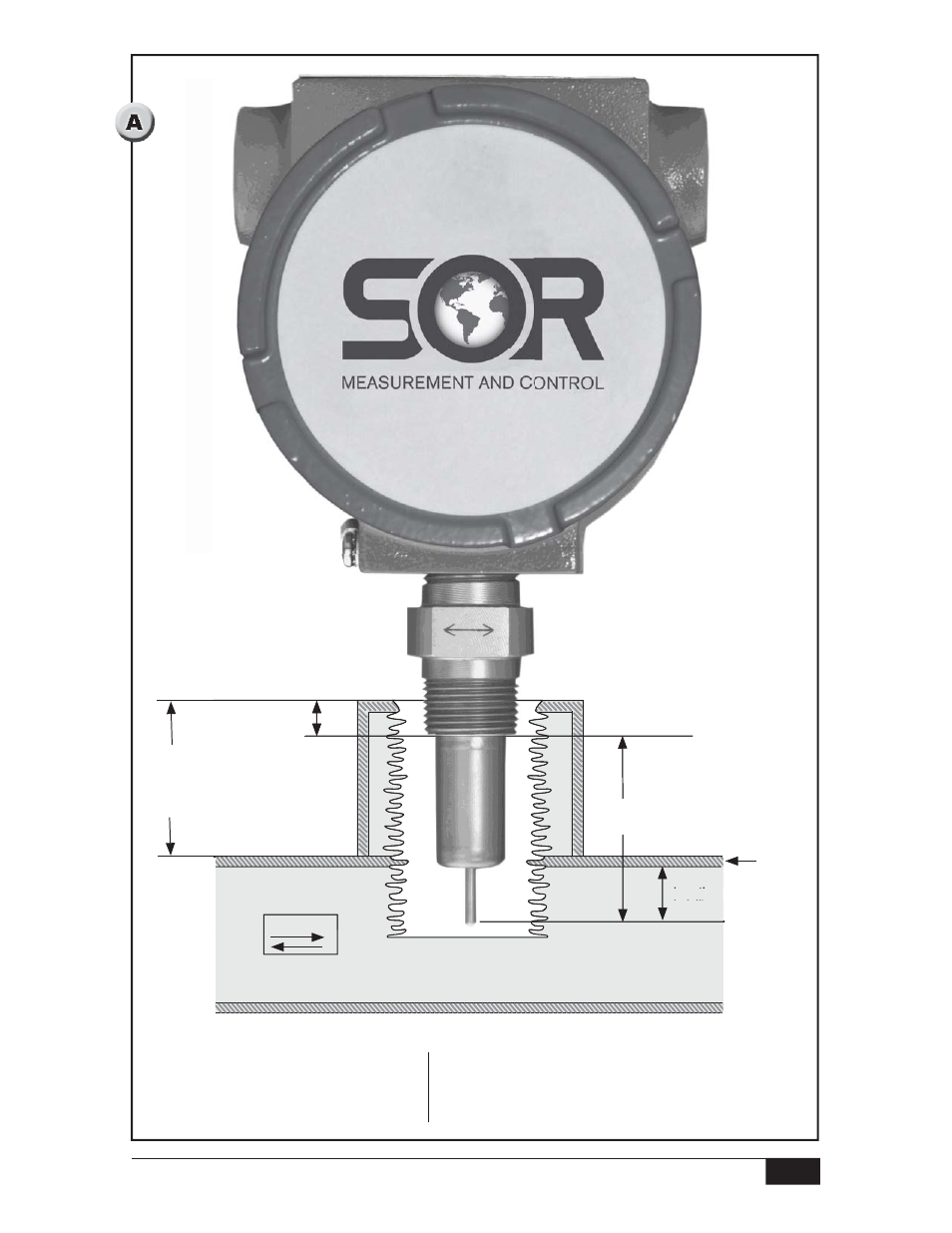

Pipe Wall
Thickness
*Sensor
Length
Pipe
Nozzle/
Coupling
Length
Unit can be mounted above or below pipe. Mounting on top of pipe is displayed above.
Flow
1/4 of pipe I.D. (preferred
insertion assuming pipe
is full)
Thread
Engagement
*Sensor Length =
Nozzle/Coupling length
+ Pipe wall thickness
+ 25% of pipe I.D.
- Thread engagement
*Sensor
Length
Flow
e
1/4 of pip
a
insertion a
p p
is full)
Thread
Engagement
