SOR Opposed Piston - Manual (Page 7)

Form 279 (02.13) ©SOR Inc. 7/12
Linear = mm/inches

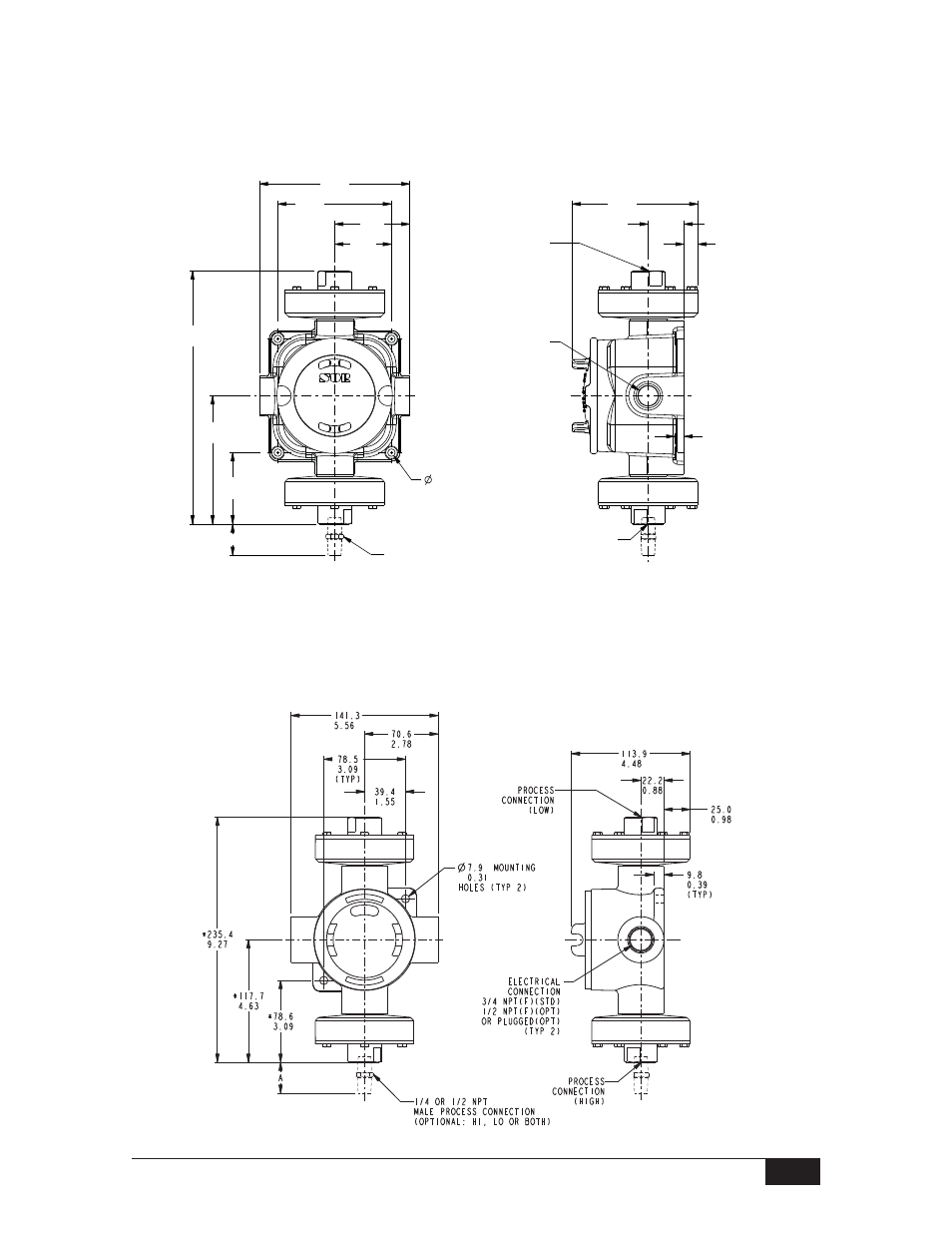

Drawing 0090109
Dimensions are for reference only. Contact the factory for certified drawings for a particular model number.
Housing Designator: TA
Piston Number: 18
Conventional Explosion Proof
Linear = mm/inches
Drawing 0090248
Housing Designator: SC
Piston Number: 18
Conventional Explosion Proof
A
*240.2
9.46
*121.7
4.79
*67.7
2.67
54.0
2.13
(TYP)
108.0
4.25
(TYP)
73.7
2.90
147.1
5.79
MOUNTING
HOLE (TYP 4)
7.1
0.28
8.7
0.34
ELECTRICAL
CONNECTION
3/4 NPT(F)(STD)
1/2 NPT(OPT)
OR PLUGGED(OPT)
(TYP 2)
13.2
0.52
34.0
1.34
119.6
4.71
1/4 OR 1/2 NPT
MALE PROCESS CONNECTION
(OPTIONAL: HI, LO OR BOTH)
PROCESS
CONNECTION
(HIGH)
PROCESS
CONNECTION
(LOW)
LENGTH A
29.7
1/4 NPT(M) = (SHOWN)
1.17
38.9
1/2 NPT(M) = 1.53
