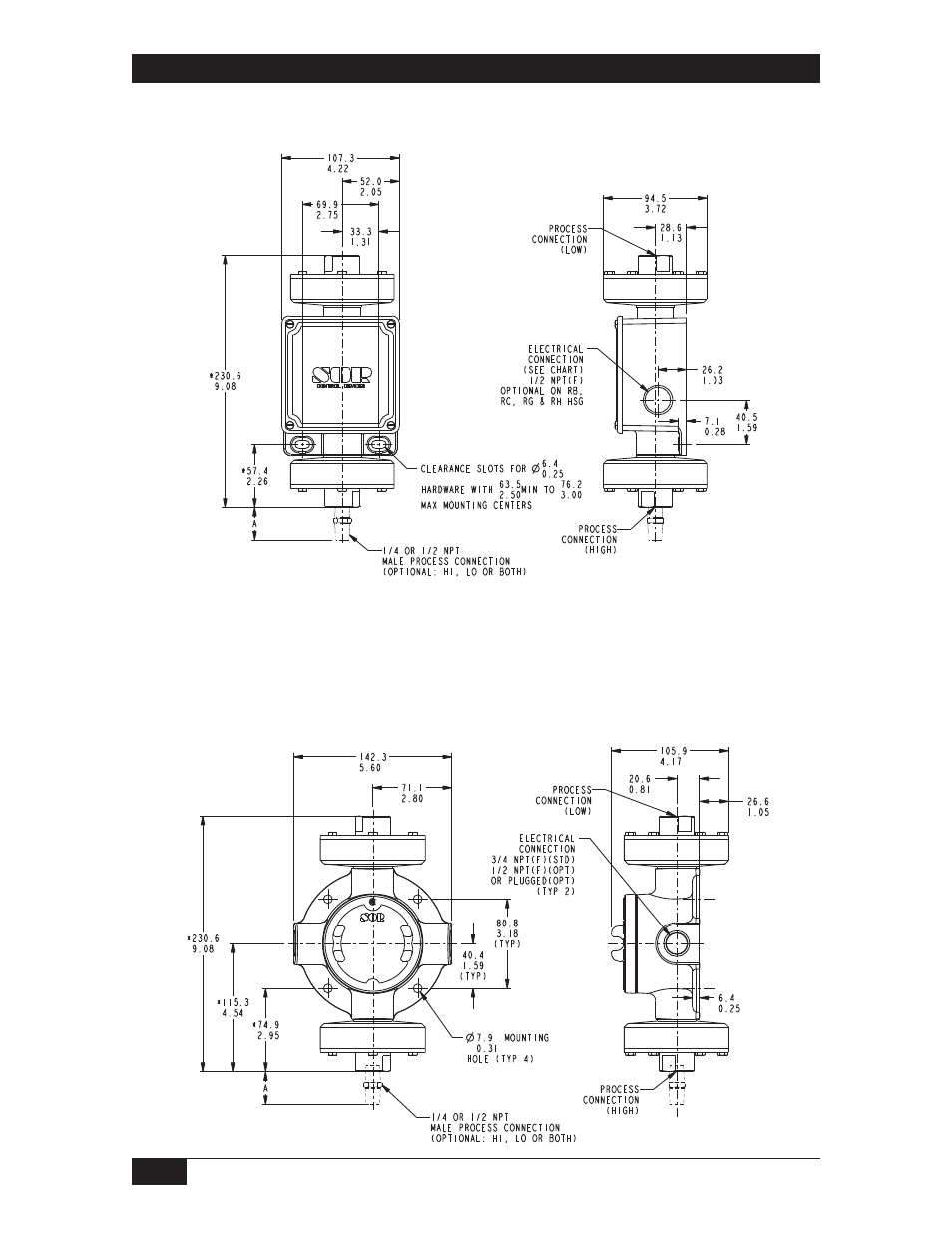

Dimensions

Linear = mm/inches

Drawing 0090262

Dimensions are for reference only. Contact the factory for certified drawings for a particular model number.

Housing Designator: S

Piston Number: 18

Weathertight-NEMA 4, 4X, IP65

Linear = mm/inches

Drawing 0090152

Housing Designator: RB, RH, RE

Piston Number: 18

Conventional Explosion Proof
