LITHIUM (LIPO/LILON/LIFE) PROGRAM

The program is only suitable for charging/discharging Lithium(LiPo/

LiIon/LiFe) batteries with a nominal voltage of 3.3/3.6/3.7V/cell.

Different batteries have different charge technique. There are two

methods termed as constant voltage and constant current. The

charge current varies according to battery capacity and specification.

The final voltage is very important; it should precisely match the

voltage of the battery: LiPo is 4.2V, LiIon is 4.1V and LiFe is 3.6V.

The current and voltage of the battery should be correctly set.

When you want to change the values of parameters, please press

START/ENTER key to make it blink and then use DEC or INC to

change the value. Then press START/ENTER key again to store the

value.

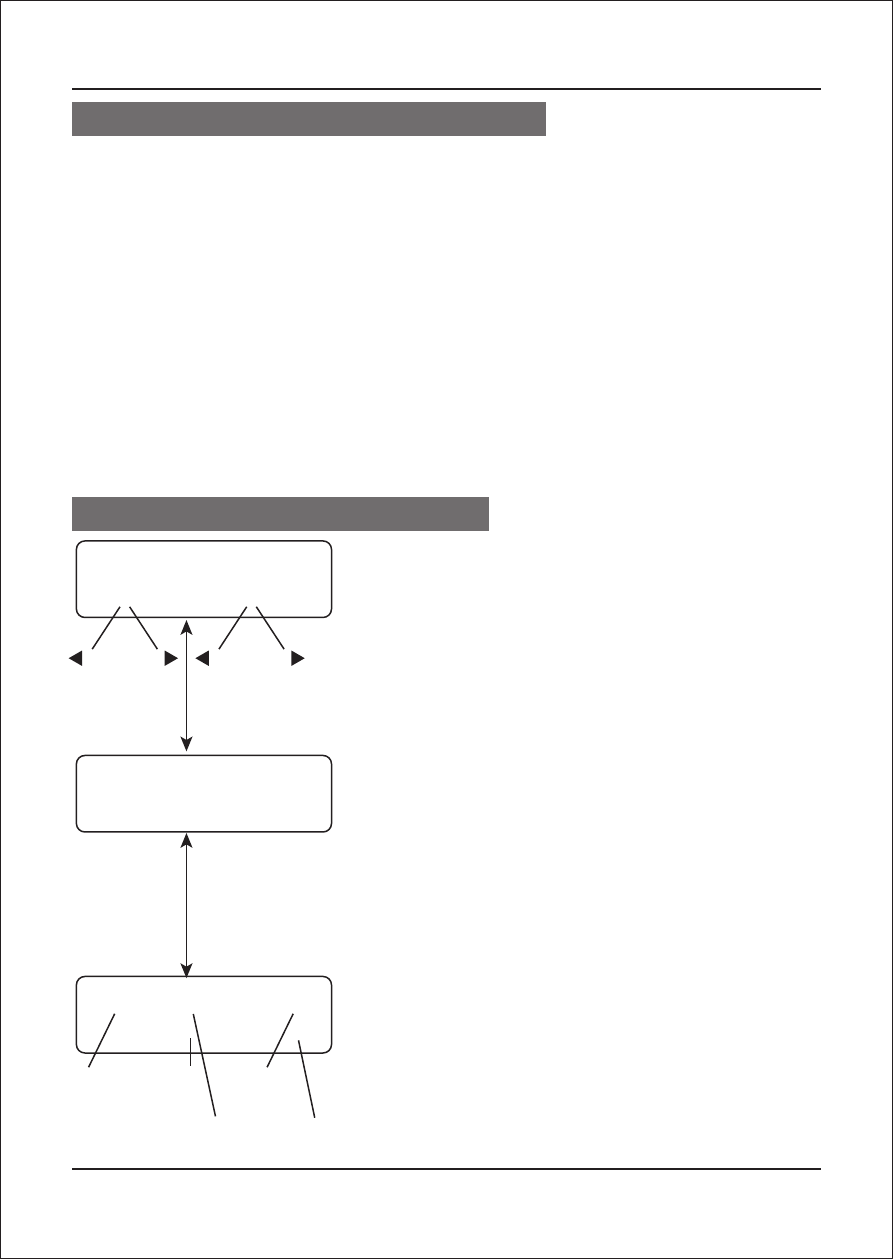

The left side of the first line shows the type

of battery you choose. The value on the left

of the second line of the charger is current

user set, After setting the current and

voltage, press START/ENTER key for more

than 3 seconds to start the process.(charge

current: 0.1-5.0A, voltage: 3.7-22.2V).

CHARGING OF LITHIUM BATTERY

LiPo CHARGE
2.0A 11.1V(3S)

INC

DEC

- +

INC

DEC

- +

Batt type

Stop

Start

Enter

Start

Enter

‘>3 seconds’

This displays the number of cells you set up

and the processor detects.”R” shows the

number of cells detected by the charger

and “S” is the number of cells set by you at

the previous screen. If both numbers are

identical you can start charging by press

START/ENTER button. If not, press BATT

TYPE/STOP button to go back to previous

screen to carefully check the number of cells

of the battery pack before going ahead.

R:3SER S:3SER
CONFIRM(ENTER)

This screen shows the real-time status

during charge process. Press BATT TYPE/

STOP key once to stop the charge process.

Li3s 1.2A 12.59V
CHG 022:43 00682

Number

of cells

Charging

time

Charging

current

Battery

voltage

Charged

capacity
