4857 Reactor Controllers

- 33 -

C

ONTROLLER AND

C

IRCUIT

D

IAGRAMS

(

CONTINUED

)

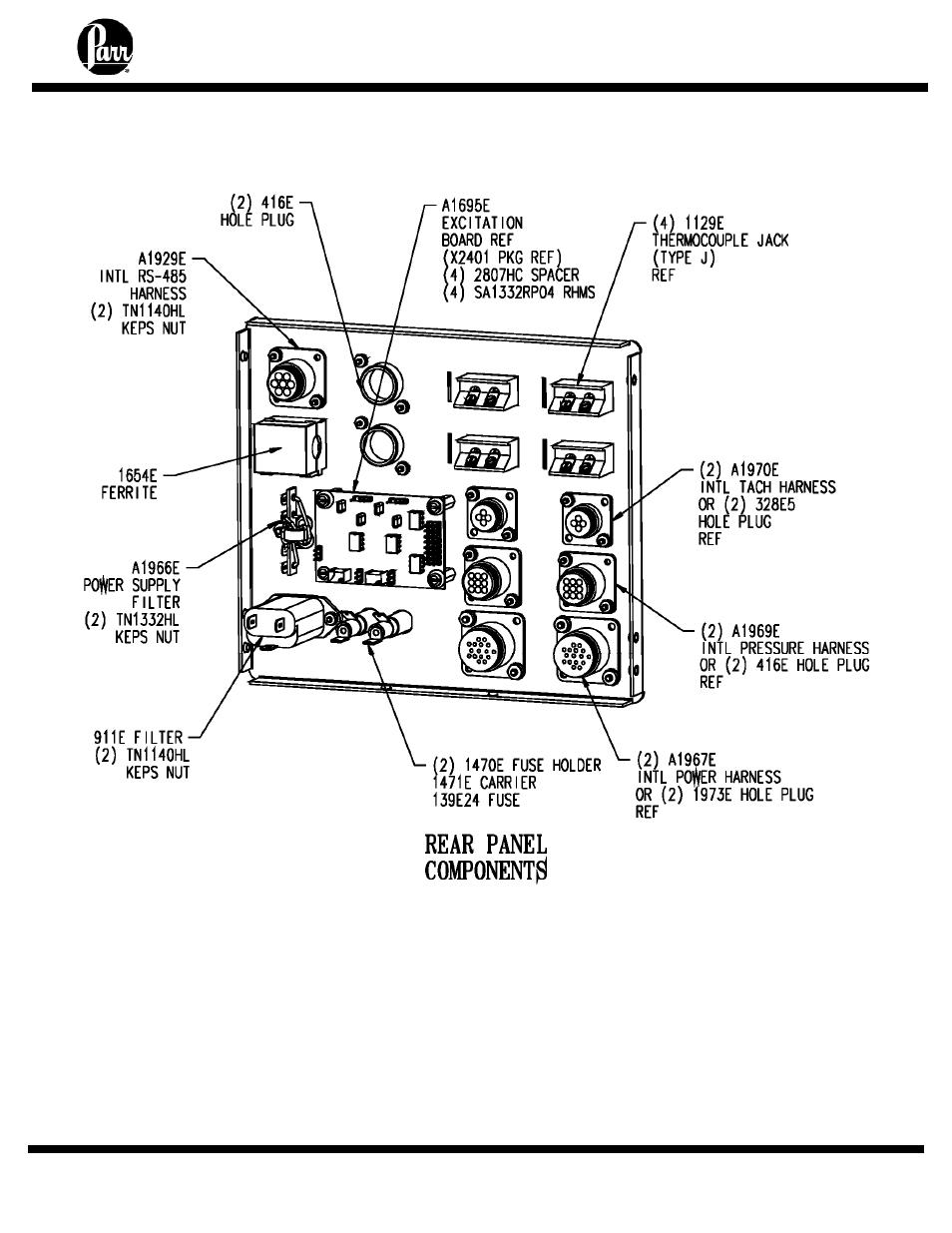

Diagram 5: Schematic of back plate of 4857 Process Controller
