Freeze-dryer EPSILON 2-10D LSCplus
2 Layout and mode of operation
Version 04/2013, Rev. 1.5 of 16/12/2014 • sb
15
Translation of the original operating manual
36 Media connector
block

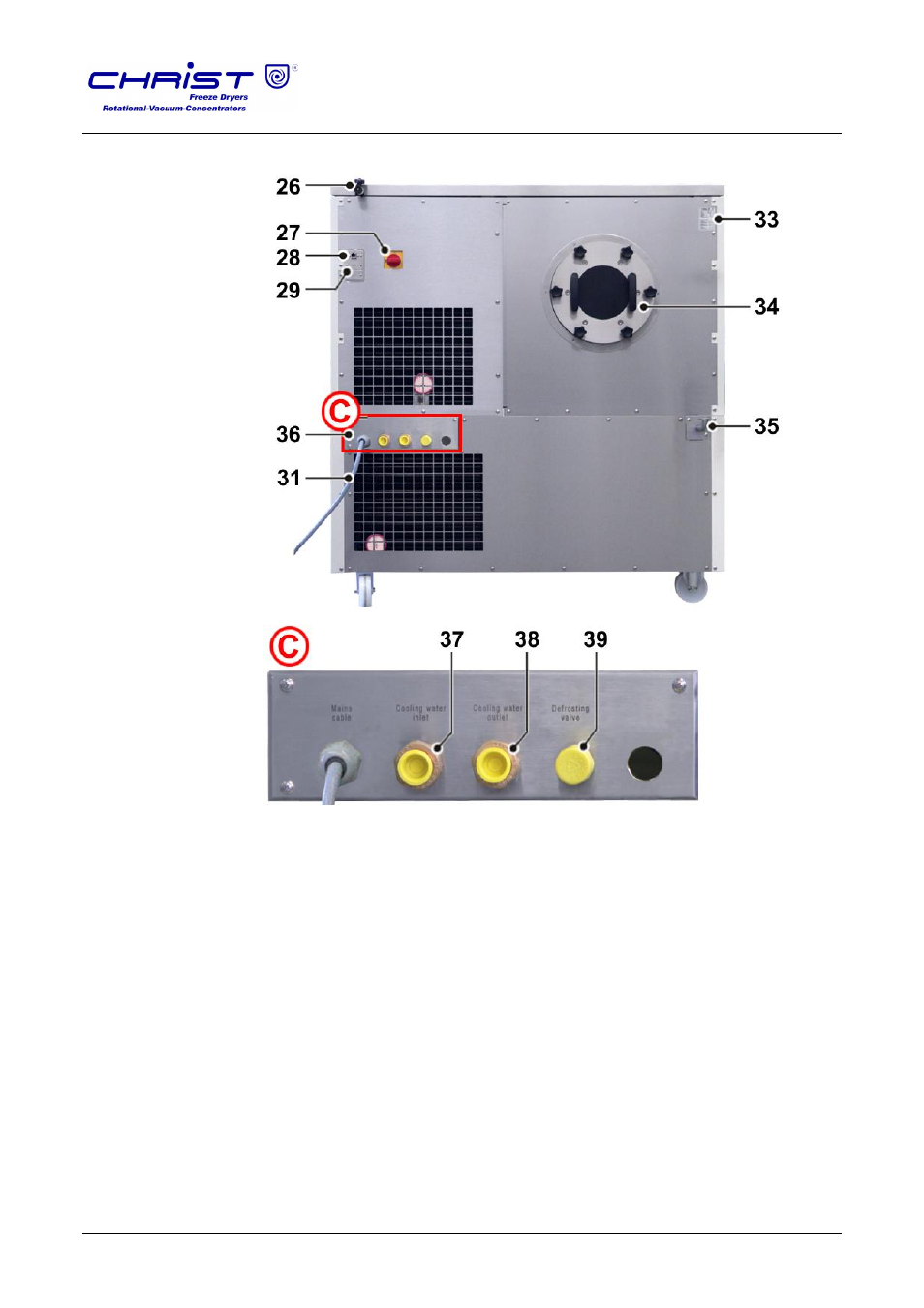

Fig. 7:
Rear view of a water-
cooled freeze-dryer
Water-cooled freeze-dryer:
37 Connector for the
cooling water intlet
38 Connector for the
cooling water outlet
39 Media drain valve of
the ice condenser
chamber (alternatively
to item 23)
Fig. 8:
Detailed view C -
media connector block
