Freeze-dryer EPSILON 2-10D LSCplus
2 Layout and mode of operation
Version 04/2013, Rev. 1.5 of 16/12/2014 • sb
13
Translation of the original operating manual
11 Option: Precision
control needle valve
for air injection
12 Exhaust filter
13 Pressure control
valve
14 Vacuum pump

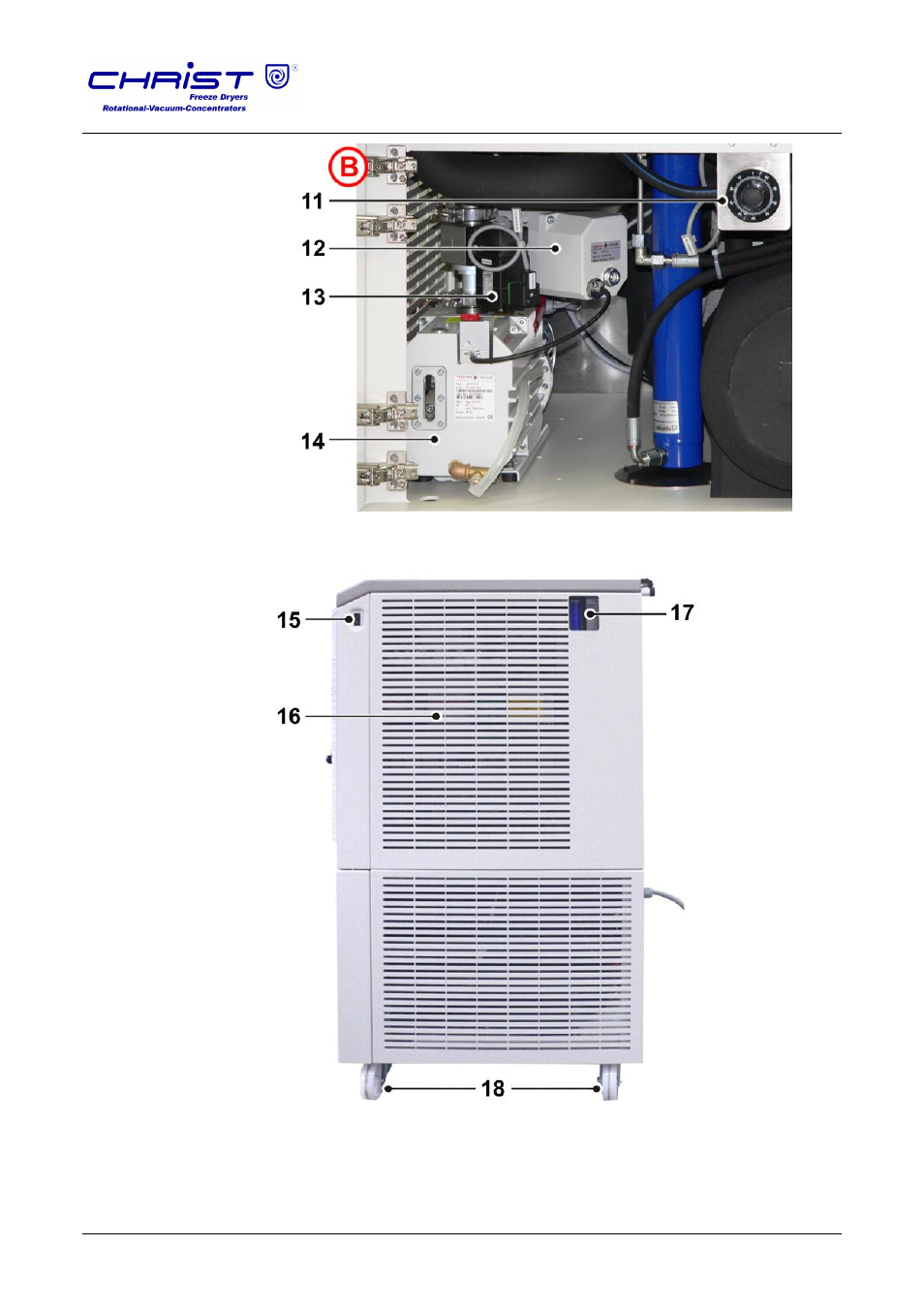

Fig. 3:
Detailed view B - vacuum
pump
15 Mains power switch
16 Switch cabinet
(behind the side
panel)
17 Sight glass of the
heat transfer medium
18 Steerable castors
Fig. 4:
Right side of the freeze-
dryer
