36 Installation and Commissioning of the Unit
Operating Manual Freeze Dryer BETA 1-8 LDplus / BETA 2-8 LDplus
The accessory components are connected to the
BETA 1-8 / 2-8 LD
plus
freeze-dryer according to the connection
diagram. Please observe the following:
Centring rings and clamping flanges with wing nuts are used as
connecting elements (small-flange connection according to ISO
28403 or DIN 2861, see the following instructions).
Instructions for the connection with centring rings and
clamping flanges
Small flange connections which are not mounted properly between
the aggregates or to connect hoses are often the reason for
serious vacuum problems.
Loosen the connection and place the centring ring (with sealing
ring inside) in a centred manner between the flange connections..
Seal the connection with the clamping ring by tightening the wing
nut.
Ensure that the centring ring neither slips out of place nor gets
jammed.

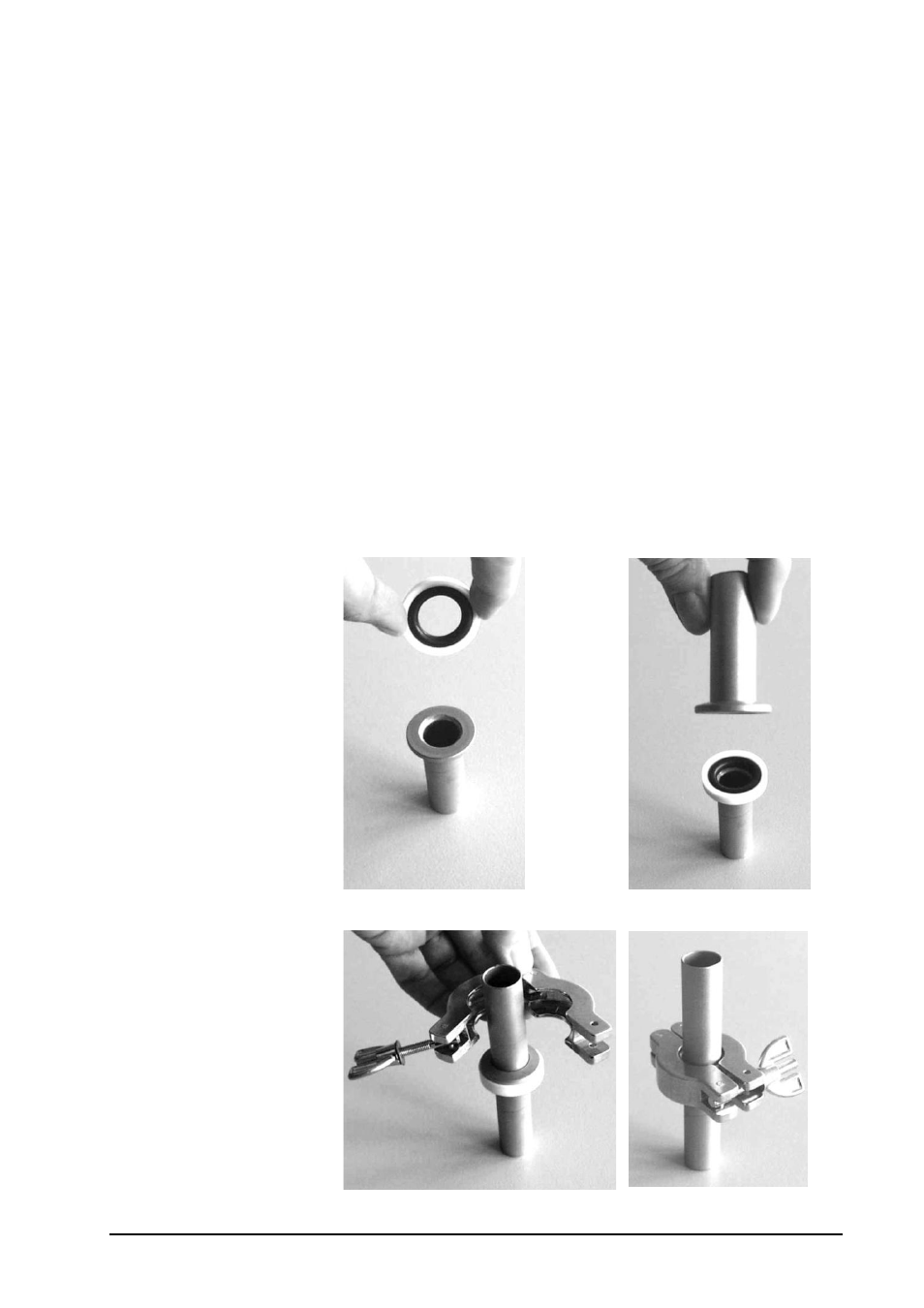

Small flange and centring ring
Small flange with centring ring
and small flange
Attaching the clamping ring
Tightened clamping ring
