Appendix F: Installation Guide Pure-Vu Seals/Stand-Still Isolation Platforms
Product Service 1-800-522-7658 65
Original instructions

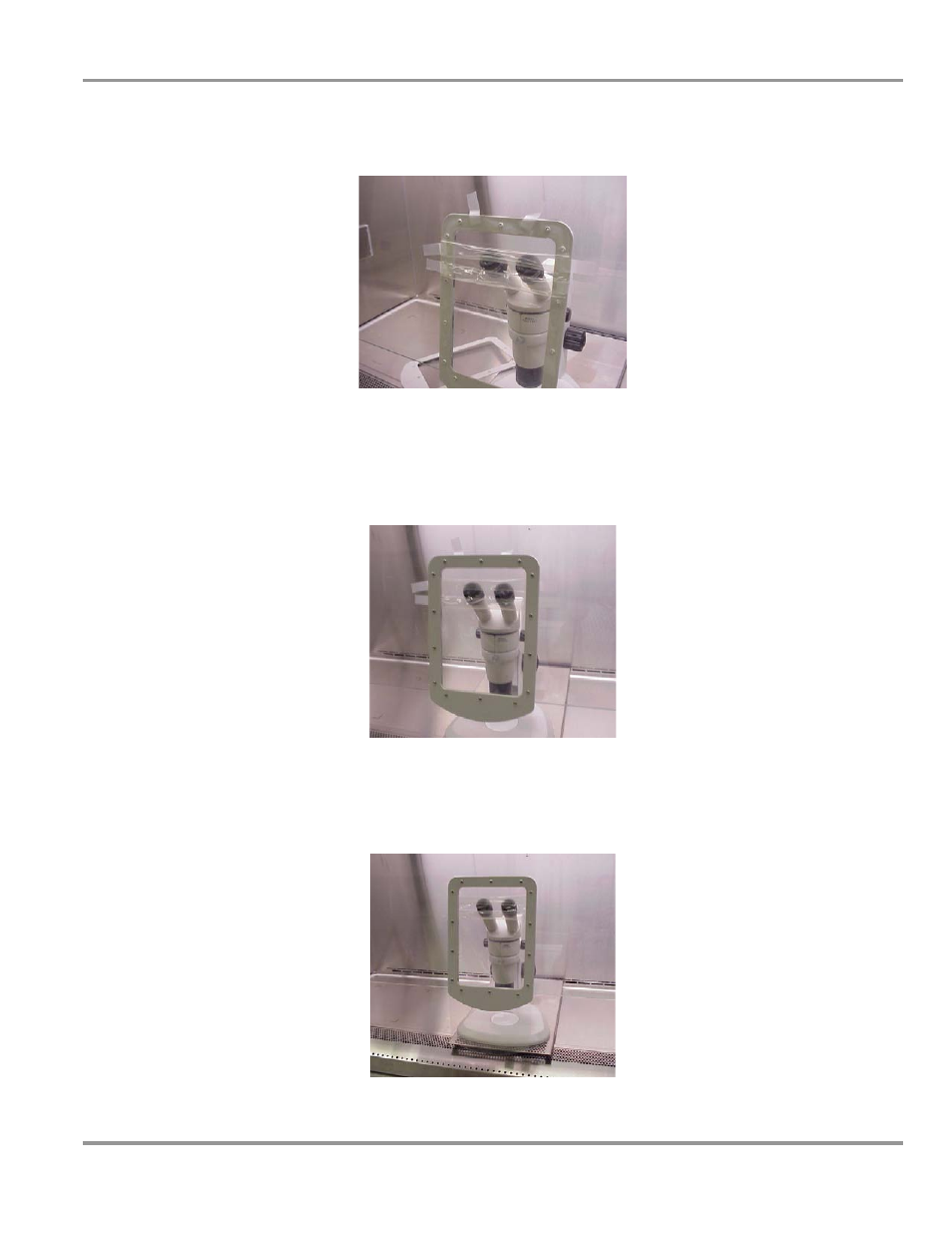

3. Per Figure F-5, form the second pleat and secure with transparent
tape.
Figure F-5
4. Per Figure F-6 and Figure 3-5, place the Outer Aerodynamic collar
over the Pure-Vu XL Seal and lightly secure in place with the 14
Phillips mounting screws. Do not tighten.
Figure F-6
5. Per Figure F-7, remove the transparent tape and then tighten the 14
Phillips mounting screws.
Figure F-7
