Appendix F: Installation Guide Pure-Vu Seals/Stand-Still Isolation Platforms
Product Service 1-800-522-7658 63
Original instructions

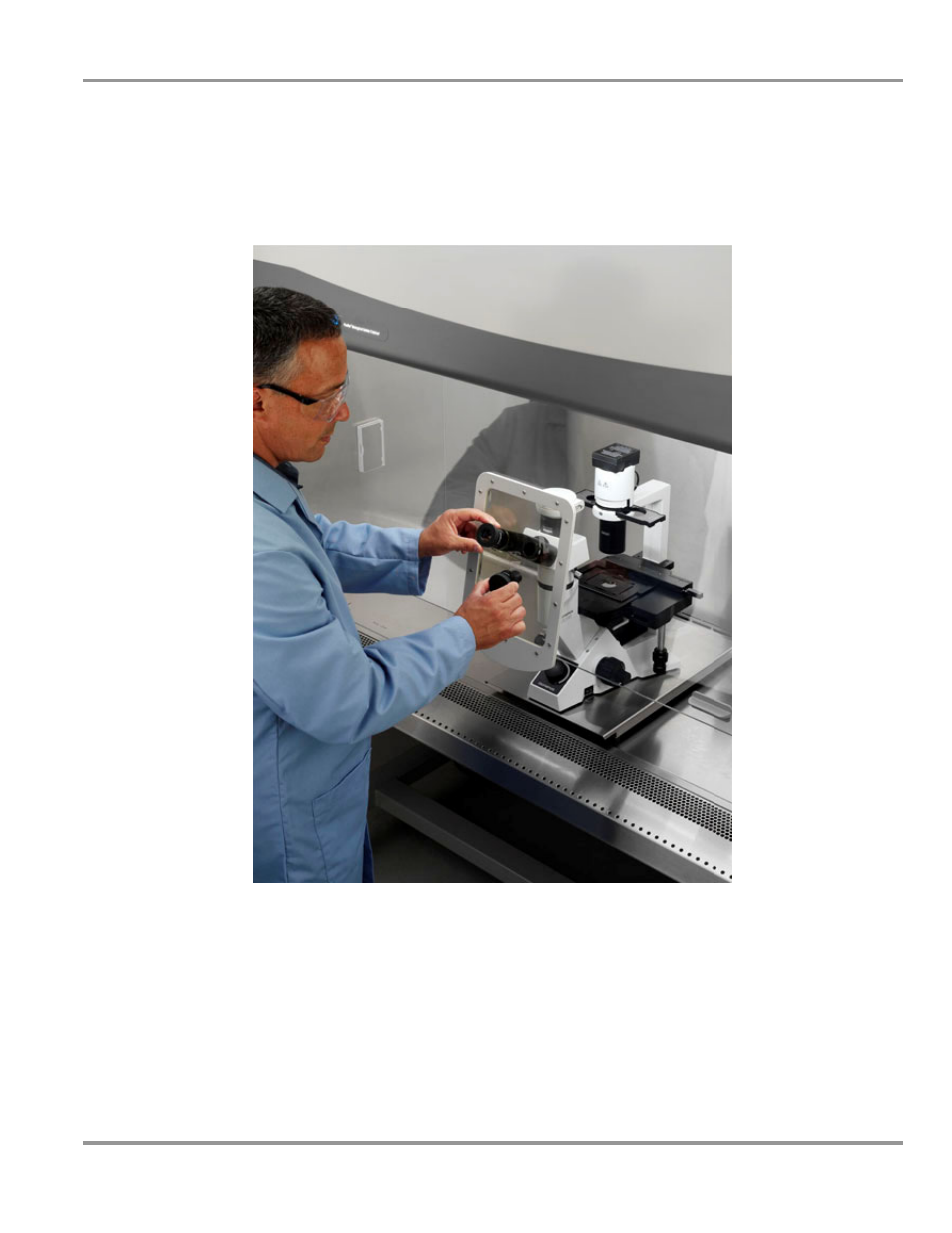

Figure F-2 is an aid to show the Pure-Vu Seal fully installed with the
eyepieces extended and sealed. Figure F-2 also shows the microscope moved
forward into proper position on the Stand-Still Isolation Platform.
Figure F-2
