34
Front Panel Interface
Lake LM Series Operation Manual Rev 1.2.8
To change the Iso-Float setting, press the Inputs or Outputs button, then adjust the value using the rotary
encoder. The current settings are also displayed on the front panel I/O STATUS screen.
The analog inputs utilize Iso-Float transformerless electronic balancing circuitry. This provides electrical isola-
tion from an analog source comparable to that achieved with transformer-based designs. However, pin 1 of
the XLR input connector may be connected to ground within the device if desired. This option is selected by
using the rotary encoder to toggle between FLOATING and GROUNDED.
It may be necessary to change this setting to resolve ground loop problems when using analog inputs.
6.10.3.4 Output Router
MENU > I/O CONFIG > OUTPUT RTR

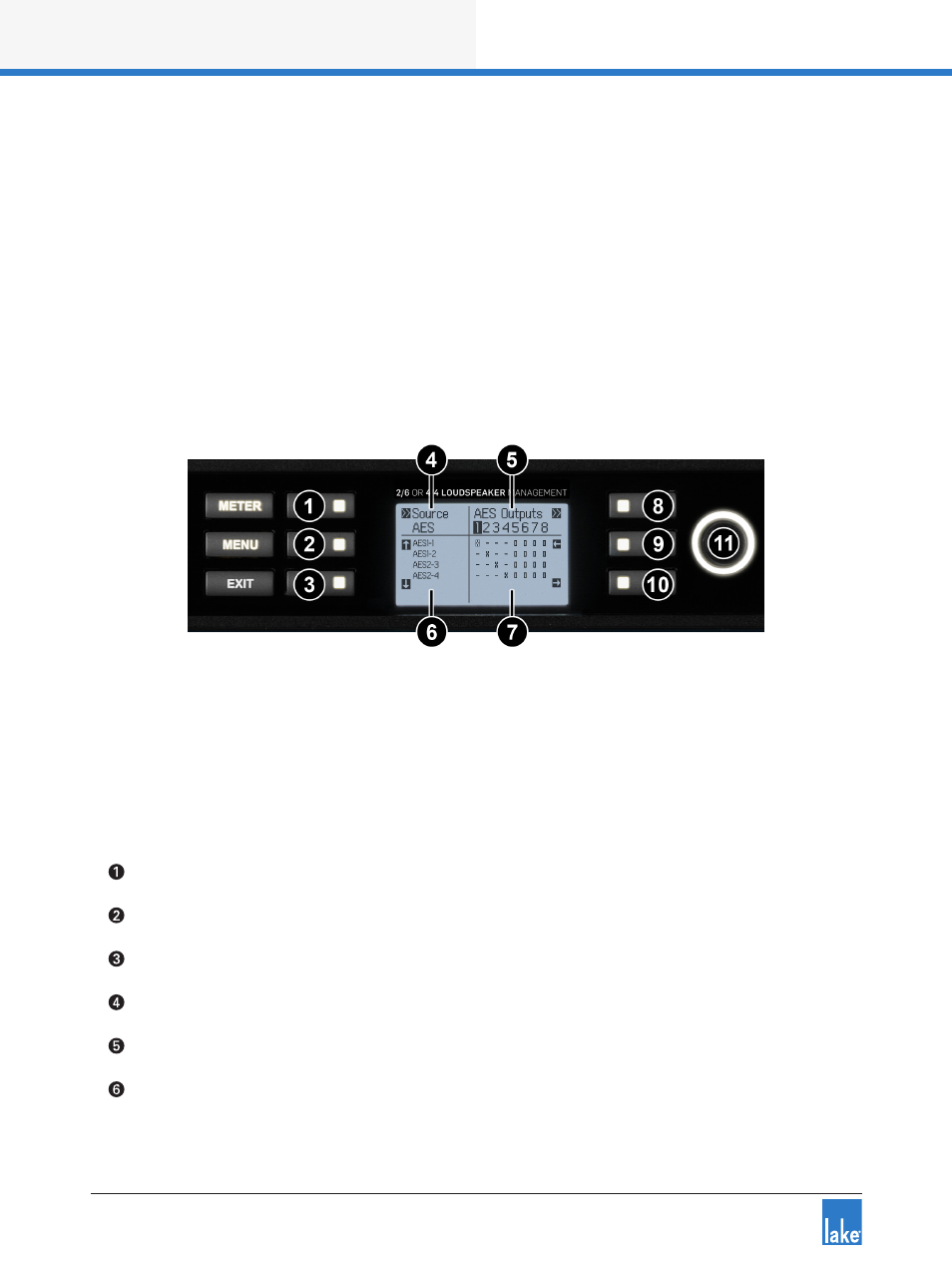

Figure 6-20: Output Router Configuration Screen
The LM Series device provides comprehensive output routing via the front panel interface. The number of
channels available for the audio source and destination varies depending on whether the device has been
configured in Contour or Mesa mode.
Figure 6-20 shows the functions available along with numbers to identify the various features described
below.
Press this button to toggle through the available audio sources
Press this button to move the cursor upwards
Press this button to move the cursor downwards
This section of the screen displays the selected audio source
This section of the screen displays the selected output destination type
This section of the screen displays the channels for the selected audio source
