Front Panel Interface
29
Lake LM Series Operation Manual Rev 1.2.8

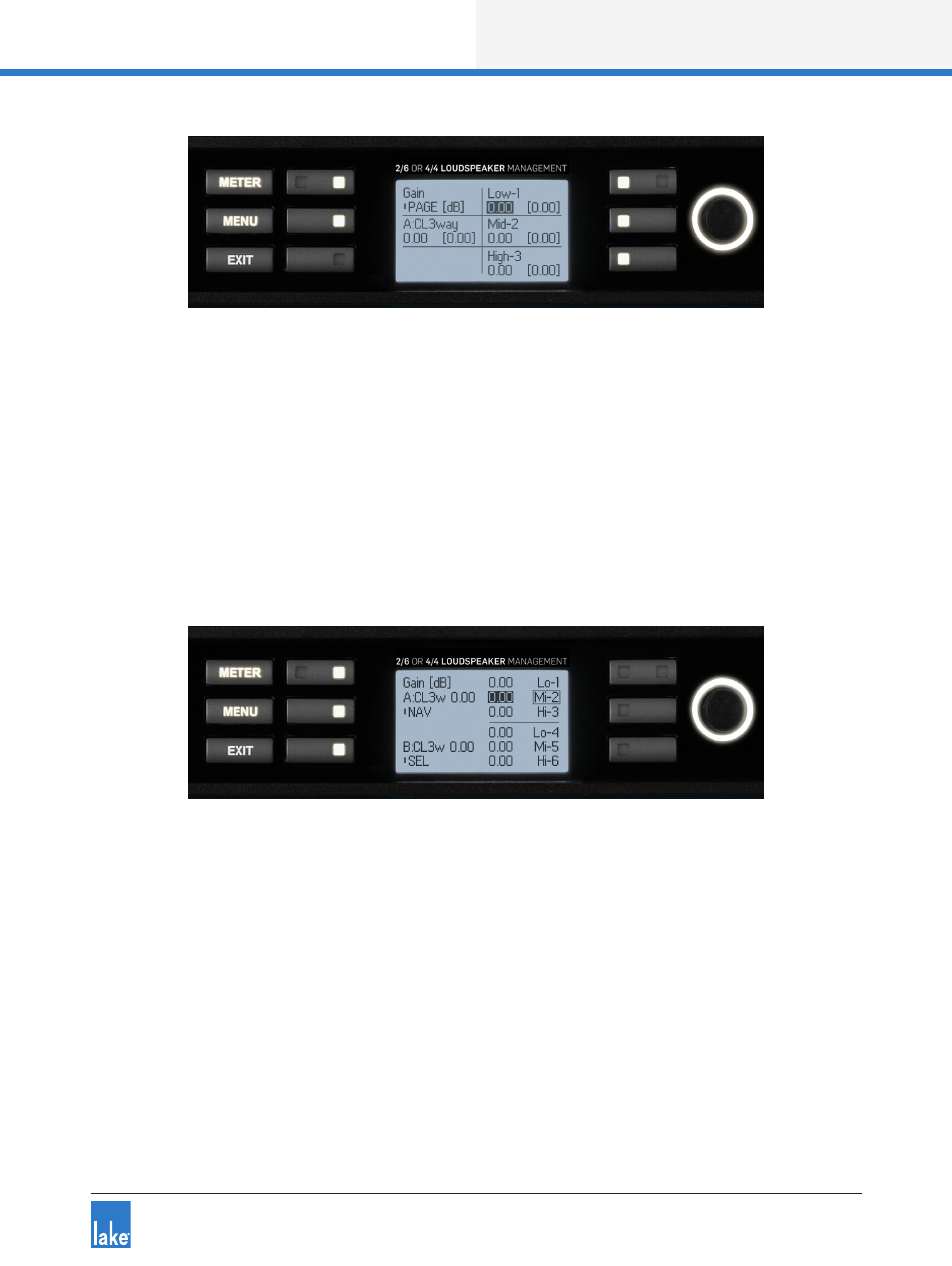

Figure 6-14: Single Module Gain Edit Screen
Pressing the top left PAGE button scrolls between the following three views for modules with four output
channels or less:
1. Module A Input and Output Gain Settings (with Group totals)
2. Module B Input and Output Gain Settings (with Group totals)
3. Module A & B Combined Summary (without Group totals)
Pressing any other illuminated button on any of these three screens allows direct editing of the Module
parameter using the rotary encoder.
Figure 6-15: Module A+B Combined Gain Summary Edit Screen
On the combined module summary screen, use the NAV button to navigate through the channels, and the
SEL button to select a parameter for editing. Selected parameters are highlighted using inverse video on the
value. The navigation cursor is identified by a bounding box around the abbreviated channel label. Multiple
gain values may be adjusted in 0.1 dB increments subject to defined level limits.
6.10.2.3 Delay
MENU > MODULE > DELAY
Module Delay adjustment follows the same logic as Module Gain. Please refer to section 6.10.2.2 for further
information. Multiple delay values may be adjusted simultaneously in 0.1 ms increments, subject to defined
level limits.
