Front Panel Interface
Lake LM Series Operation Manual Rev 1.2.8
After pressing the MENU button, various submenu options are displayed as shown in Figure 6-11.

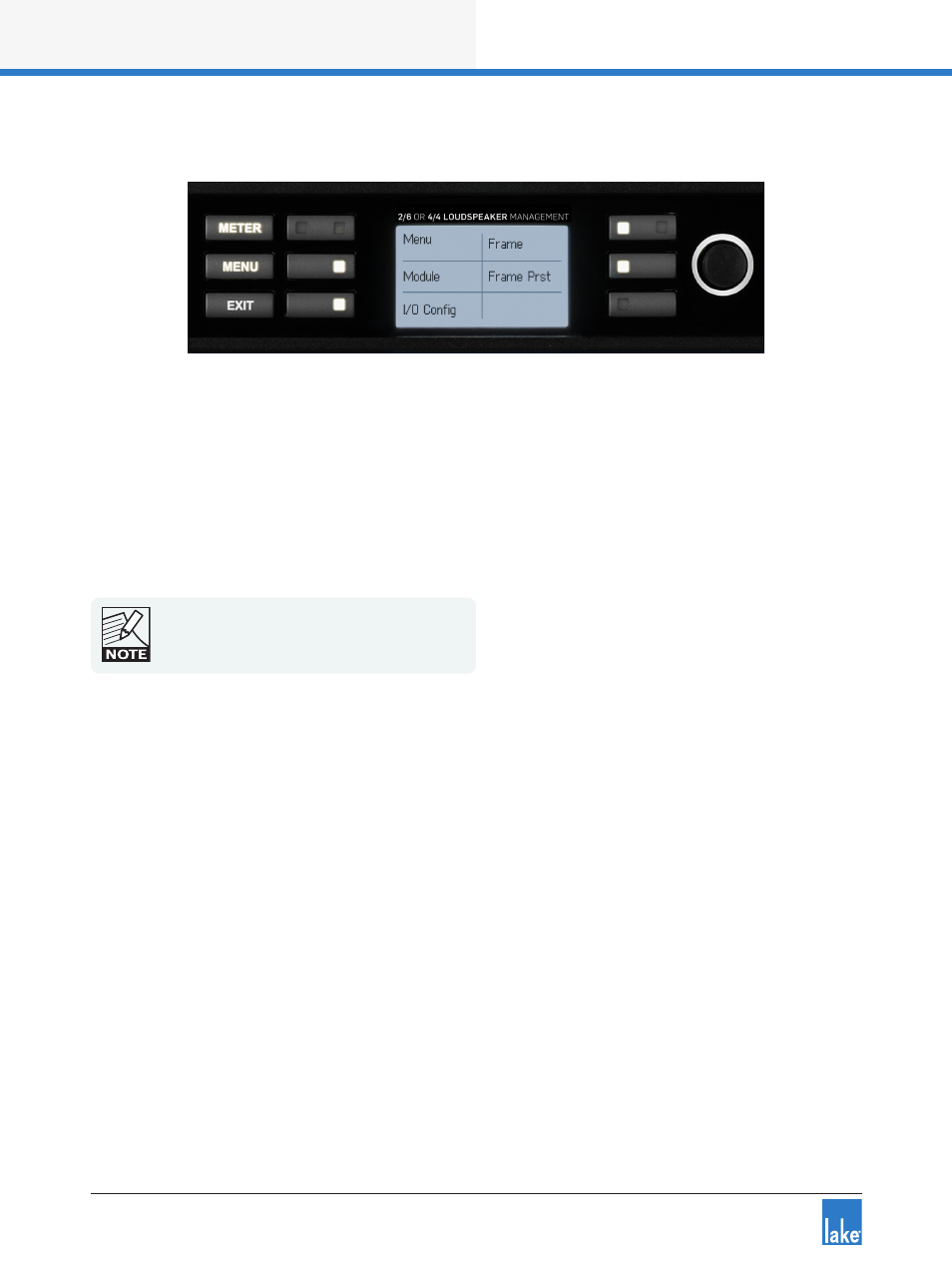

Figure 6-11: Menu Mode > Main Menu
Press the illuminated button adjacent to the required option to display an associated submenu. When
parameter level is reached, individual parameters may be selected for adjustment by pressing the adjacent
button. The selected parameter value/s are highlighted, and are adjustable using the rotary encoder.
A parameter may be adjusted simultaneously across multiple channels by selecting all values to be adjusted;
any current value offsets are retained. Some parameters default to multiple selection, with all inputs or
outputs adjusted simultaneously. Changes are effected in real-time and a stored without further confirma-
tion. Pressing EXIT returns to the previous menu level, automatically retaining any parameter changes.
All parameters are also editable via the Lake
Controller unless specified otherwise.
6.10.1.1 Parameters with Individual Values and Group Totals
The following parameters display two values:
▸ MODULE > GAIN
▸ MODULE > DELAY
▸ MODULE > LIMITERS > MAXRMS LEVEL
▸ MODULE > LIMITERS > MAXPEAK LEVEL
The Module parameter can be adjusted using the rotary encoder. The Group total (shown in brackets) is only
adjustable using the Groups function in the Lake Controller.
The Group total is the sum of the individual Module value plus any values for this parameter on all Groups to
which the Module is assigned. Please refer to the Lake Controller Operation Manual for further information
on Groups.
