28
Front Panel Interface
Lake LM Series Operation Manual Rev 1.2.8

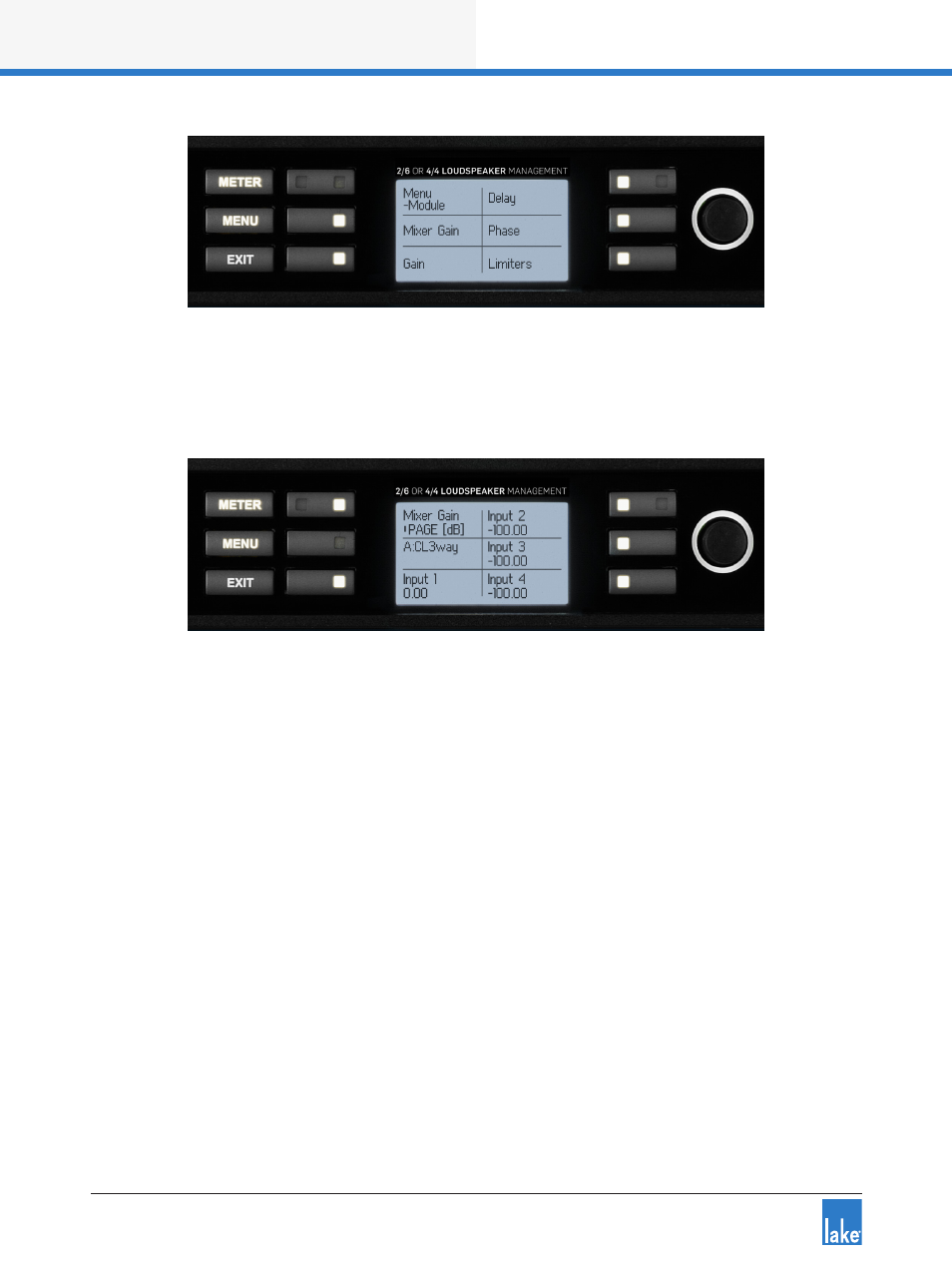

Figure 6-12: Module Submenu
6.10.2.1 Mixer Gain
MENU > MODULE > MIXER GAIN
Figure 6-13: Module Input Mixer Gain Edit Screen
The top left button labeled PAGE toggles between the input mixer gain settings for each Module in the
Frame. Press any other illuminated button to select a parameter for editing then use the rotary encoder to
make adjustments. Multiple parameters may be selected and adjusted together.
6.10.2.2 Gain
MENU > MODULE > GAIN
For frames where both Modules have four output channels or less, a detailed parameter screen as shown
in Figure 6-14 is displayed. Where Module A has five output channels or more, the combined summary edit
screen shown in Figure 6-15 is the only screen available.
