IOTA ICE-420-EM-A - Manual (Page 4)

Page 4
FLEX B
WHT/RED TBTS
*LAMP
*A.C./EMERGENCY LAMP
RED/WHT
RED
RED
RED
YELLOW
YEL
YEL
➀
➁
➂
SELECT PROPER VOLTAGE LEAD, CAP UNUSED LEAD
LAMP SELECTOR LEADS. REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER APPLICATION.
DO NOT MATE CONNECTOR UNTIL INSTALLATION
IS COMPLETE AND A.C. POWER IS SUPPLIED.
BLUE
BLUE
BLK (120V)
ORG (277V)
WHITE
BLUE
BLU/WHT SWITCHED OR
UNSWITCHED
LINE
WHITE
BLACK
UNSWITCHED
LINE
COMMON
TWO LAMP
A.C.
BALLAST
➀
VIOLET
VIOLET
➁
WHT/BLK
WHT/BLK
➂
2LRSB_2LEO_ICE420R
EMERGENCY
BALLAST
TWO LAMP RAPID START BALLAST WITH TWO LAMP EMERGENCY OPERATION
WHT/BLK
FLEX A
*LAMP
RED OR RED/BLK(+)
TEST ACCESSORY LEAD - REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER POLARITY WIRING.
➃
➃
FOR 120V INSTALLATION, CONNECT BLK/ORG TO BLK.
FOR 277V INSTALLATION, CAP BLK/ORG AND BLK SEPARATELY.
BLK/ORG
➄
➄
FLEX B
WHT/RED TBTS
LAMP *LAMP
*A.C./EMERGENCY LAMP
RED/WHT
RED
RED
RED
YELLOW
YEL
YEL
➀
➁
➂
SELECT PROPER VOLTAGE LEAD, CAP UNUSED LEAD
LAMP SELECTOR LEADS. REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER APPLICATION.
DO NOT MATE CONNECTOR UNTIL INSTALLATION
IS COMPLETE AND A.C. POWER IS SUPPLIED.
BLUE
BLUE
BLK (120V)
ORG (277V)
WHITE
BLUE
BLU/WHT SWITCHED OR
UNSWITCHED
LINE
WHITE
BLACK
UNSWITCHED
LINE
COMMON
TWO LAMP
A.C.
BALLAST
➀
VIOLET
VIOLET
➁
WHT/BLK
WHT/BLK
➂
TWO LAMP RAPID START BALLAST WITH ONE LAMP EMERGENCY OPERATION
2LRSB_1LEO_ICE420R
EMERGENCY
BALLAST
WHT/BLK
FLEX A RED OR RED/BLK(+)
TEST ACCESSORY LEAD - REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER POLARITY WIRING.
➃
➃
BLK/ORG
FOR 120V INSTALLATION, CONNECT BLK/ORG TO BLK.
FOR 277V INSTALLATION, CAP BLK/ORG AND BLK SEPARATELY.
➄
➄
FLEX B
WHT/RED TBTS
➀
➁
➂
SELECT PROPER VOLTAGE LEAD, CAP UNUSED LEAD
LAMP SELECTOR LEADS. REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER APPLICATION.
DO NOT MATE CONNECTOR UNTIL INSTALLATION
IS COMPLETE AND A.C. POWER IS SUPPLIED.
*LAMP
*A.C./EMERGENCY LAMP
RED
RED
BLUE
BLUE
BLK (120V)
ORG (277V)
WHITE
WHT/BLK
BLUE
BLU/WHT
YELLOW
RED/WHT
RED
SWITCHED OR
UNSWITCHED
LINE
WHITE
BLACK
UNSWITCHED
LINE
COMMON
ONE LAMP
A.C.
BALLAST
➀
VIOLET
VIOLET
➁
WHT/BLK
WHT/BLK
➂
EMERGENCY
BALLAST
1LRSB_ICE420R
ONE LAMP RAPID START BALLAST
FLEX A RED OR RED/BLK(+)
TEST ACCESSORY LEAD - REFER TO INSTALLATION
INSTRUCTIONS FOR PROPER POLARITY WIRING.
➃
➃
BLK/ORG
➄
FOR 120V INSTALLATION, CONNECT BLK/ORG TO BLK.
FOR 277V INSTALLATION, CAP BLK/ORG AND BLK SEPARATELY.
➄

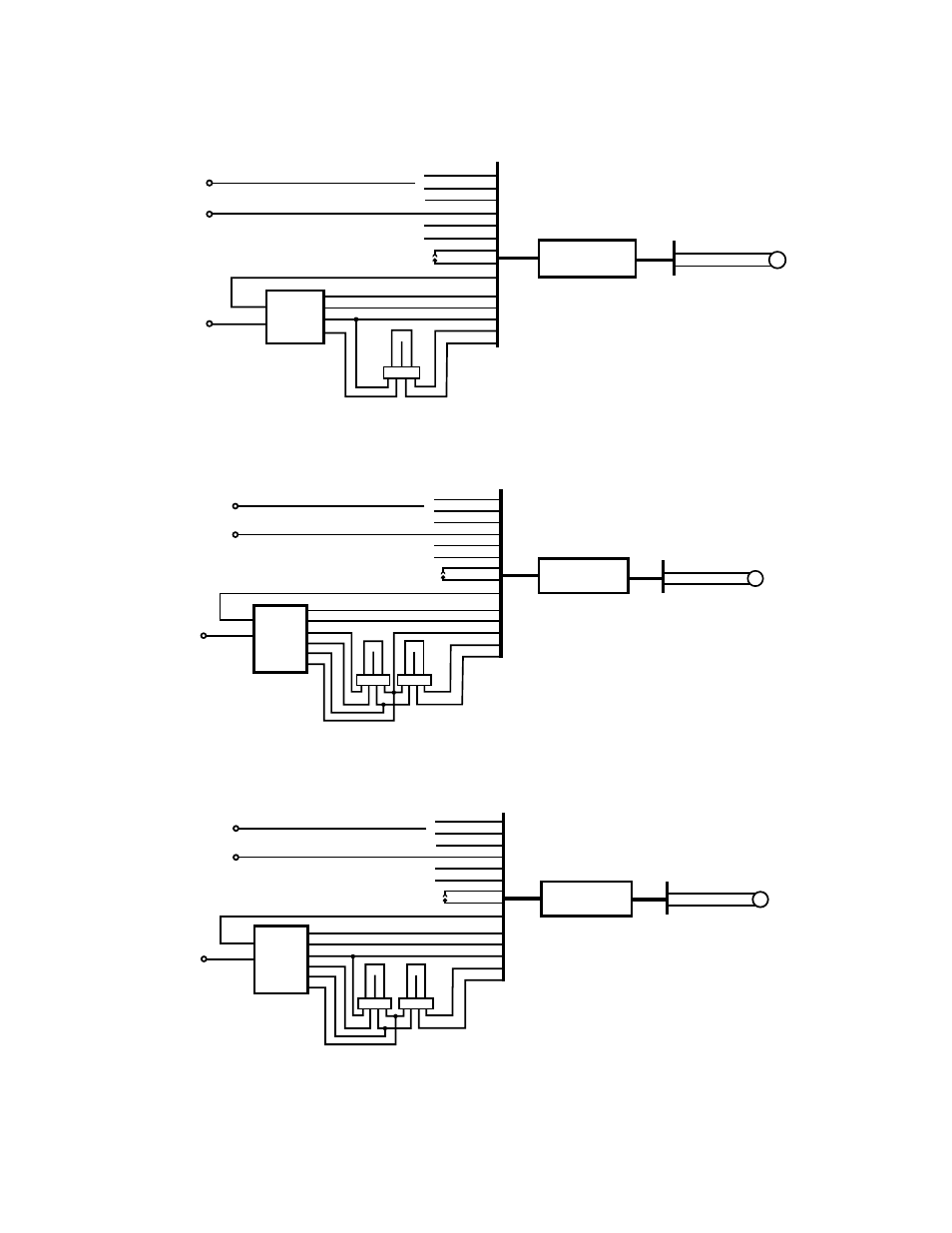

TYPICAL WIRING DIAGRAMS
Use in conjunction with Rapid Start ballasts and 4 pin lamps only
Rev. 071513
68142-100
1. ONE LAMP RAPID START BALLAST
2. TWO LAMP RAPID START BALLAST WITH ONE LAMP EMERGENCY OPERATION
3. TWO LAMP RAPID START BALLAST WITH TWO LAMP EMERGENCY OPERATION
ICE-420-EM-A
ICE-420-EM-A
ICE-420-EM-A
