IOTA I-320 - Manual (Page 3)

Page 3

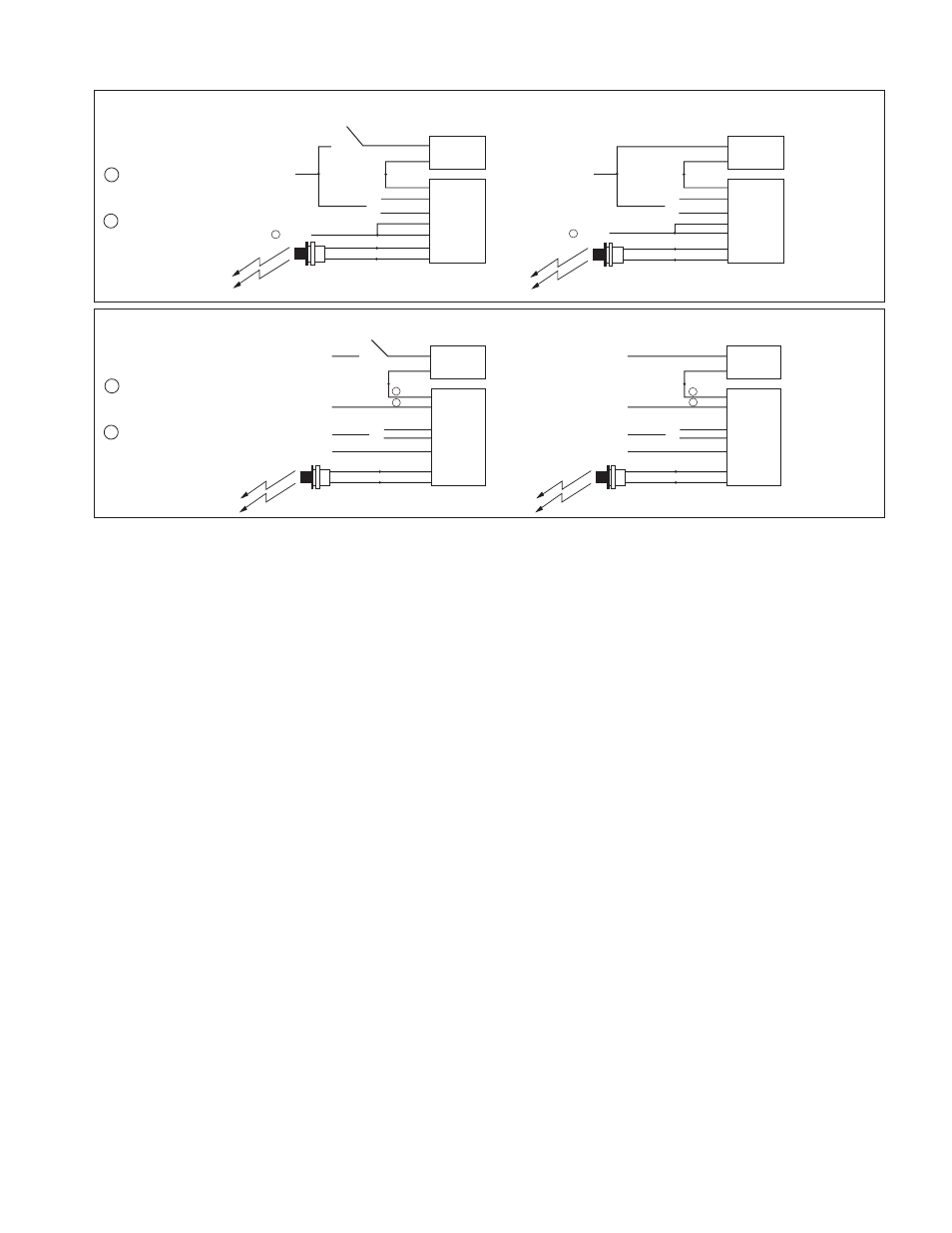

6. BALLAST WIRING BLOCK DIAGRAM
Illustration 3
7. LABELS
Attach the appropriate labels adjacent to the TBTS. Annotate Re-lamping label for lamp type and wattage. The
Caution and the Re-lamping labels must be on the fixture in a readily visible location to anyone attempting to ser-
vice the fixture.
8. COMPLETING INSTALLATION
When the installation is complete, switch the A.C. power on and join the I-320 unit connector.
OPERATION
Normal Mode – A.C. power is present. The A.C. ballast operates the fluorescent lamp(s) as intended. The I-320 is in the
standby charging mode. The TBTS will be lit providing a visual indication that the battery is being charged.
Emergency Mode – The A.C. power fails. The I-320 senses the A.C. power failure and automatically switches to the
Emergency Mode. One lamp is illuminated, at reduced output, for a minimum of 90 minutes. When the A.C.
power is restored, the I-320 switches the system back to the Normal Mode and resumes battery charging. See page 1
of the Instruction Manual.
TESTING & MAINTENANCE
Pressing and holding the TBTS for a minimum of five seconds turns off the light on the TBTS and forces the unit into
emergency mode, interrupting power to the designated A.C. ballast. The emergency lamp is now being lit by the I-320 unit.
After releasing the TBTS, the fixture returns to normal operation after a momentary delay. To simulate a “BLACK OUT” use
the circuit breaker to turn off A.C. power.
Initial Testing – Allow the unit to charge approximately 1 hour, then press and hold the TBTS for a minimum of five sec-
onds to conduct a short discharge test. Allow a 24 hour charge before conducting a one hour test.
The
I-320 is a maintenance free unit, however, periodic inspection and testing is required. NFPA 101, Life Safety Code,
outlines the following schedule:
Monthly – Insure that the TBTS is illuminated. Conduct a 30 second discharge test by depressing the TBTS. One lamp
should operate at reduced output.
Annually – Insure that the TBTS is illuminated. Conduct a full 1
1 /
2
hour discharge test. The unit should operate as intended
for the duration of the test.
“Written records of testing shall be kept by the owner for inspection by the authority having jurisdiction.”
SERVICING SHOULD BE PERFORMED BY QUALIFIED PERSONNEL.
Consult Customer Service or visit www.iotaengineering.com for current warranty information.
SEPARATE
BRANCH
CIRCUIT:
WHT/BLK
BLACK
A.C. BALLAST
HOT A.C. LINE
WHT
WHITE
(120V) BLK
(277V) ORG
COMMON
➀ Select proper voltage lead. Cap unused lead.
➀
WHT/BLK
WHT/RED WHT
(+) RED/BLK
OR
RED W/TAG
(+) RED TBTS
EMERGENCY
BALLAST
BLACK
A.C. BALLAST
HOT A.C. LINE
WHT
WHITE
(120V) BLK
(277V) ORG
COMMON
➀ Select proper voltage lead. Cap unused lead.
➀
WHT/BLK
WALL SWITCH
WHT/RED WHT
(+) RED/BLK
OR
RED W/TAG
(+) RED
TBTS
WHT/BLK
EMERGENCY
BALLAST
Use either WHT/BLK lead for wiring to common.
2
2 Use either WHT/BLK lead for wiring to common.
2
2
B. Unswitched Fixture
WHT/BLK
BLACK
A.C. BALLAST
WHT
WHITE
(120V) BLK
(277V) ORG
A.C. BALLAST
CIRCUIT
COMMON
➀ Select proper voltage lead. Cap unused lead.
➀
WHT/BLK
WHT/RED WHT
(+) RED/BLK
OR
RED W/TAG
(+) RED TBTS
EMERGENCY
BALLAST
A.C. BALLAST
CIRCUIT
HOT
EM CIRCUIT
COMMON
EM CIRCUIT
HOT
WHT/BLK
BLACK
A.C. BALLAST
WHT
WHITE
(120V) BLK
(277V) ORG
A.C. BALLAST
CIRCUIT
COMMON
➀ Select proper voltage lead. Cap unused lead.
➀
WHT/BLK
WHT/RED WHT
(+) RED/BLK
OR
RED W/TAG
(+) RED TBTS
EMERGENCY
BALLAST
A.C. BALLAST
CIRCUIT
HOT
EM CIRCUIT
COMMON
EM CIRCUIT
HOT
WALL SWITCH
Use either WHT/BLK lead for wiring to common.
2
2 Use either WHT/BLK lead for wiring to common.
2
2
2 2
C. Switched Fixture D. Unswitched Fixture
A. Switched Fixture SAME
BRANCH
CIRCUIT:
Select proper voltage
lead. Cap unused lead.
Use either WHT/BLK
lead for wiring to
common.
1
2
I-320 I-320
I-320 I-320
Select proper voltage
lead. Cap unused lead.
Use either WHT/BLK
lead for wiring to
common.
1
2
