Page 31
The default RC Max Distance Setting programmed into the FY-41AP Lite is 4000
meters. You can adjust this parameter via ―FYGCS 5.11 for 41&DOS‖ software. After

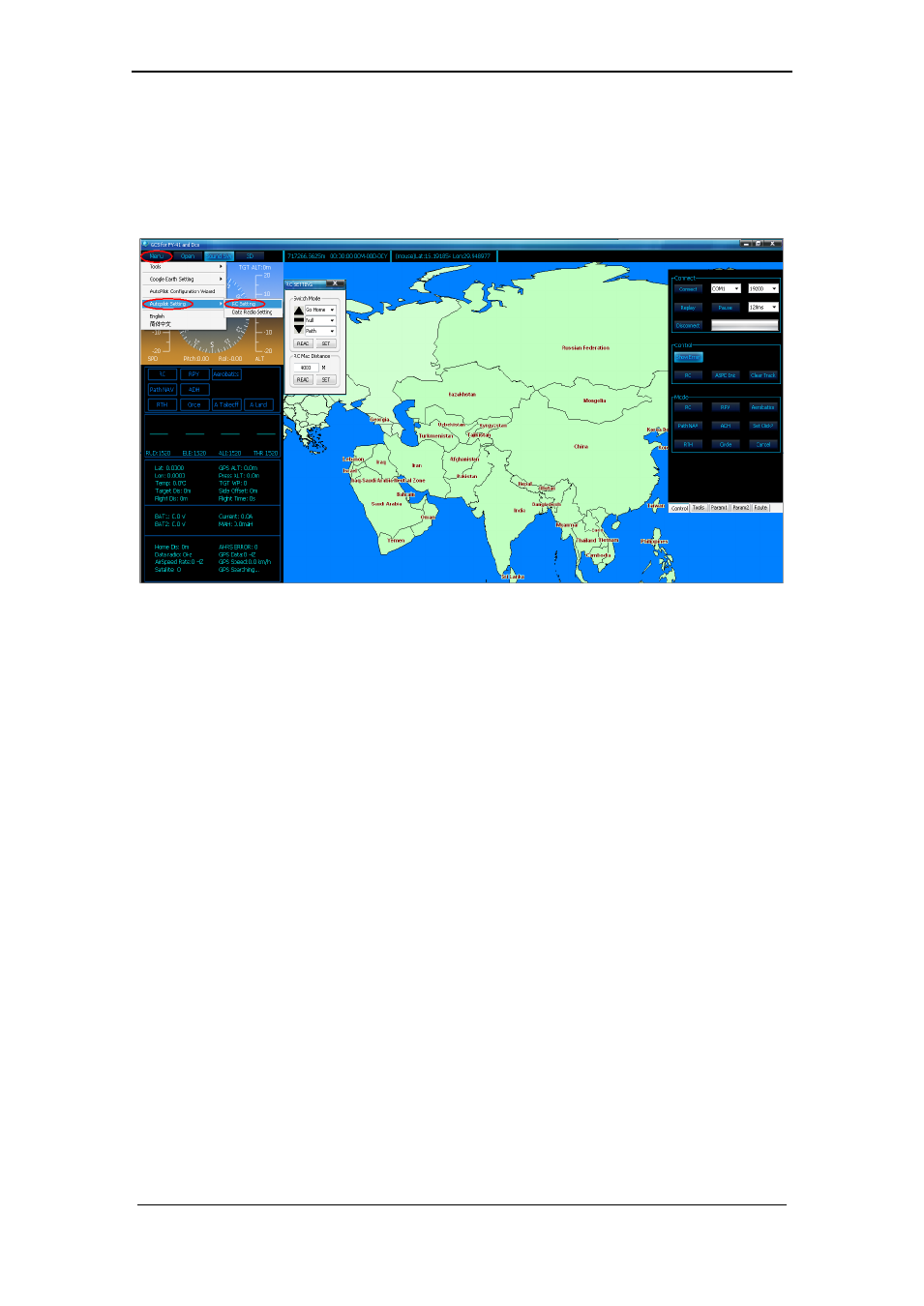

FY-41AP Lite connect to the GCS software successfully, you can select ―Menu->Autopilot
Setting->RC Setting ‖ to finish the RC Max Distance Setting.
10.3 Circling Radius Setting
The FY41AP Lite can fly over a set GPS point upon activation of Auto Circling Mode
via switch SW-2.
The default circling radius is 80 meters. You can adjust this circling radius using the
Setting Software function. Press ‗Set‘ button to confirm and save your updated circling
radius.
10.4 The Altitude Of Return To Launch Instructions
When activated in this mode, if the current altitude is greater than 50meters, the
FY-41AP Lite will automatically fly the plane back to the home point. Then after the aircraft
back to the target point, if the altitude greater than 100 meters , the plane will down to
100 meters while circling .For the FY-41AP Lite , there is 50 meters protection altitude for
return home. If the current altitude below 50 meters when activate into RTL, the aircraft
will climb to 50 meters to return.
