Introduction
10
QA-805 and W2CM Interface Module
Cooling Assembly

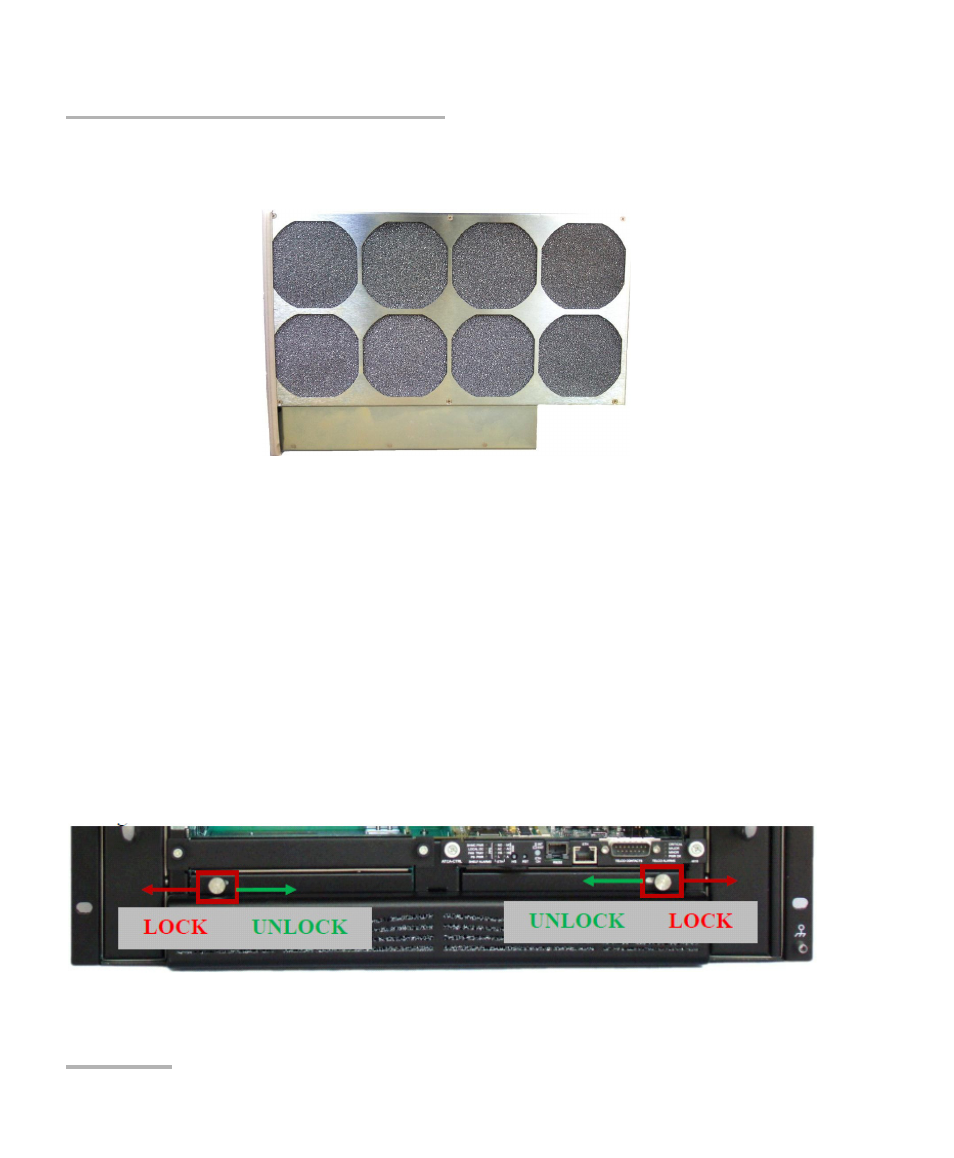

The following depicts the fan tray with air filter frame:
To remove the fan tray:
1. Loosen the locking mechanism and move the head to the left or right
(away from the fan tray).
2. Hold the head while pulling out the fan tray using the handle.
To insert the fan tray:
1. Loosen the locking mechanism and move the head to the left or right
(away from the fan tray).
2. Hold the head while inserting the fan tray using the handle.
3. Tighten the locking mechanism.
The following depicts the fan tray locking mechanism:
