Keypad Description
Keypad Description

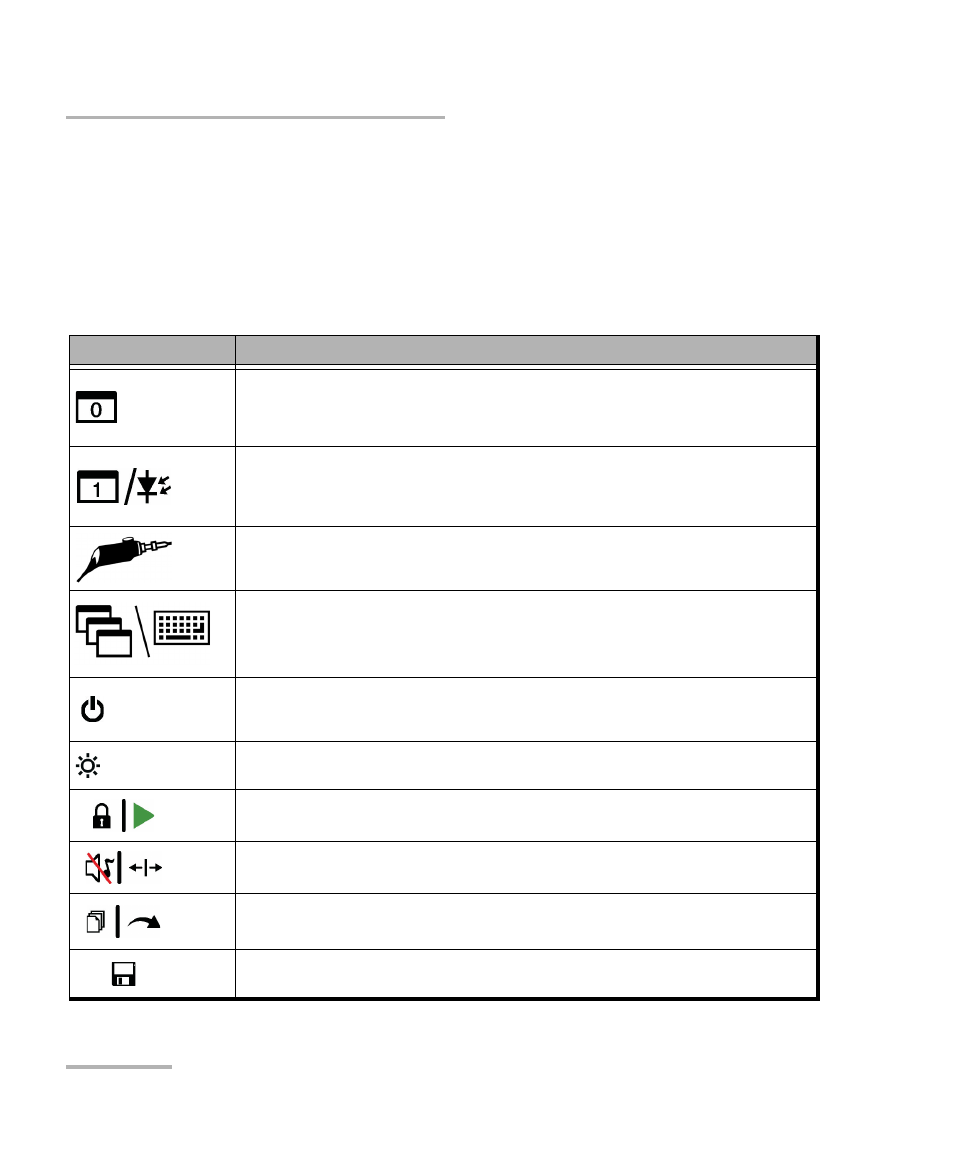

The keypad of your unit gives you access to various functions at all times.
The table below shows an overview of their purpose.
Note: The function of certain buttons vary with the applications.
Button Meaning
First shortcut button. Starts the associated application or the
on-screen (virtual) keyboard (see Configuring the Shortcut Buttons
on page 59).
Second shortcut button. Starts the associated application, the
on-screen keyboard or the built-in power meter application
(see Configuring the Shortcut Buttons on page 59).
Starts the fiber probe application.

Enables you to switch from one task to another.

Displays shortcuts to the on-screen keyboard and to the tool to
take screen captures.
Turns on and off your unit.
For more information, see Turning On or Off the Unit on page 28.
Adjusts screen brightness.
Lock/Start acquisition/F1 button (depends on application).
Mute/Move markers/F2 button (depends on application).
Report/Next  or trace/F3 button (depends on application).
Save/F4 button (depends on application).
