Led panel description – EXFO FTB-200 v2 Compact Modular Platform User Manual
Page 14
Introducing the FTB-200 v2 Compact Modular Platform
4
FTB-200 v2

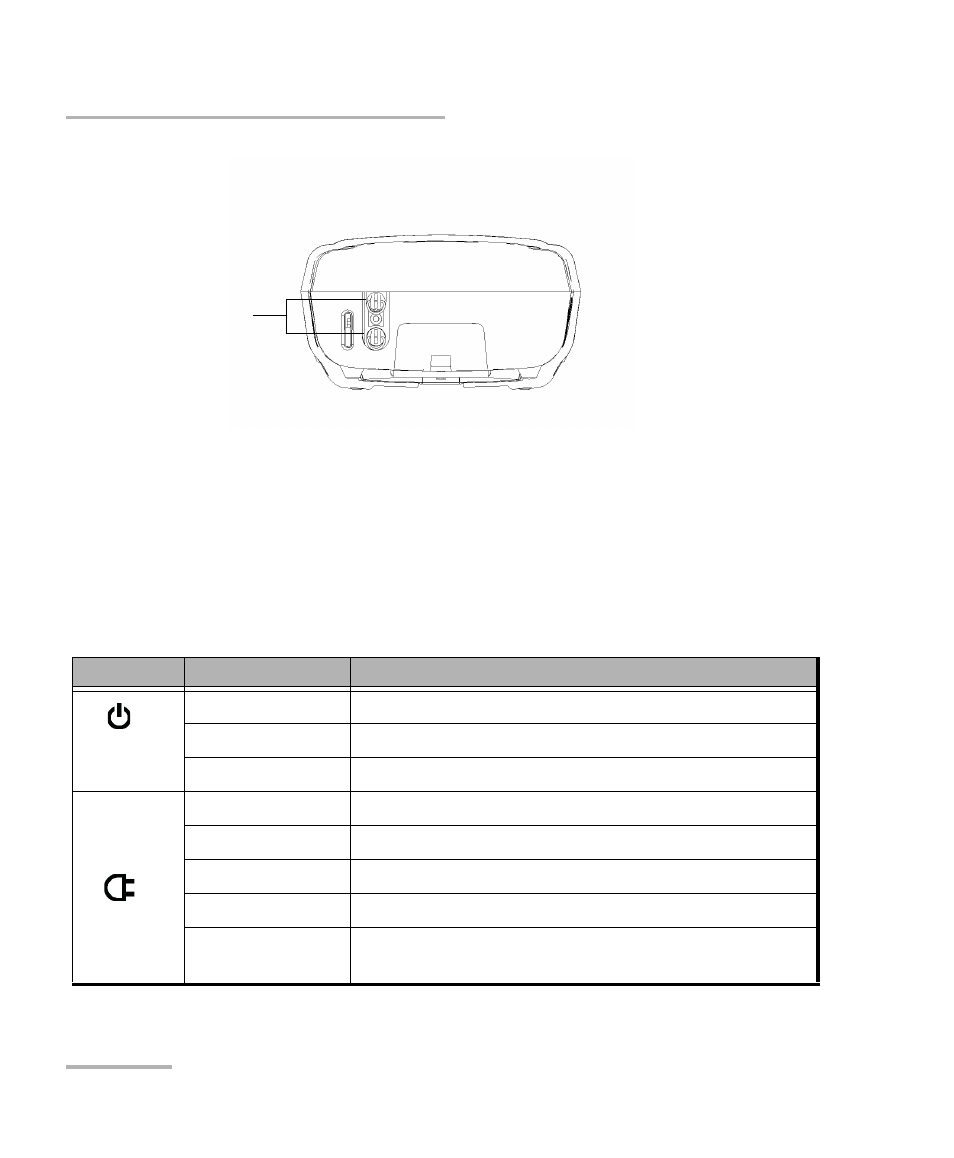

LED Panel Description
LED Panel Description
The LED panel located on the front of the unit provides you with the status
of your unit.
Note: The function of certain LEDs vary with the applications.
LED
Status
Meaning
Green
Unit is on.
Green, blinking
Unit is in Standby mode.
Off
Unit is off or in Hibernation mode.
Green
Battery is fully charged.
Green, blinking
Battery is charging.
Yellow
Unit is not powered by AC and battery is low.
Red
No battery in the unit or battery error.
Off
Unit is off or unit is not powered by AC and battery
level is above the “low-battery threshold”.
Bottom panel
Retaining screws
