Upgrading The Computer
6 - 12 Upgrading the Hard Disk Drive(s)
6
Removing the Hard Disk from the Secondary HDD Bay
Note that only Model B is pictured, however the procedure for removing the primary
hard disk from Model A is the same.
1. Turn off the computer, and turn it over and remove the battery and component bay
cover (see pages
6 - 4 & 6 - 6 ).
2. Remove screws & from the secondary HDD assembly.
3. Slide the HDD assembly in the direction of arrow .
4. Lift the HDD assembly out of the computer .

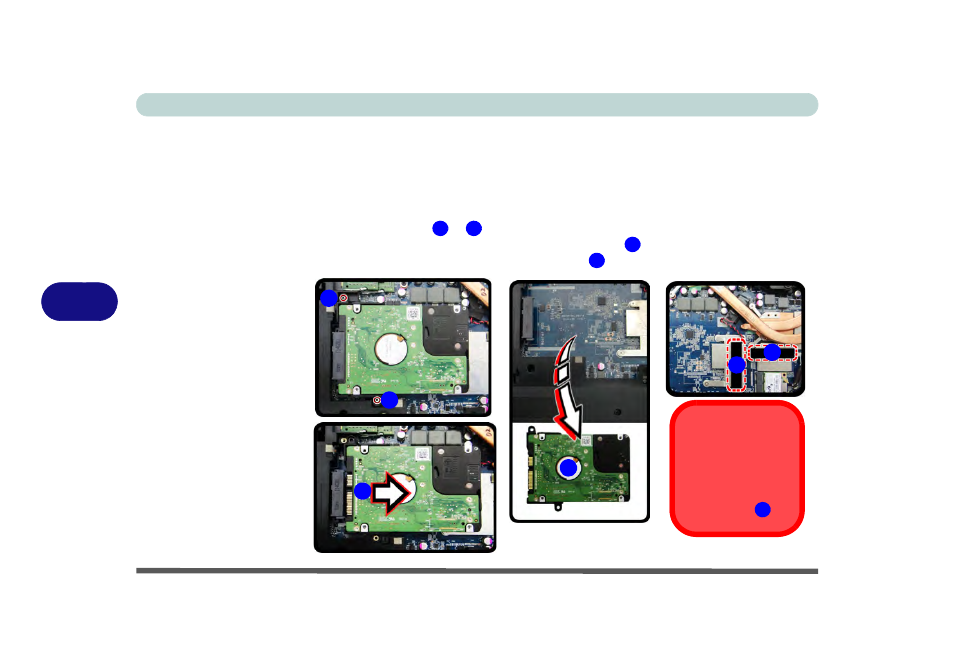

Figure 6 - 7
Secondary HDD
Assembly Screws &
Removal
1 2
3
4
2
1
3

Heat Sink Warning
When removing the
HDD assembly try to
avoid contact with the
heat sink area
. 5
4
5
5
