6 - 10 Upgrading the Hard Disk Drive(s)
6
Removing the Hard Disk from the Primary HDD Bay
Note that only Model B is pictured, however the procedure for removing the primary
hard disk from Model A is the same.
1. Turn off the computer, and turn it over and remove the battery and component bay
cover (see pages
6 - 4 & 6 - 6 ).
2. Lift up the protective rubber on the insulation plate at points & .
3. Slide the HDD assembly in the direction of arrow .
4. Lift the HDD assembly out of the computer .

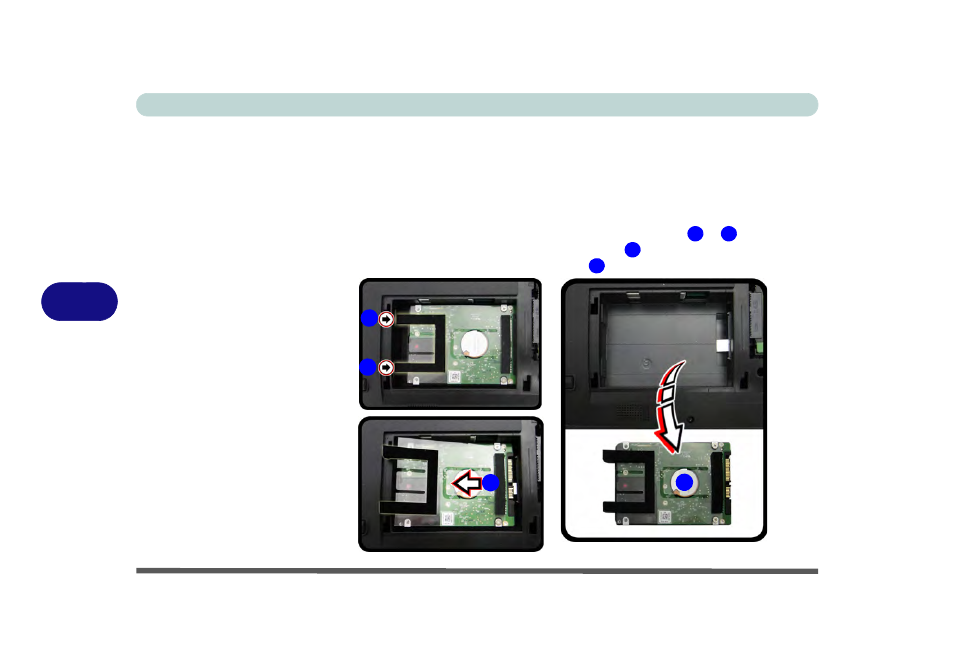

Figure 6 - 5
Primary HDD
Assembly Removal
1 2
3
4
2
1
3 4
