14 - System Map: Front & Left Views
Concise User’s Guide
English
System Map: Front & Left Views

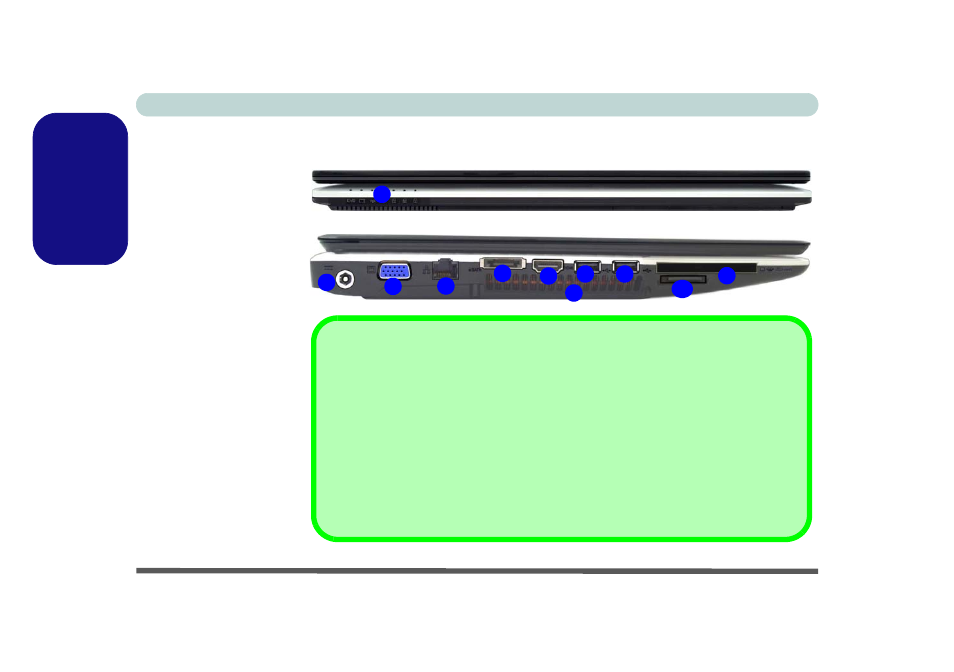

Figure 5
Front & Left Views
1. LED Indicators
2. DC-In Jack
3. External Monitor Port
4. RJ-45 LAN Jack
5. eSATA Port
6. HDMI-Out Port
7. Vent
8. 2 * USB 2.0 Ports
9. ExpressCard/54(34)
Slot
10. 7-in-1 Card Reader
2
5
4
1
6
3
7
8 9
10
8
7-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /
MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter) /
Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
eSATA Port
Note that the Intel Matrix Storage driver is required to enable the eSATA port (see “eSA-
TA Port Support” on page 34 ).
