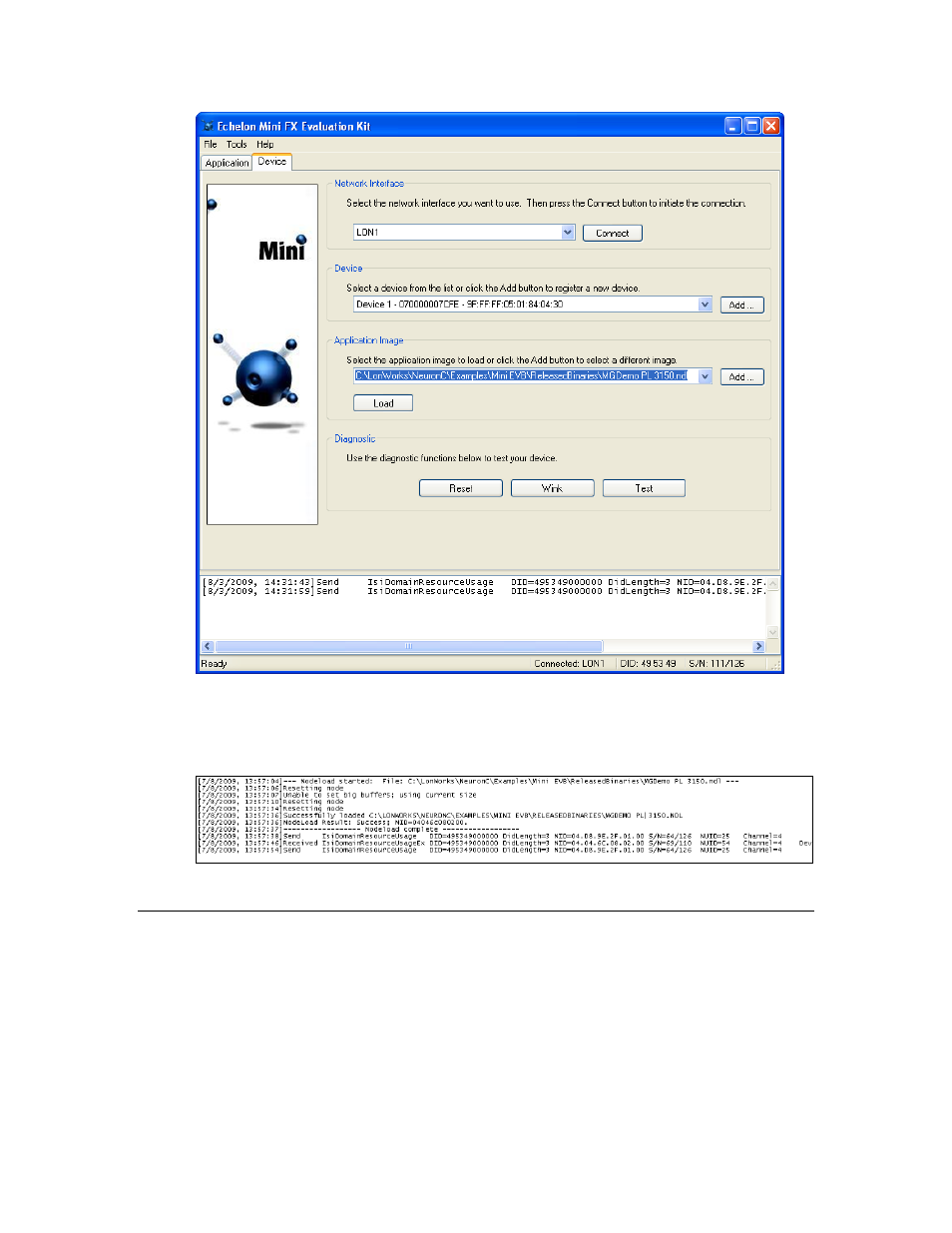

Figure 1.5 Mini FX Application—Application Image Selected
11. Click Load to load the selected Neuron application image into the PL 3150/PL 3170
EVB. The Status box informs you when the application image has been successfully
loaded into the device, and also informs you of any load errors.
Figure 1.6 Mini FX Application—Status Box
Using the Mini FX/PL Example Applications
You can use the Neuron C example applications to demonstrate how to use Neuron C to
interface with I/O hardware, how to use network variables in Neuron C to communicate
on a L
ON W ORKS network, and how to use the ISI library to install devices on a
L ON W ORKS network.
You can load the Neuron C example applications into up to 32 evaluation boards on a
L
ON W ORKS network (the ISI protocol supports up to 200 devices, but the version used in
the evaluation boards supports up to 32), connect the evaluation boards via the ISI
protocol, and then use the applications to exchange data through input and output
